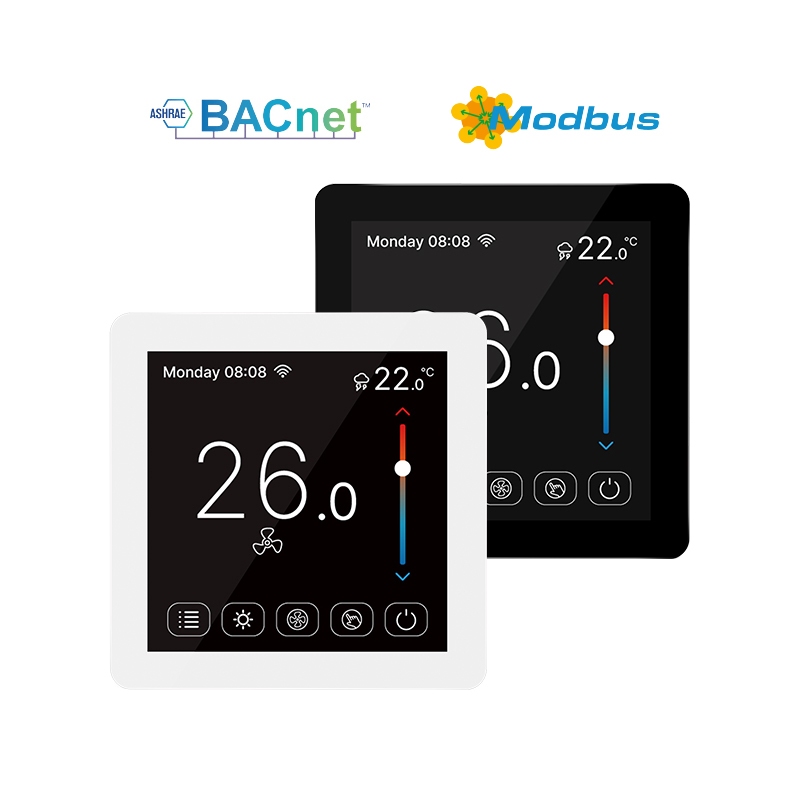

The FT-CS08 is a professional HVAC controller designed for large-scale commercial integration, available in either BACnet MS/TP or Modbus RTU communication versions. It prioritizes network stability and data transparency, allowing facility managers to monitor and control multi-zone environments from a centralized Building Management System (BMS).
The FT-CS08 represents the next generation of building climate control. Designed with an ultra-slim profile and a vivid capacitive touchscreen, it offers a premium user interface while delivering the 0-10V modulating precision required for modern high-efficiency FCU systems.
The FT-CS08 provides exceptional flexibility for building automation. Depending on your project requirements, it can be configured with either BACnet MS/TP or Modbus RTU communication protocols. This ensures reliable integration with diverse Building Management Systems (BMS), allowing facility managers to monitor and control HVAC units with precision.
By utilizing the optional Occupancy Sensor and EC Motor support, this controller helps buildings meet strict energy-saving standards (such as LEED or BREEAM). The intuitive logic automatically adjusts setpoints based on room occupancy, ensuring comfort for occupants while eliminating energy waste in vacant areas.

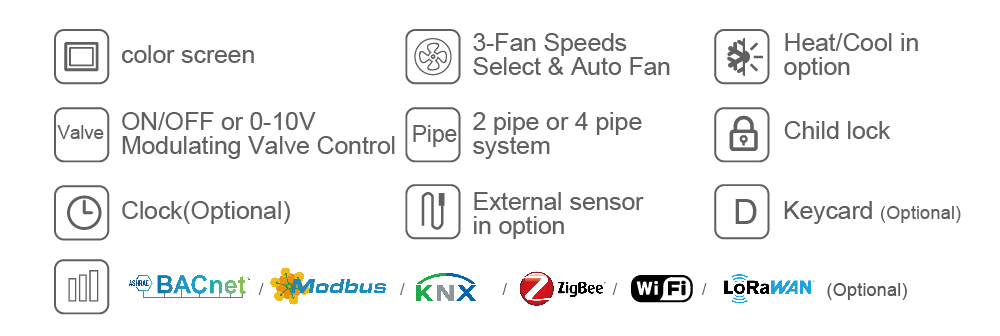

Global Protocol Integration: Fully compatible with BACnet MS/TP and Modbus RTU, making it a "plug-and-play" terminal for any modern Building Management System (BMS).
Energy-Saving 0-10V Control: Specifically engineered to control EC fans and modulating valves via 0-10V signals, reducing energy waste and ensuring ultra-quiet operation.

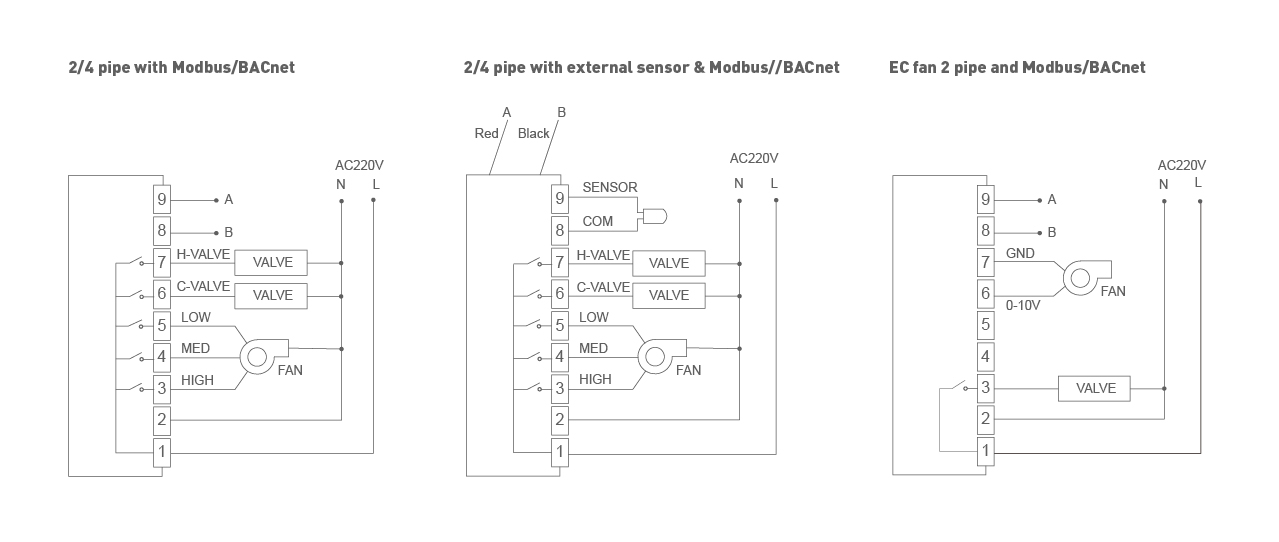

Versatile System Support: Easily switch between 2-pipe and 4-pipe heating/cooling modes.
Smart Life Ecosystem: Supports remote monitoring via mobile app and voice control through Amazon Alexa and Google Home.
Hospitality Optimization: Features dedicated inputs for Keycard (Occupancy) and external sensors, perfect for hotel energy management and cost reduction.
Our FT-CS08 controller is engineered to meet the highest international standards for safety, reliability, and environmental responsibility:
Safety & EMC: Fully compliant with CE (RED/LVD/EMC), UKCA, FCC, and ETL Listed standards.
Environmental: Certified by RoHS and REACH, ensuring lead-free and eco-friendly manufacturing.
Quality Management: Produced in an ISO 9001:2015 and ISO 14001:2015 certified facility.
Explore more professional FCU Thermostats for your project.
| Display | High-Definition Capacitive Color Touchscreen |
| Communication | RS485 (Modbus RTU / BACnet MS/TP), KNX, Zigbee, LoRaWAN or Wi-Fi (Tuya) Optional |
| Power Supply | AC24V or AC85-260V (50/60Hz) |

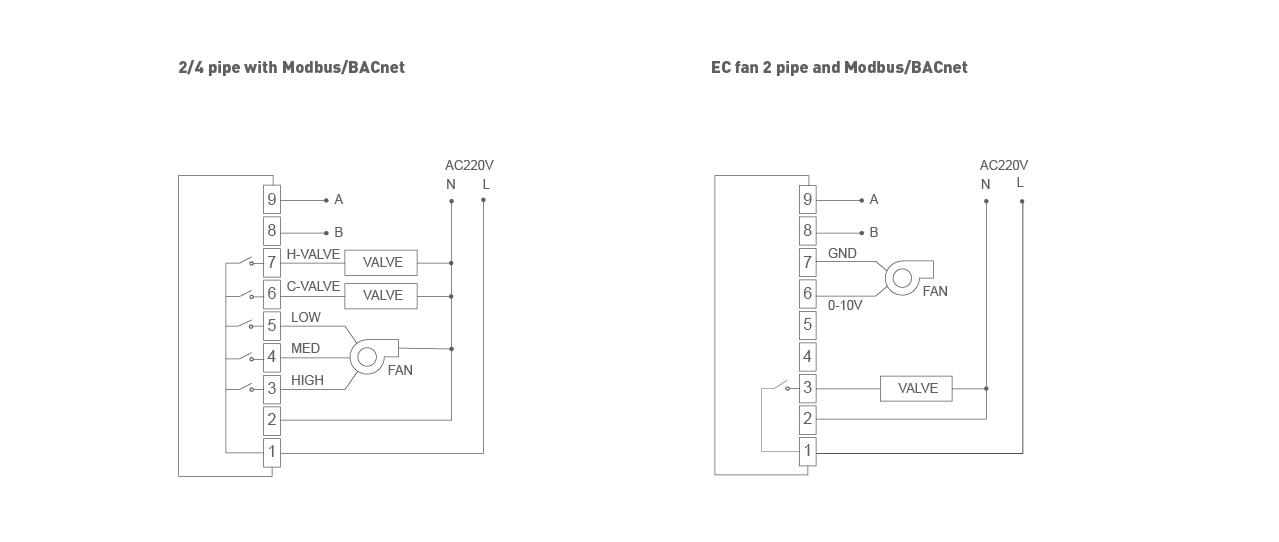

| Pipe | Support 2-Pipe / 4-Pipe Fan Coil Units |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | 3-Speed (Relay) / Variable Speed (0-10V EC Fan) |
| Modulating Control | 0-10V Signal for Proportional Valve & EC Fan |
| Programmability | 7 Days, 4 Periods & BMS Centralized Control |
| Optional Function | Occupancy (Keycard), External Sensor, Remote Probe |
| Protection Class | IP20 |

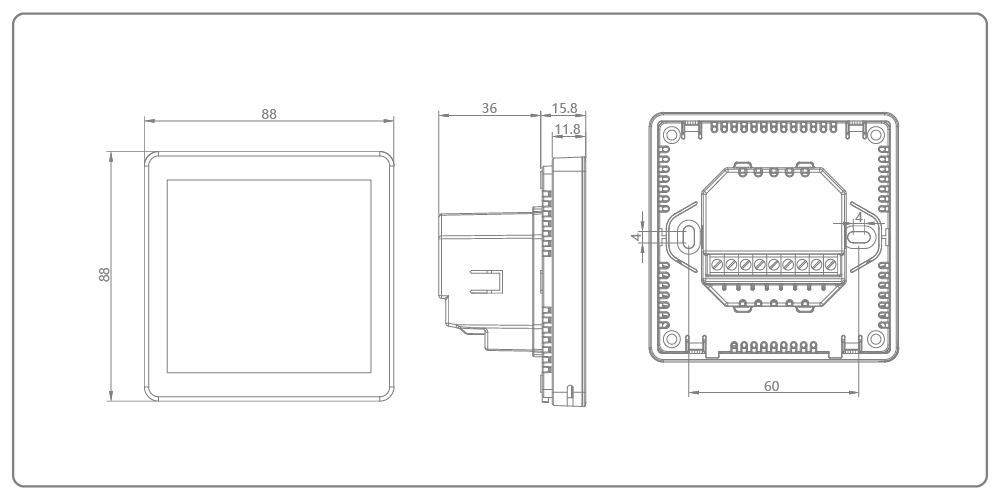

| Thermostat Dimension | 86X86X15.35mm(Ultra-slim profile) |

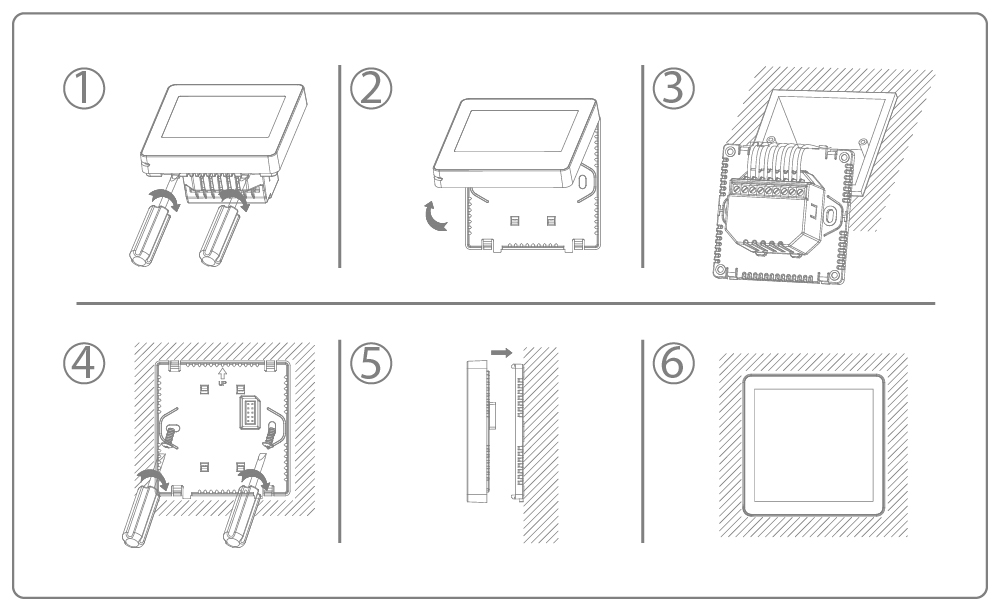

| Installation | Fits Standard 86mm x 86mm / European 60mm Round Box |
| Material | ABS+PC (Rohs certificated) |
| System Compatibility | 2-Pipe/4-Pipe FCU Systems; Underfloor Heating & Fan Coil 2-in-1 (Optional) |
| Certificate | CE (RED/EMC/LVD), UKCA, FCC, ETL Listed, RoHS, REACH, ISO9001:2015, ISO14001:2015 |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
A: Yes. Since 2003, E-Top (ETOP) has been a premier OEM/ODM manufacturer specializing in high-end HVAC controls. Our FT-CS08 series is specifically engineered for Building Automation Systems (BMS), providing professional-grade integration for commercial projects worldwide.
A: The FT-CS08 is designed for versatile system integration, available in either BACnet MS/TP or Modbus RTU communication versions. It allows for seamless "plug-and-play" connectivity with major BMS platforms such as Johnson Controls, Honeywell, and Schneider Electric, supporting both 0-10V modulating valves and EC fan motors.
A: Absolutely. We offer comprehensive OEM/ODM services. For orders over 500 units, we provide free logo printing (Private Labeling). Additionally, we can customize the LCD user interface and control logic to meet specific project requirements or brand aesthetics.
A: The FT-CS08 features Energy-Centric Design, supporting 0-10V DC EC motor control and optional Occupancy Sensors (Keycard integration). By optimizing fan speed and adjusting setpoints based on real-time room occupancy, it significantly reduces energy consumption in hotels and offices.
A: Our products are built to global standards. E-Top is an ISO 9001:2015 and ISO 14001:2015 certified factory. The FT-CS08 series carries ETL Listed, FCC, CE (RED/EMC/LVD), UKCA, and RoHS certifications, ensuring full compliance for North American, European, and UK markets.
A: We ensure project timelines are met with rapid fulfillment: Samples within 3 working days and mass production in approximately 25 days. Our streamlined supply chain ensures reliability for large-scale commercial HVAC deployments.
A: Yes. While prioritizing BMS wired communication, we offer optional WiFi modules compatible with the Smart Life App. This allows for hybrid control—centralized management via BACnet/Modbus and remote adjustment via smartphone or Voice Control (Alexa/Google Home).

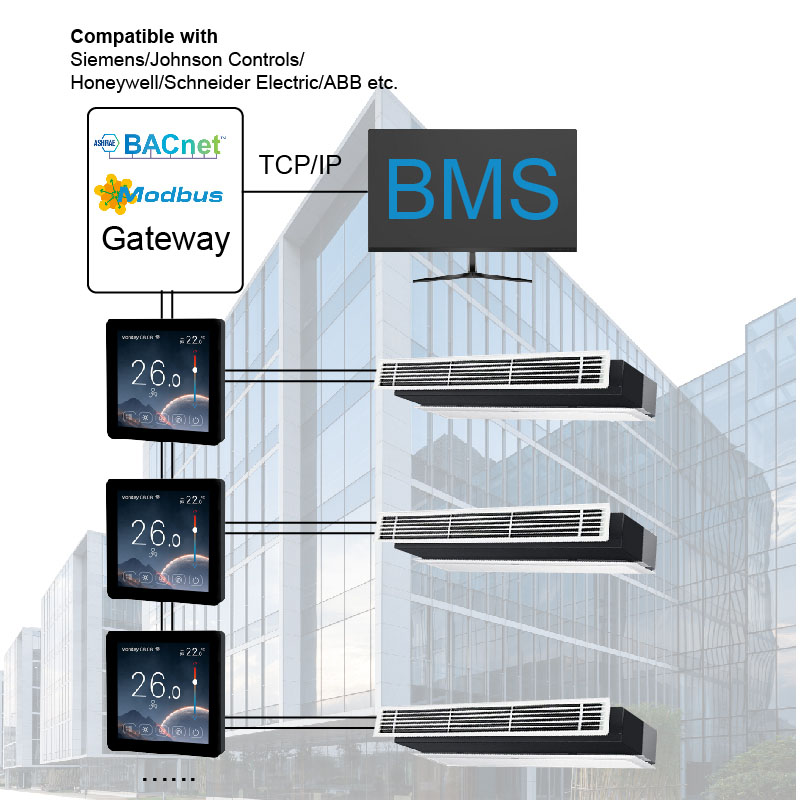

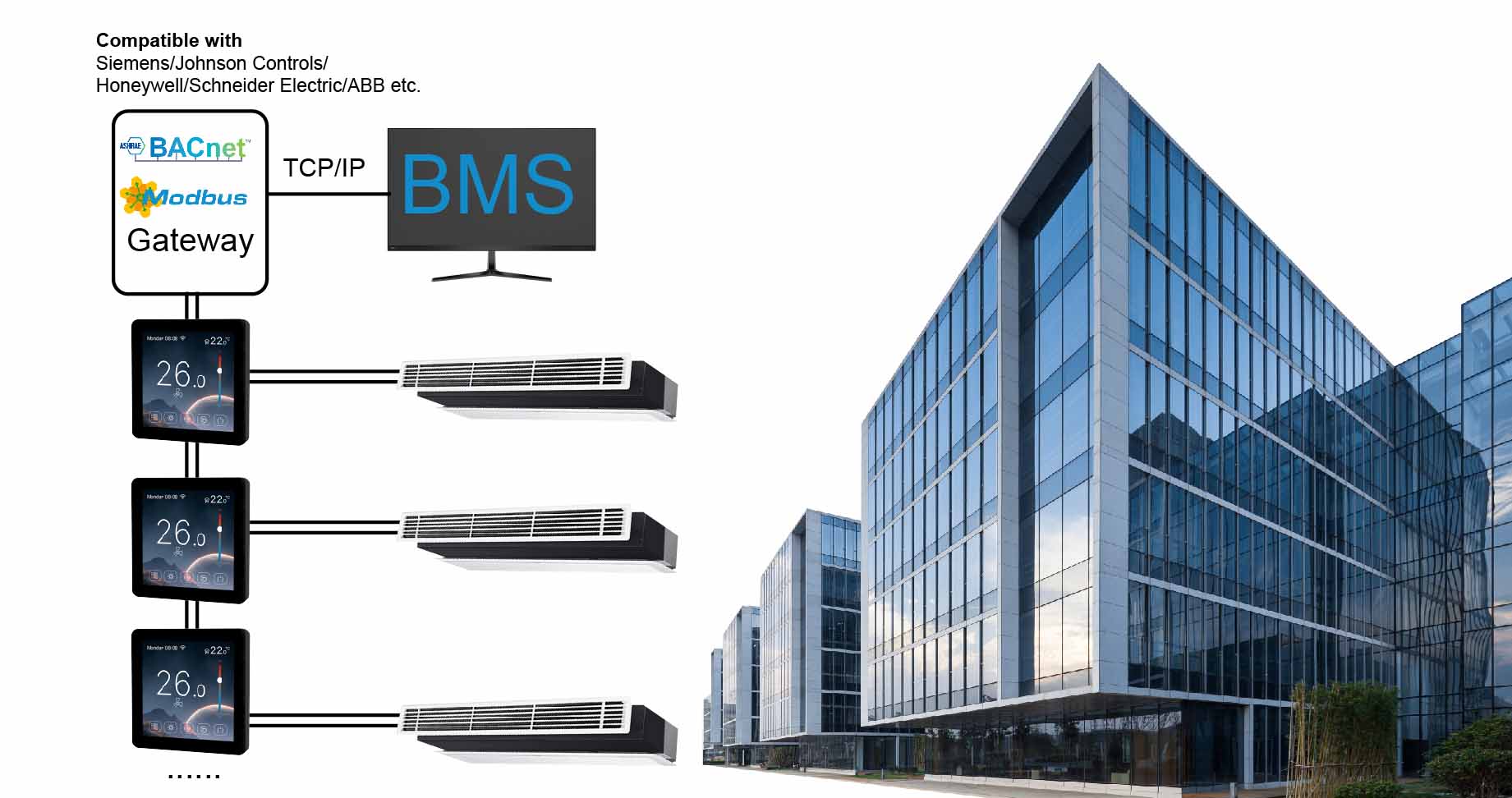

A: For premium hospitality projects, the FT-CS08 offers the essential stability required for large-scale networking. While it provides the flexibility to be configured with either BACnet MS/TP or Modbus RTU depending on your BMS requirements, the BACnet version is specifically optimized for complex building automation. By utilizing a daisy-chain RS485 network, the FT-CS08 allows for reliable, long-distance monitoring of hundreds of rooms. This makes it a top-tier choice for BACnet MS/TP Thermostats in luxury hotels where seamless interoperability with systems like Johnson Controls or Siemens is paramount.
