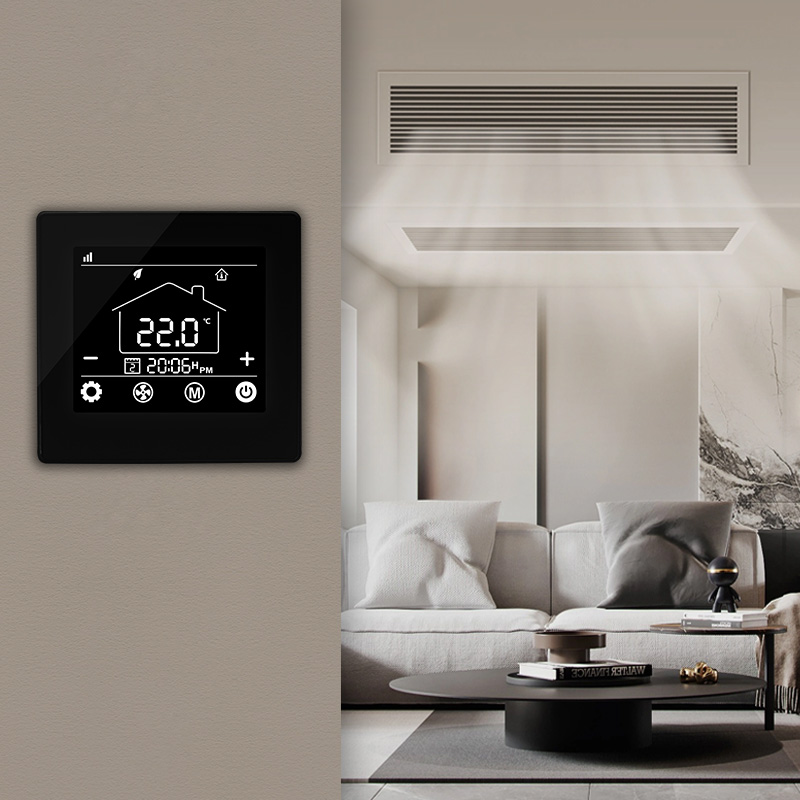

This digital programmable heating and cooling FCU thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
This digital programmable heating and cooling FCU thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications. It detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature. In the event of a deviation, the heating valve is opened in heating mode, and the cooling valve is opened for cooling mode. At the same time, the connected fan is activated depending on the control deviation and the set configuration. A connectable remote sensor can be used either for detecting the room temperature or as a changeover sensor in 2-pipe systems.
Please Note: The FT-09 FCU thermostat utilizes a high-reliability relay module with a maximum of 9 terminals. Due to terminal capacity, specific terminal assignments depend on your selected configuration (e.g., Modbus vs. BACnet, or 3-speed vs. EC fan). Please choose the wiring scheme that aligns with your specific project requirements.
Our FT-09 controller is engineered to meet the highest international standards for safety, reliability, and environmental responsibility:
Safety & EMC: Fully compliant with CE (RED/LVD/EMC), UKCA, FCC, and ETL Listed standards.
Environmental: Certified by RoHS and REACH, ensuring lead-free and eco-friendly manufacturing.
Quality Management: Produced in an ISO 9001:2015 and ISO 14001:2015 certified facility.
We offer a variety of stylish and functional designs to match your specific HVAC project requirements. From professional LCD interfaces to elegant high-definition color touchscreens, we provide the perfect climate control solution for modern buildings.
| Display | LCD display |
| Communication | RS485 (Modbus RTU / BACnet MS/TP), KNX, Zigbee, LoRaWAN or Wi-Fi (Tuya) Optional |
| Power Supply | AC24V or AC85-260V (50/60Hz) |
| Pipe | Support 2-Pipe / 4-Pipe Fan Coil Units |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | 3-Speed (Relay) / Variable Speed (0-10V EC Fan) |
| Modulating Control | 0-10V Signal for Proportional Valve & EC Fan |
| Programmability | 7 Days, 4 Periods & BMS Centralized Control |
| Optional Function | Occupancy (Keycard), External Sensor, Remote Probe |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X15.35mm(Ultra-slim profile) |
| Installation | Fits Standard 86mm x 86mm / European 60mm Round Box |
| Material | ABS+PC (Rohs certificated) |
| System Compatibility | 2-Pipe/4-Pipe FCU Systems; Underfloor Heating & Fan Coil 2-in-1 (Optional) |
| Certificate | CE (RED/EMC/LVD), UKCA, FCC, ETL Listed, RoHS, REACH, ISO9001:2015, ISO14001:2015 |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
A: Yes. The FT-09 is a professional fan coil unit thermostat that features 7-day, 4-period programmable scheduling. This thermostat for fcu allows for precise digital temperature management, ensuring maximum energy efficiency for both heating and cooling modes.
A: Absolutely. The FT-09 supports WiFi remote control via a smartphone App (Android & iOS). It is also fully compatible with Amazon Alexa and Google Assistant, providing a seamless smart home experience for high-end residential and commercial projects.
A: Yes. E-Top (ETOP) has been a professional ODM & OEM thermostat manufacturer since 2003. We provide free logo printing on thermostats with an MOQ of 500pcs and customized packaging boxes for orders over 1000pcs.
A: We offer a 1-year warranty on the FT-09. For order fulfillment, samples are delivered within 3 working days, while mass production orders typically take 25 days, ensuring a reliable supply chain for your HVAC projects.
A: Our products are built to global standards. E-Top is an ISO 9001:2015 and ISO 14001:2015 certified factory. The FT09 series carries CE (RED/EMC/LVD), UKCA, and RoHS certifications.
A: The FT-09 stands out as a top-tier fcu thermostat for commercial applications due to its versatile control logic and high reliability. Key features that make it the preferred choice for HVAC engineers include:
Universal Compatibility: Supports both 2-pipe and 4-pipe fan coil units, making it a versatile solution for various building layouts.
Energy Efficiency: Features a 7-day programmable schedule and supports 0-10V EC fan control, significantly reducing energy consumption in large-scale commercial buildings.
Smart Integration: Fully compatible with Modbus RTU (Optional) for BMS integration, as well as WiFi and voice control (Alexa/Google Assistant) for modern office/hotel environments.
Commercial Grade Quality: Built-in non-volatile memory ensures all settings are retained during power outages, a critical feature for commercial maintenance.
OEM/ODM Flexibility: As an experienced thermostat manufacturer, E-TOP provides customized branding and firmware options to meet specific project requirements.
