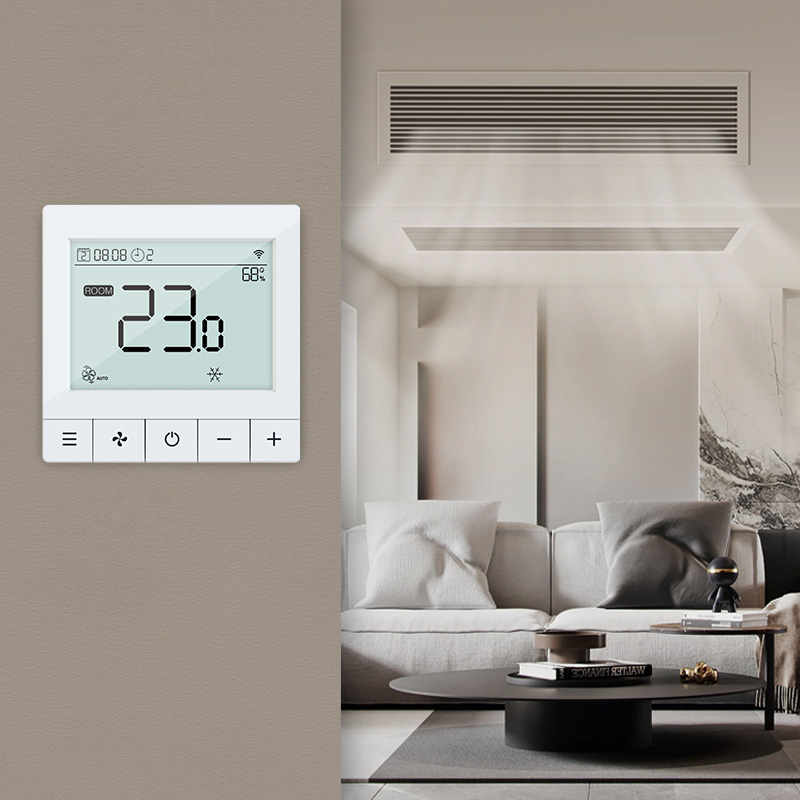

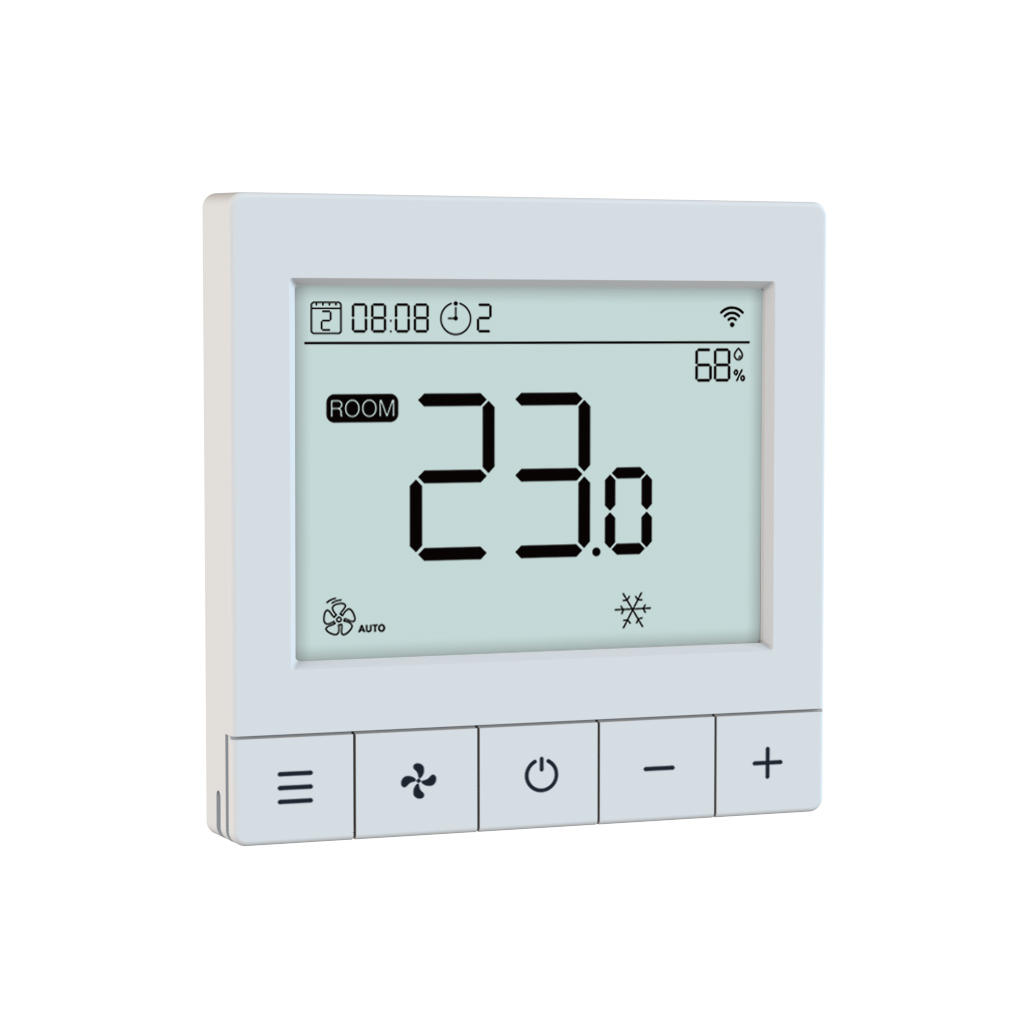

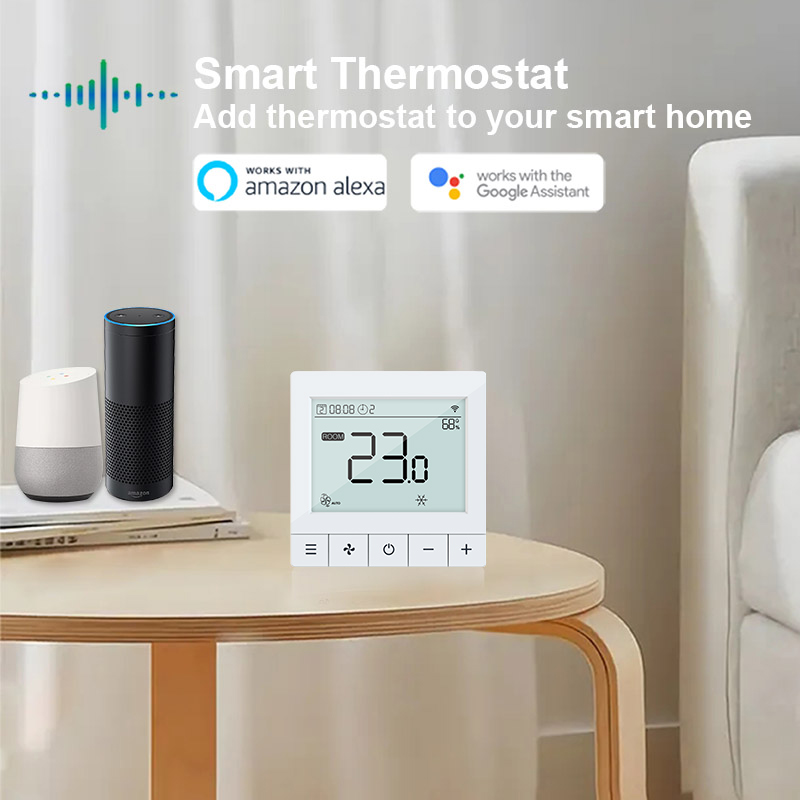

The FT-95 BACnet MS/TP thermostat features an accessible design with oversized tactile buttons and a high-visibility minimalist display. Engineered for effortless operation and robust durability, it provides seamless BMS integration for fan coil unit (FCU) systems. It is the ideal climate control solution for healthcare facilities, retirement homes, schools, and public commercial buildings.
The FT-95 is a professional-grade BACnet/Modbus thermostat designed with user accessibility at its core. By combining an ultra-simplified interface with powerful backend building management capabilities, it bridges the gap between complex HVAC integration and intuitive end-user operation.
Our FT-95 controller is engineered to meet the highest international standards for safety, reliability, and environmental responsibility:
Safety & EMC: Fully compliant with CE (RED/LVD/EMC), UKCA, FCC, and ETL Listed standards.
Environmental: Certified by RoHS and REACH, ensuring lead-free and eco-friendly manufacturing.
Quality Management: Produced in an ISO 9001:2015 and ISO 14001:2015 certified facility.
Explore more professional BACnet MS/TP Thermostats for your BMS project.
| Display | High-Definition Capacitive Color Touchscreen |
| Communication | RS485 (Modbus RTU / BACnet MS/TP), KNX, Zigbee, LoRaWAN or Wi-Fi (Tuya) Optional |
| Power Supply | AC24V or AC85-260V (50/60Hz) |

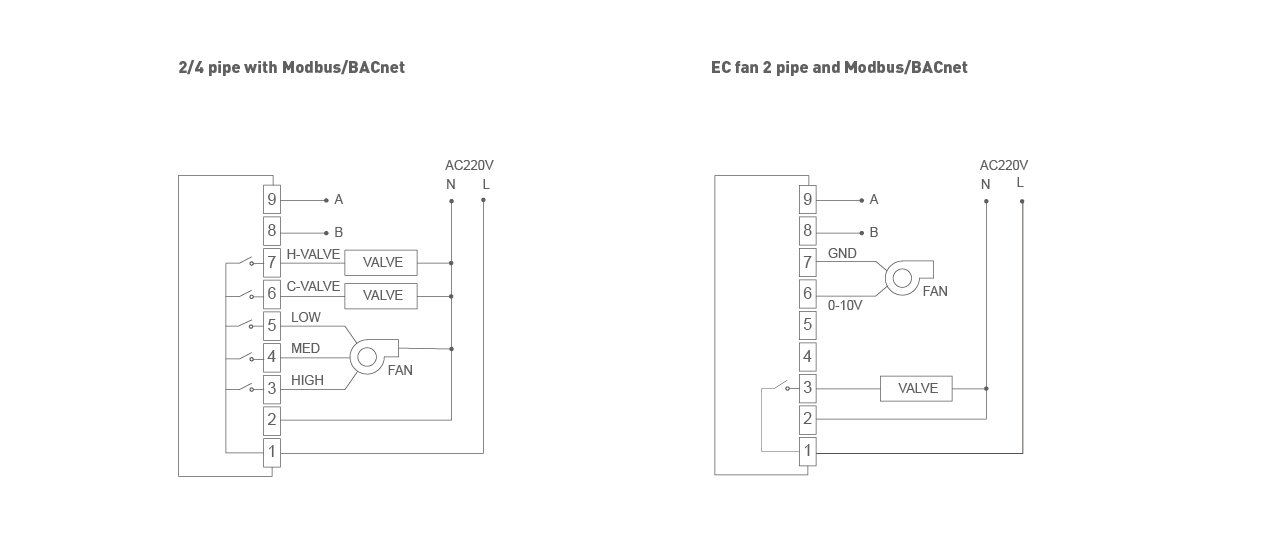

| Pipe | Support 2-Pipe / 4-Pipe Fan Coil Units |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | 3-Speed (Relay) / Variable Speed (0-10V EC Fan) |
| Modulating Control | 0-10V Signal for Proportional Valve & EC Fan |
| Programmability | 7 Days, 4 Periods & BMS Centralized Control |
| Optional Function | Occupancy (Keycard), External Sensor, Remote Probe |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X16.75mm(Ultra-slim profile) |
| Installation | Fits Standard 86mm x 86mm / European 60mm Round Box |
| Material | ABS+PC (Rohs certificated) |
| System Compatibility | 2-Pipe/4-Pipe FCU Systems; Underfloor Heating & Fan Coil 2-in-1 (Optional) |
| Certificate | CE (RED/EMC/LVD), UKCA, FCC, ETL Listed, EAC, CRA, WEEE, RoHS 2011/65/EU, REACH, EMC 2014/30/EU |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |

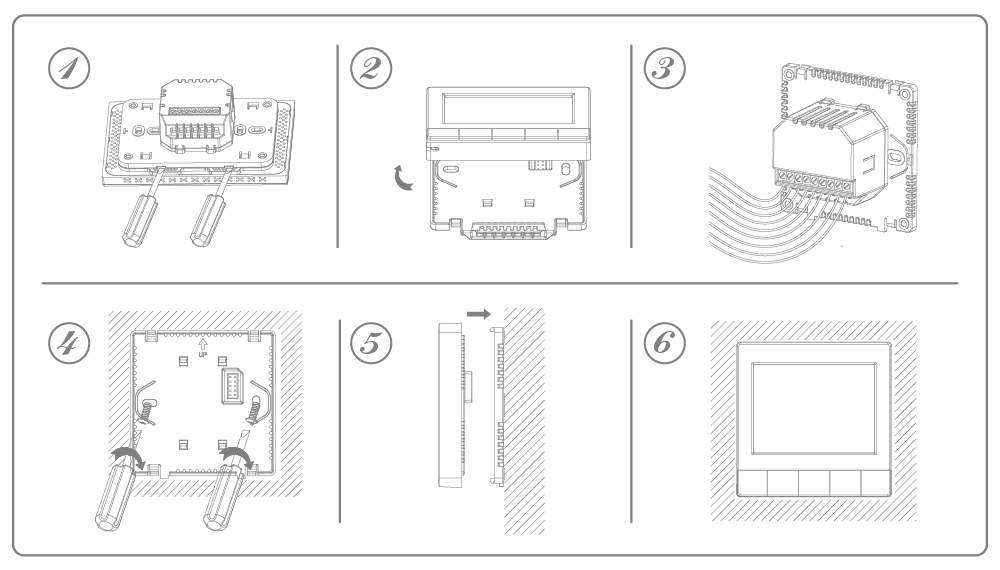

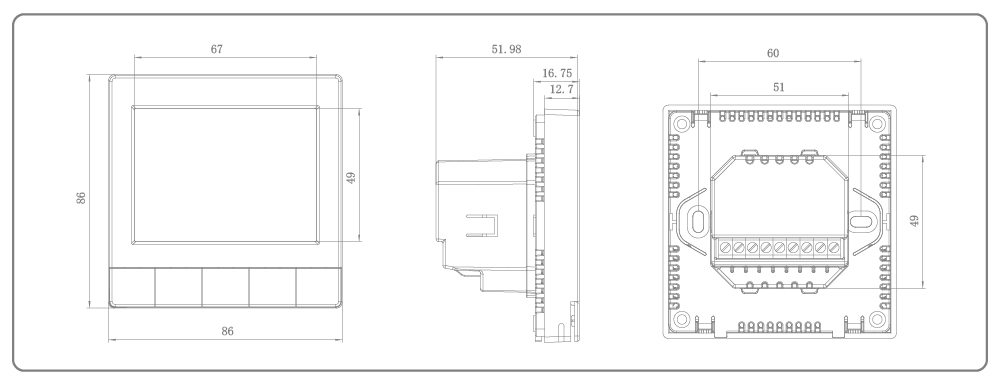

FT-95 Dimensions & Installation

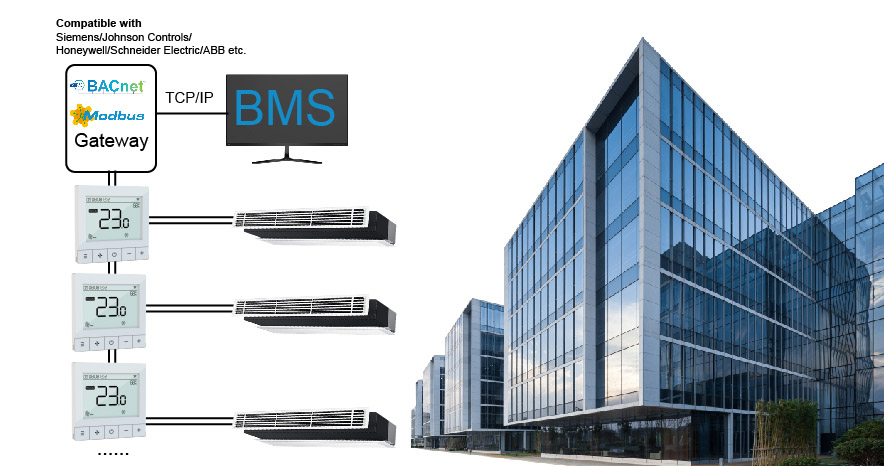

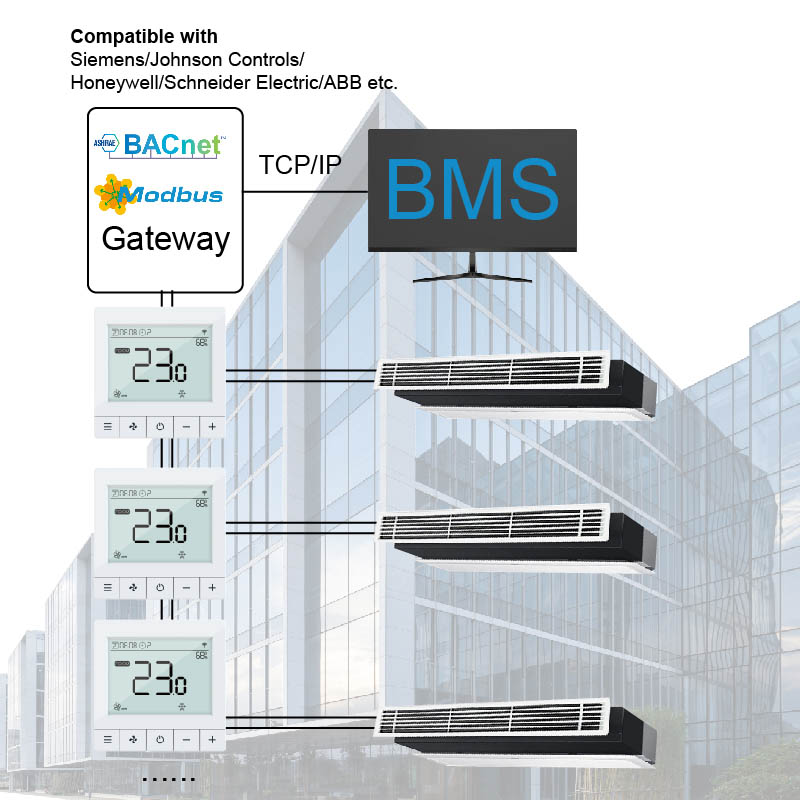

A: A BACnet MS/TP thermostat provides standardized, hardwired communication over an RS485 network, allowing seamless integration with a central Building Management System (BMS).
Unlike consumer-grade Wi-Fi thermostats, BACnet devices ensure secure, reliable, and real-time data exchange for large-scale multi-zone temperature control.
A: Yes, the thermostat is designed for versatile HVAC applications and fully supports both 2-pipe and 4-pipe fan coil systems.
It can efficiently manage complex heating and cooling configurations, making it a direct alternative to standard line-voltage room controllers.
A: Direct Answer: Yes, it supports advanced analog output control.
While it can handle traditional 1, 2, or 3-speed fans, it also provides 0...10V DC outputs for the precise modulating control of modern EC fans and proportional valves.
A: Absolutely. As a direct manufacturer, we offer deep OEM and ODM customization across our entire product line.

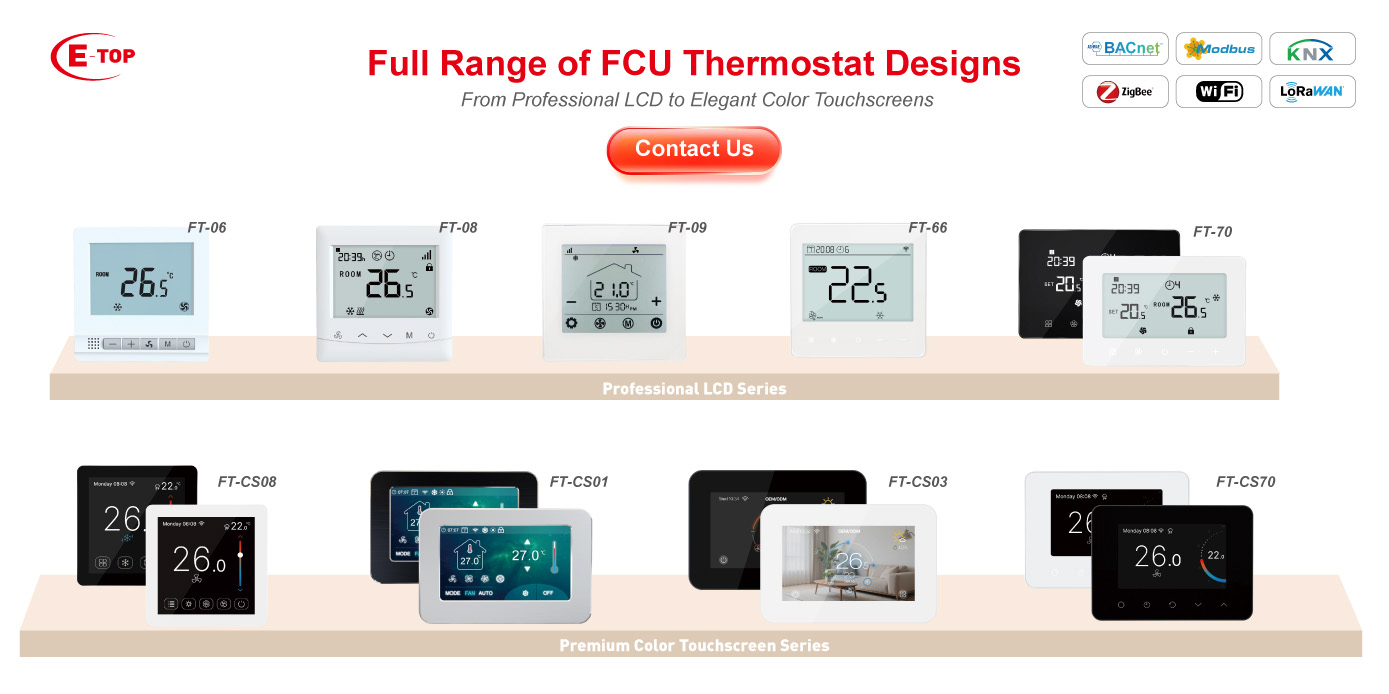

Beyond modifying the firmware, default parameters, and UI for the FT-95, your choices are not limited to a single model. We offer a full range of thermostat designs—from minimalist LCDs to premium color touchscreens. You can select any housing style from our extensive catalog, and our engineering team will tailor the internal control logic and branded interface to fit your exact BMS architecture.
A: The FT series combines industrial-grade reliability with modern aesthetics.
While traditional proportional fan coil thermostats from major brands often feature dated designs, our series offers a minimalist large-screen interface, retaining robust features like field-selectable BACnet MS/TP or Modbus protocols at a highly competitive B2B price point.
The FT-95 BACnet MS/TP thermostat features an accessible design with oversized tactile buttons and a high-visibility minimalist display. Engineered for effortless operation and robust durability, it provides seamless BMS integration for fan coil unit (FCU) systems. It is the ideal climate control solution for healthcare facilities, retirement homes, schools, and public commercial buildings. Item No.: FT-95 (BACnet or Modbus Optional) User Interface: Oversized tactile buttons designed for effortless operation and zero learning curve. Display: High-visibility minimalist LCD with extra-large temperature digits for easy reading from a distance. Durability: Robust hardware built to withstand high-frequency use in public and commercial spaces. System Compatibility: Designed for 2-pipe or 4-pipe Fan Coil Units (FCU). Fan & Valve Control: Supports 3-speed fans and precision on/off or modulating valve control. BMS Communication: Optional BACnet MS/TP or Modbus RTU protocol for seamless building system integration. Data Security: Non-volatile memory retains all program settings and setpoints during power outages. Security Feature: Integrated Child Lock to prevent unauthorized local tampering. Smart Sensing (Optional): Supports External Temperature Sensors and Occupancy (Hotel Card) Sensors. IoT Connectivity (Optional): Integrated WiFi module for remote App control and cloud management.
