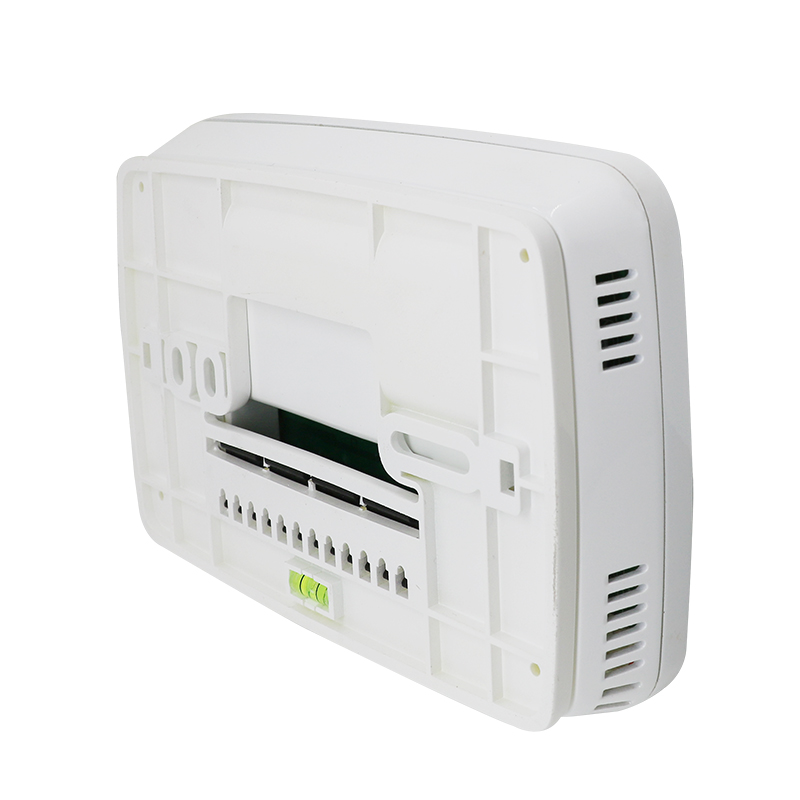

The CH7100 is a premium 4.3-inch TFT high-resolution touch screen thermostat designed for advanced HVAC management. It offers a seamless interface for precise control of multi-stage heating and cooling systems in both residential and commercial settings.

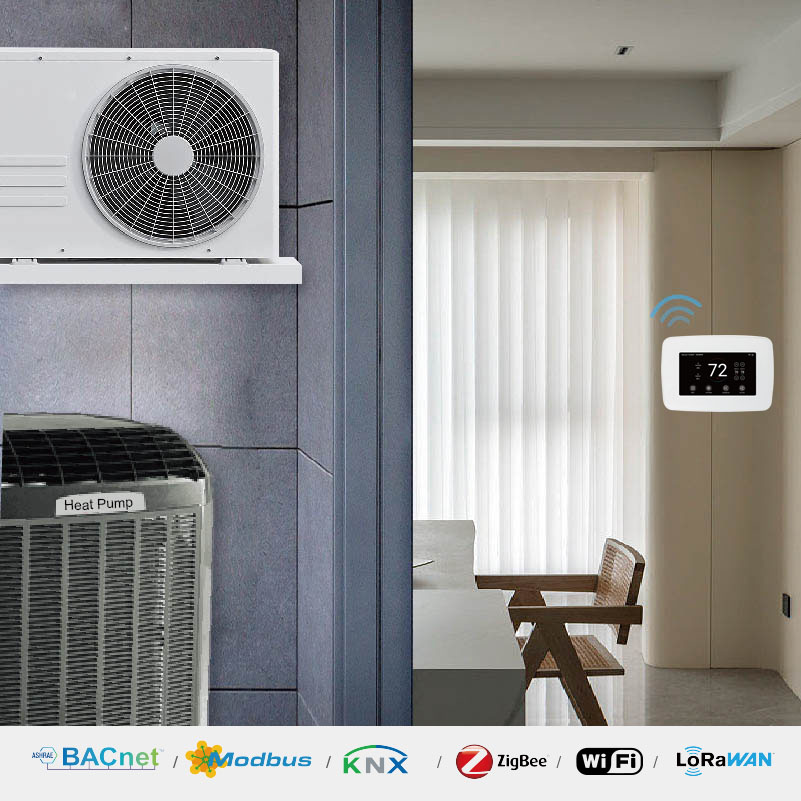

The CH7100 Wi-Fi Smart Thermostat is engineered for modern heat pumps with auxiliary heat control systems. Integrated with 2.4GHz Wi-Fi, it enables remote access via the Smart Life app, allowing you to program temperatures anytime, anywhere. The Geo-fencing function enhances efficiency by automatically adjusting settings based on your location.

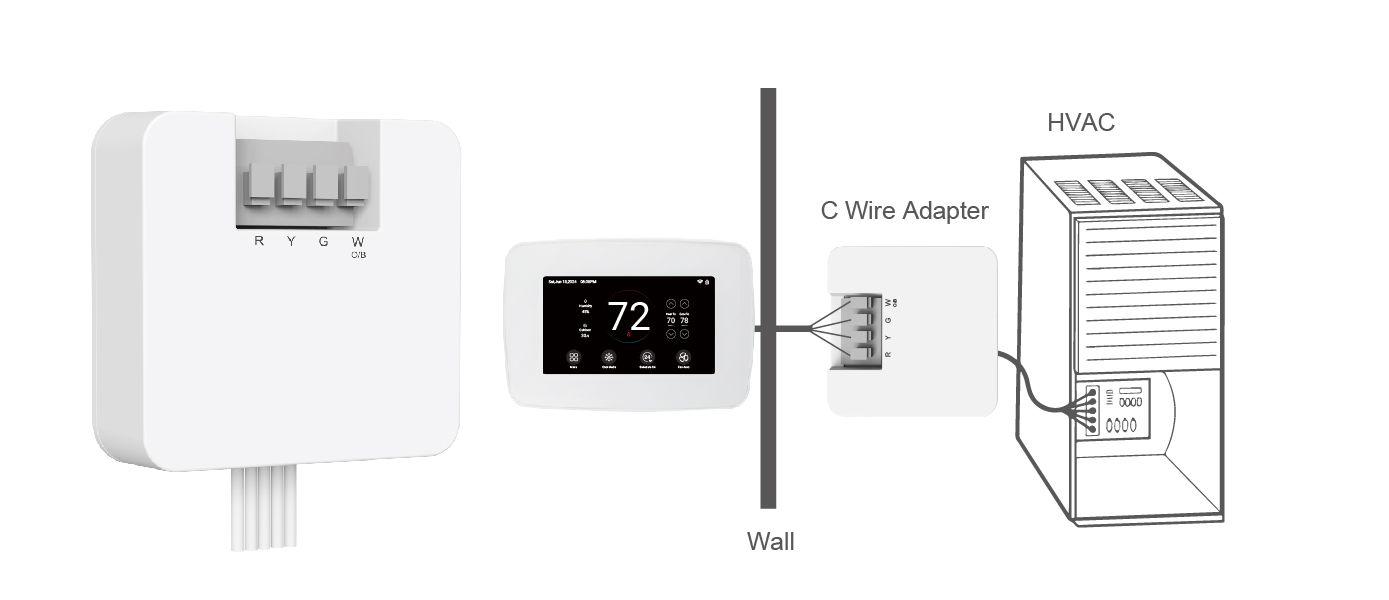

This adapter adds the crucial C wire (Common wire) to power your smart thermostat, eliminating the need for extensive rewiring in homes lacking a C wire.
System Versatility: Compatible with Heat Pump (3H/2C), Conventional HVAC (2H/2C), and both 2-Pipe & 4-Pipe Fan Coil systems.
Dedicated Terminals: Includes specialized terminals for Emergency Heat (E) and Auxiliary Heat (W/AUX) to ensure comfort during extreme weather.
C-Wire Reliability: Requires a 24V Common Wire to ensure a stable, uninterrupted power supply for the high-resolution TFT display.
ISO Certified Production: Every CH7100 unit is manufactured in an ISO 9001:2015 and ISO 14001:2015 certified facility.
Compliance Standards: Fully certified with CE (RED/EMC/LVD), RoHS, and FCC marks for global market access.
OEM Experience: Backed by E-TOP Controls, a professional manufacturer with over 20 years of experience (since 2003) in ODM/OEM services.
| Display |
|
| System Compatibility | Conventional (2H/2C), Heat Pump (3H/2C), 2/4-Pipe Fan Coil |
| Multi-Protocol | RS485 (Modbus RTU / BACnet MS/TP), Zigbee or 2.4GHz Wi-Fi (Tuya) Optional |
| Power Supply | 20 to 30 VAC, 50/60 Hz (C-Wire required for constant power) |
| Output Rating | 0.5 A each (Y, Y2, W/AUX, W2, G) |
| Set Temp. Range |
Heat/Cool 41~ 95°F (5~35℃) Auto- Heat 41~91°F (5~33℃) Auto- Cool 45~95°F (7~35℃) |
| Accuracy | ±1°F (±0.5°C) for precise temperature modulation |
| Operation Modes | Cool, Heat, Auto Mode, Fan Mode, Emergency Heat |
| Programmability | 7 Days 4 Periods (Fully customizable via device or App) |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | Fan On/Fan OFF |
| Programmability | 7 days 4 periods ( Customizable) |
| Protection Class | IP20 |
| Thermostat Dimension | 90X90X23mm (Ultra-slim design) |
| Material | Fire-resistance ABS+PC (RoHS & Reach compliant) |
| Certificate | CE (RED/EMC/LVD), RoHS, FCC, ETL |
| Quality Assurance | ISO 9001:2015 Quality Management System certified manufacturing |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
A: Yes. The CH7100 is fully compatible with hybrid systems using oil, gas, or electric fuel. It supports up to 3 stages of heating (including Aux/Emergency heat) and 2 stages of cooling (3H/2C).
A: Yes. During installation, you can configure the O/B terminal signal via the system menu to match your specific heat pump's reversing valve logic (O for cool or B for heat).
A: No. A 24V C-wire is strictly required for the CH7100 to ensure stable WiFi connectivity and provide sufficient power for the 4.3-inch colorful touch screen.
A: The Geo-fencing function in the Smart Life App tracks your smartphone's location. It automatically adjusts the heating or cooling load when you leave home and restores your comfort settings before you return.
A: The maximum load for this device is 0.5A, which is designed for standard 24V HVAC control systems.

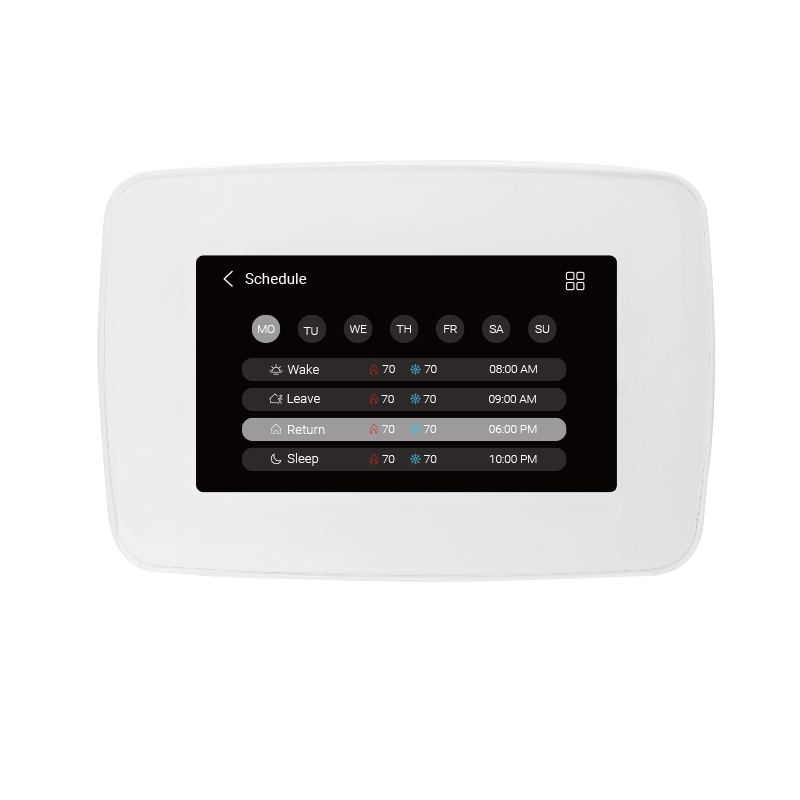

A: Yes. You can enter the schedule menu to set 4 distinct periods per day (start time and temperature) for both heating and cooling modes.

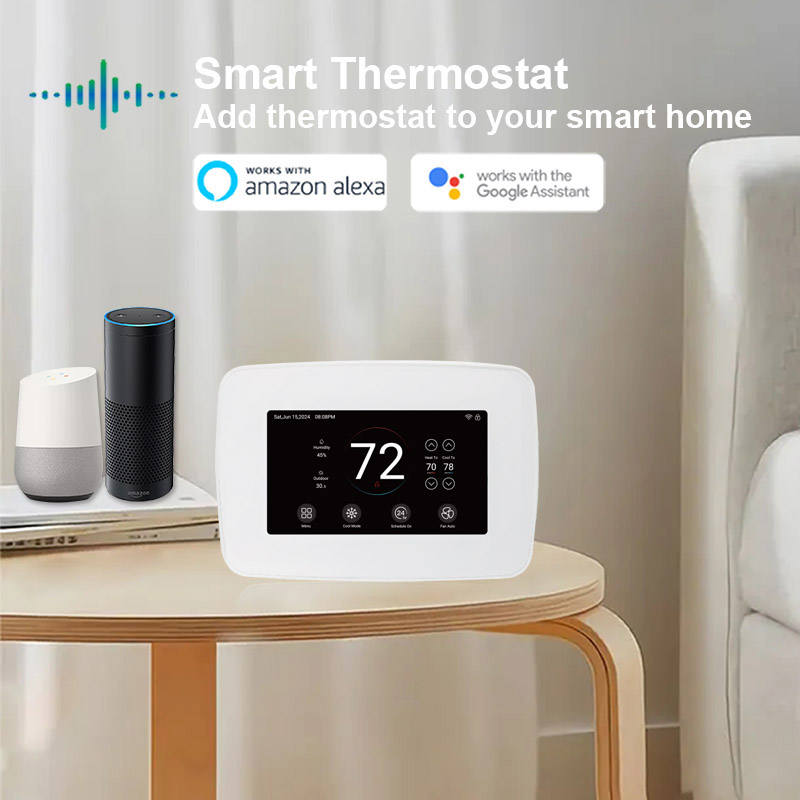

The CH7100 is a premium 4.3-inch TFT high-resolution touch screen thermostat designed for advanced HVAC management. It offers a seamless interface for precise control of multi-stage heating and cooling systems in both residential and commercial settings. Item No.: CH7100 Universal Compatibility: Works with conventional 2H/2C and Heat Pump systems up to 3H/2C, including support for Aux/Emergency heat. Dual-Fuel Support: Perfectly compatible with hybrid systems using oil, gas, or electric fuel sources. IoT Ecosystem: Fully integrated with Amazon Alexa and Google Assistant for intuitive voice control. Remote Mobility: Monitor and control your home comfort anywhere via the free Smart Life app for Android and iOS. Visual Feedback: Features a vibrant 4.3" Capacitive Touchscreen with a background that turns blue or red to indicate current system status. C-Wire Powered: Requires a 24V C-wire to ensure stable WiFi connectivity and consistent high-res display performance.
