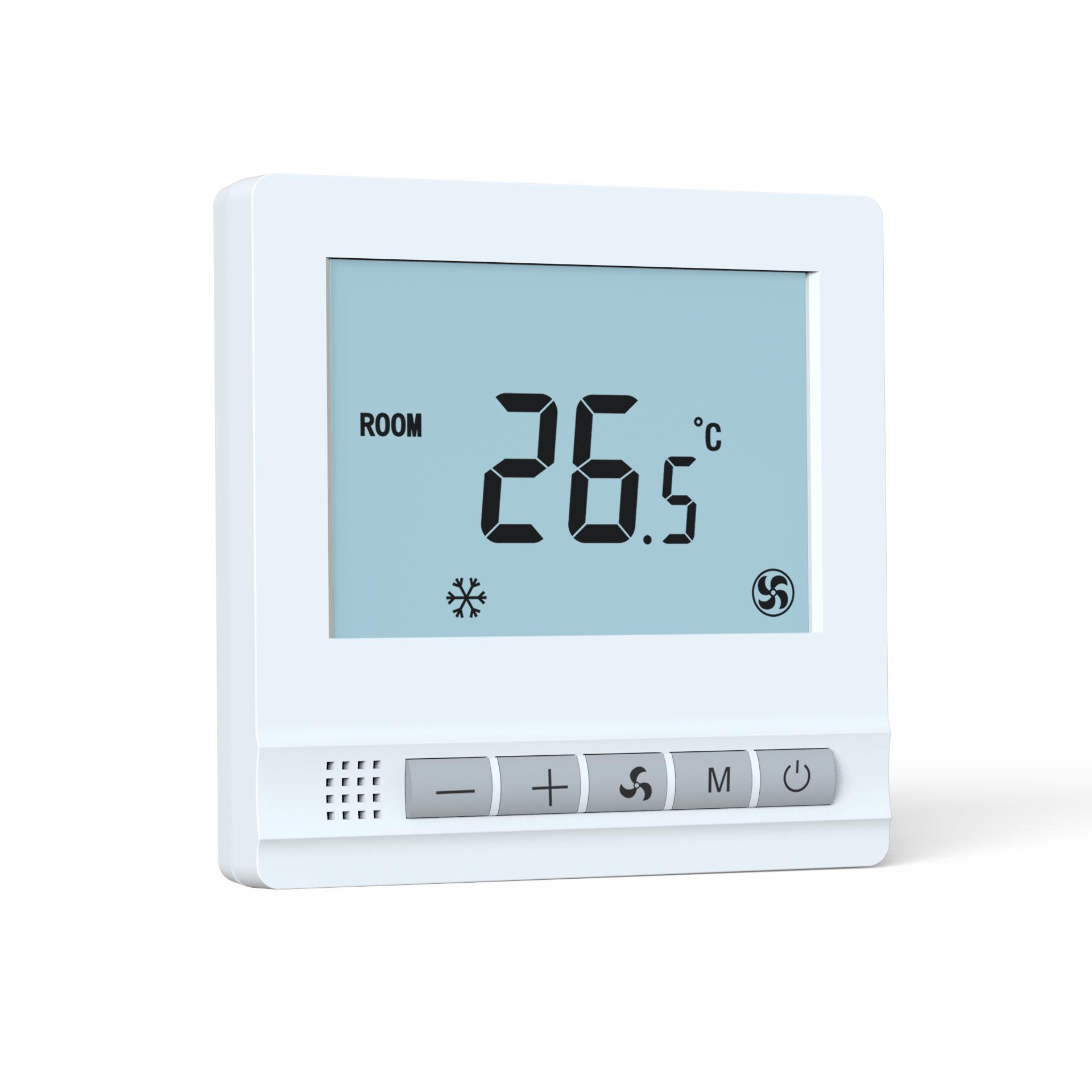

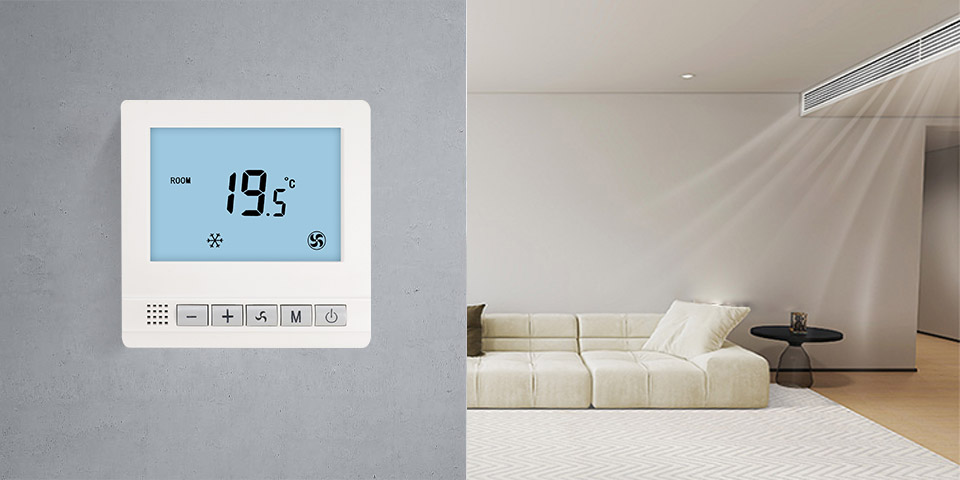

The FT06 is a reliable, high-contrast digital LCD thermostat designed for standard commercial building upgrades. It provides a familiar, tactile interface combined with advanced BACnet/Modbus integration, ensuring long-term stability and ease of use for facility staff.
The FT06 represents a proven solution for standard commercial building climate control. Featuring a high-contrast digital LCD with intuitive soft-touch buttons, it provides a robust and cost-effective interface while maintaining the same professional-grade 0-10V modulating precision required for high-efficiency FCU systems.

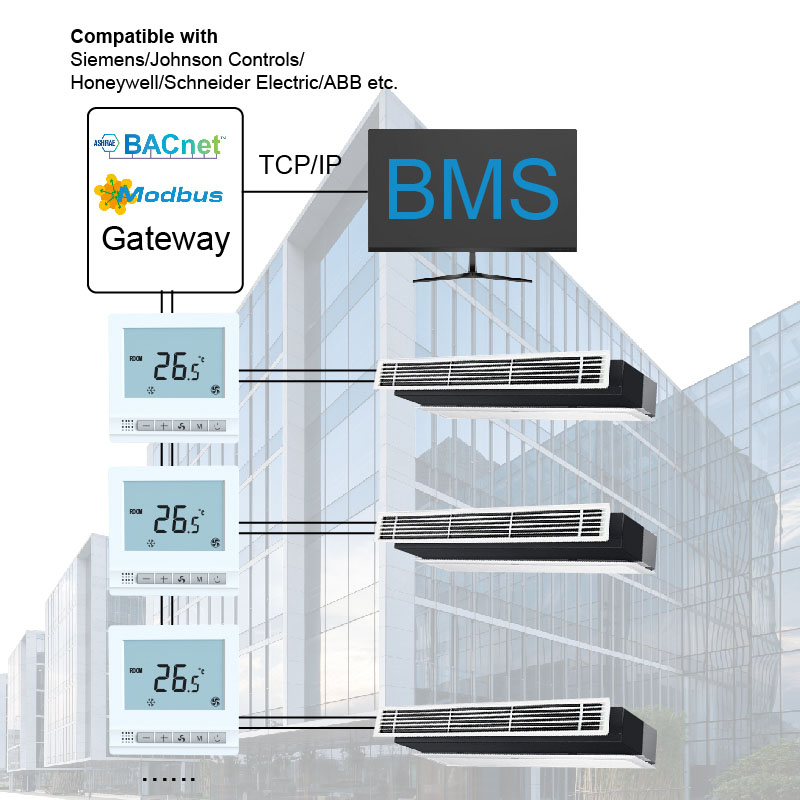

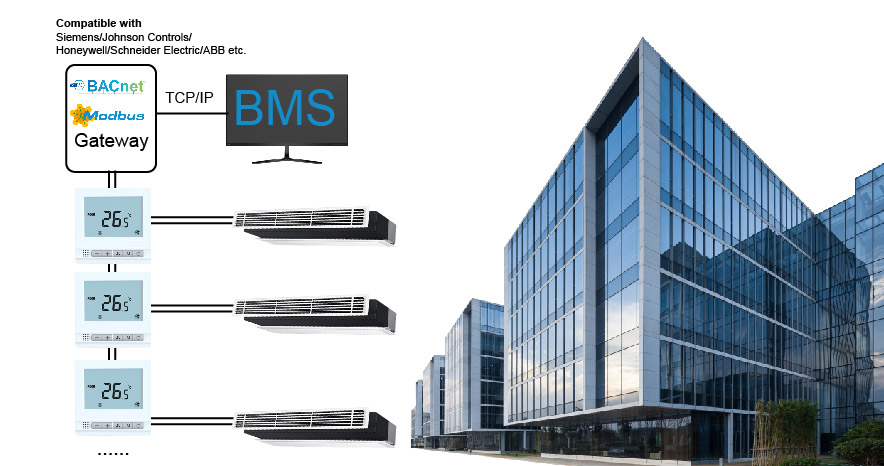

Engineered for large-scale interoperability, the FT06 supports native BACnet MS/TP and Modbus RTU communication protocols. This allows the controller to be easily integrated into any standard Building Management System (BMS) via RS485, enabling centralized monitoring and intelligent energy management across multi-zone office buildings or hotels.
From student accommodation and retirement homes to modern corporate offices, the FT06 delivers consistent comfort and energy savings. Its simple installation process and durable hardware suite—including optional external sensors and keycard support—make it the preferred choice for Commercial HVAC Projects looking for a balance of performance and value.
Our FT-06 controller is engineered to meet the highest international standards for safety, reliability, and environmental responsibility:
Safety & EMC: Fully compliant with CE (RED/LVD/EMC), UKCA, FCC, and ETL Listed standards.
Environmental: Certified by RoHS and REACH, ensuring lead-free and eco-friendly manufacturing.
Quality Management: Produced in an ISO 9001:2015 and ISO 14001:2015 certified facility.
Explore more professional FCU Thermostats for your project.
FT-06 Technical Specifications & Protocol Details
| Display | LCD display |
| Communication | RS485 (Modbus RTU / BACnet MS/TP), KNX, Zigbee, LoRaWAN or Wi-Fi (Tuya) Optional |
| Power Supply | AC24V or AC85-260V (50/60Hz) |
| Pipe | Support 2-Pipe / 4-Pipe Fan Coil Units |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | 3-Speed (Relay) / Variable Speed (0-10V EC Fan) |
| Modulating Control | 0-10V Signal for Proportional Valve & EC Fan |
| Programmability | 7 Days, 4 Periods & BMS Centralized Control |
| Optional Function | Occupancy (Keycard), External Sensor, Remote Probe |
| Protection Class | IP20 |

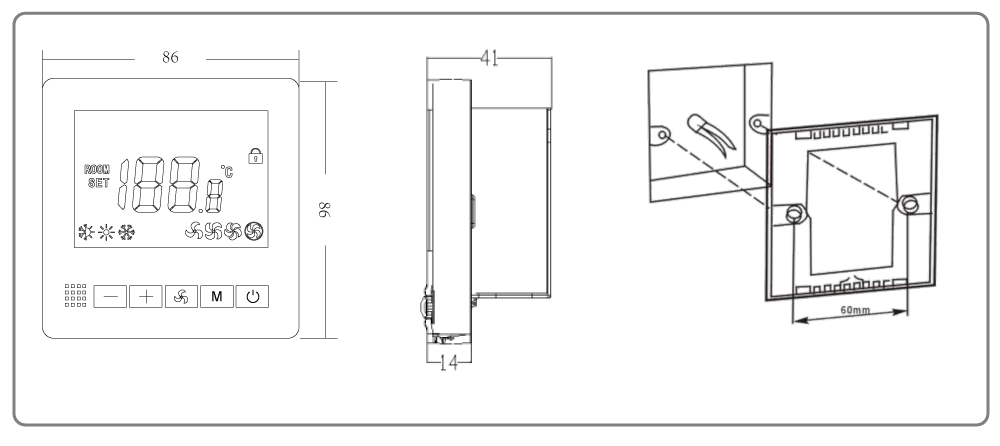

| Thermostat Dimension | 86X86X15.35mm(Ultra-slim profile) |

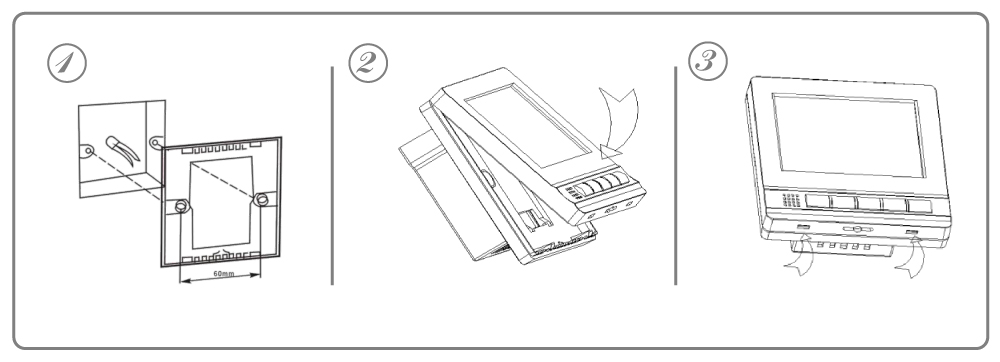

| Installation | Fits Standard 86mm x 86mm / European 60mm Round Box |
| Material | ABS+PC (Rohs certificated) |
| System Compatibility | 2-Pipe/4-Pipe FCU Systems; Underfloor Heating & Fan Coil 2-in-1 (Optional) |
| Certificate | CE (RED/EMC/LVD), UKCA, FCC, ETL Listed, RoHS, REACH, ISO9001:2015, ISO14001:2015 |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
A: Yes. Since 2003, E-Top (ETOP) has been a premier OEM/ODM manufacturer specializing in high-end HVAC controls. Our FT06 series is specifically engineered for Building Automation Systems (BMS), providing professional-grade integration for commercial projects worldwide.
A: The FT06 features a high-contrast digital LCD screen with clear status icons. It is designed for maximum visibility and long-term reliability, making it the perfect choice for traditional office environments where a tactile, easy-to-read interface is preferred.
A: Absolutely. We offer comprehensive OEM/ODM services. For orders over 500 units, we provide free logo printing (Private Labeling). Additionally, we can customize the control logic to meet specific project requirements.
A: Yes. The FT06 is engineered for cost-effective, high-volume deployment. It supports seamless integration into existing BMS networks via BACnet MS/TP or Modbus RTU, providing precise 0-10V control for fans and valves.
A: Our products are built to global standards. E-Top is an ISO 9001:2015 and ISO 14001:2015 certified factory. The FT06 series carries CE (RED/EMC/LVD), UKCA, and RoHS certifications.
A: We ensure project timelines are met with rapid fulfillment: Samples within 3 working days and mass production in approximately 25 days.
A: Yes. While prioritizing BMS wired communication, we offer an optional WiFi module compatible with the Smart Life App. This allows for hybrid control—centralized management via RS485 and remote adjustment via smartphone.
A: The FT06 offers a cost-effective yet professional entry point for BACnet-enabled hotel HVAC systems. BACnet MS/TP is preferred for large-scale retrofits because it uses existing RS485 twisted-pair wiring, saving on installation costs. The FT06 provides a robust, high-contrast LCD interface that integrates flawlessly with standard Building Management Systems (BMS), delivering reliable performance at a commercial-grade price point.

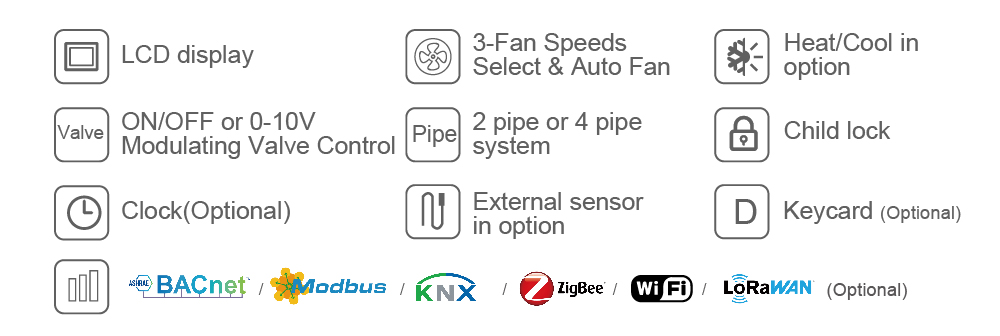

The FT06 is a reliable, high-contrast digital LCD thermostat designed for standard commercial building upgrades. It provides a familiar, tactile interface combined with advanced BACnet/Modbus integration, ensuring long-term stability and ease of use for facility staff. Item No.: FT-06(BACnet or Modbus Optional) Display: Large-character digital LCD with clear, high-contrast readout. Durability: Robust interface designed for high-traffic commercial use. System Compatibility: Designed for 2-pipe or 4-pipe Fan Coil Units (FCU) Precision Control: Proportional-Integral (PI) valve control via 2-point or 0–10V modulating output Fan Motor Support: Compatible with traditional 3-speed fans or high-efficiency EC motors Scheduling: 7-day, 4-period programmable internal clock for independent operation BMS Communication: Optional BACnet MS/TP or Modbus RTU protocol for seamless system integration Data Security: Non-volatile memory retains all program settings and setpoints during power outages Security Feature: Integrated Child Lock to prevent unauthorized local tampering Smart Sensing (Optional): Supports External Temperature Sensors and Occupancy (Hotel Card) Sensors IoT Connectivity (Optional): Integrated WiFi module for remote App control and cloud management
