This modulating FCU thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
This digital modulating fan coil unit thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications. It detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature. In the event of a deviation, the heating valve is opened in heating mode, and the cooling valve is opened for cooling mode. At the same time, the connected fan is activated depending on the control deviation and the set configuration. A connectable remote sensor can be used either for detecting the room temperature or as a changeover sensor in 2-pipe systems.
Product Display:
Wiring Diagram:
Notes: this FCU thermostat's relay module support max. 9 terminals, not all the functions mentioned above can intergrate into one unit, users can choose wiring accodingly.
| Display | LCD display |
| Protocol | WIFI, Zigbee, Modbus,RS485, Bacnet |
| Power Supply | AC24V or AC85-260V |
| Pipe | 2 Pipes/ 4 Pipes |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | 3 Fan Speeds Select & Auto Fan |
| 0-10V Modulating Control | 0-10V for Valve Control/ Fan Speed Control |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | Clock, Keycard, External Sensor etc. |
| Protection Class | IP20 |

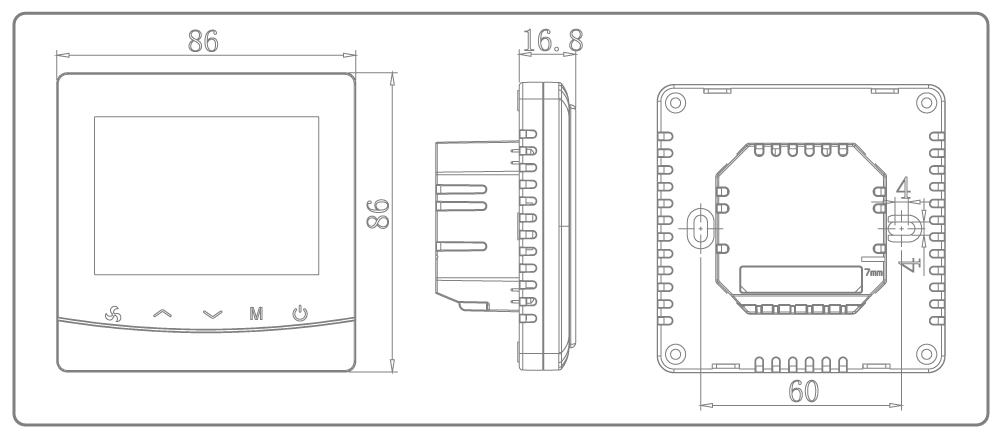

| Thermostat Dimension | 86X86X16.5mm |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
This modulating FCU thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment. Item No.:FT-08 For 2- or 4-pipe fan coil units Valve control via 2-point(on/off output) or 0…10 V output Supports 3-speed fans or fans with EC motor Non-Volatile memory to keep program settings and setpoints during a power outage Modbus/RTU management control (Optional) 7 days 4 perioods programmable (Optional) Child Lock (Optional) External Sensor (Optional) Keycard (Optional) WIFI Remote Control (Optional)
