Multi-zones Wired Wiring Centres
Home /

Multi-zones Wired Wiring Centres

/

Wired Wiring Centre for Underfloor Heating

Wired Wiring Centre for Underfloor Heating
Wired Wiring Centre for Underfloor Heating
Wired Wiring Centre for Underfloor Heating
Wired Wiring Centre for Underfloor Heating
Wired Wiring Centre for Underfloor Heating
Wired Wiring Centre for Underfloor Heating

Wired Wiring Centre for Underfloor Heating

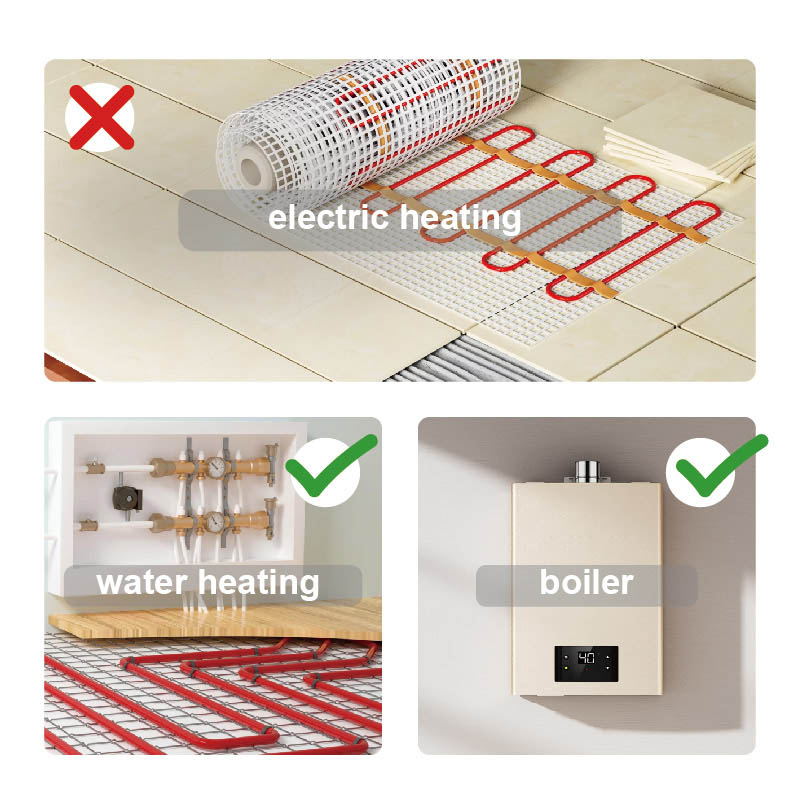

HR-01 wired wiring centre is designed to be used in conjunction with our water heating  thermostats. 8 zones can be controlled as well as providing an output for circulation pump and boiler.

  • Item No.: HR-01
  • Can work up to 8 room thermostats
  • Max. 8 thermal actuator connectors.
  • Boiler and Pump 5 mins delay working time
  • Convenient wiring and installation

Our underfloor heating wiring centres have been designed to simplify the wiring process. Using our wiring centres in your application means that the actuator, boiler and pump connections are wired from a single point. HR-02 is used in conjunction with our wireless thermostats. 8 zones or 16 zones can be controlled as well as providing an output for circulation pump and boiler. Up to 5 thermal actuators can be connected to each zone.

Multi-zone Wired Wiring Centre

Name Multi-zone Wired Wiring Centre for Underfloor Heating
Power Supply 230Vac
Boiler Output Voltage-free
Pump Output 230Vac
    Max. Current 5(2) A for each
Relative Humidity 85%
Accurancy ±0.5 ℃
Protection Class IP20
Thermostat Dimension 240mm x 110mm x 38mm.
Materils  ABS+PC (Rohs certificated)
Certificate CE(RED/EMC/LVD), Rohs
OEM  1. Customized logo and package
2. Customzied software ( change to customer’s user interface and control logic
3. Customized hardware ( change the PCB and schematic based on the request)

Size:

8 zone wired wiring centre receiver

Installation:



Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.

Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.

Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.

Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.

Q: What’s the warranty?
A: 1 year.

Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.

Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
