This Smart thermostat for Electric heating has a elegant,sleeker design with a large square LCD screen ensuring an excellent user experience of temperature control.
HT-CS03 is a smart APP controlled WIFI programmable thermostat which works with Amazon Alexa&Google Assistant voice control. According to the present temperature,the intelligent thermostat will auto-matically start or stop the controlled object such as valve, heating floor, heating wall, electric heater etc.
Alexa Voice Mode
Remote voice control temperature.
Bring you a more comfortable and convenient life.
Ultra-high-precision temperature control brings you the ultimate enjoyment
Wifi Remote Control
Mobile APP remote one-key control
Customize different schedules according to your habits
One phone, to adjust all the temperatures
Open Window Detection
Details determine success or failure
SIMPLE OUTLOOK
Intelligence is not just talk, we are committed to every detail and hope to bring you the most comfortable home environment.
Product Display:

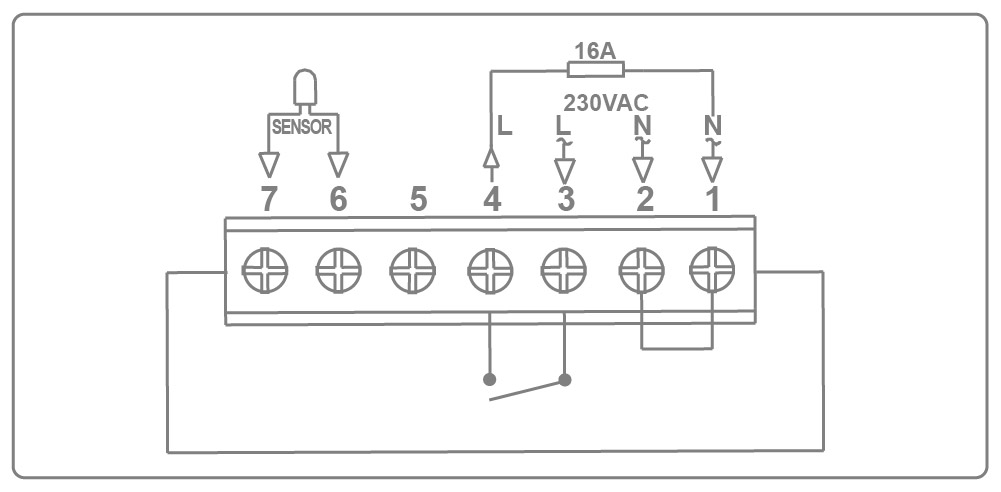

Wiring Diagram:
| Display | 4.3inch Color Touch Screen |
| Power Supply | 230V，50/60Hz |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Backlight | Color |
| Sensor | NTC 10K |
| Programmability | 7 days 4 periods ( Customizable) |
| Protection Class | IP30 |
| Max Load | 16A(MAX） |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| Housing | ABS to UL94-5 fire retardant plastic |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Heating
Fan Coil Unit
Paperback
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
