This Tuya Zigbee Smart Thermostat is designed for gas boiler & radiant floor heating system control. It is compatiable with differnet brand switch frames. It has a elegant,sleeker design with a large square LED screen ensuring an excellent user experience of temperature control.
This Tuya Zigbee Smart Thermostat is designed for electric floor heating control. It is compatiable with differnet brand switch frames. It has a elegant,sleeker design with a large square LED screen ensuring an excellent user experience of temperature control. It is workable for gas boiler with volt-free output or electrovalve with 230Vac output.
This thermostat compatible with following frames:
ABB – Basic55 series Liregus – Epsilon series
Schneider – Merten series Berker – S.1 series
86*86 frame from factory
Alexa Voice Mode
Remote voice control temperature.
Bring you a more comfortable and convenient life.
Ultra-high-precision temperature control brings you the ultimate enjoyment
Wifi Remote Control
Mobile APP remote one-key control
Customize different schedules according to your habits
Open Window Detection
Details determine success or failure
Worried about accidentally touching it?
Child Lock Help you
Intelligence is not just talk, we are committed to every detail and hope to bring you the most comfortable home environment.
Product Display:

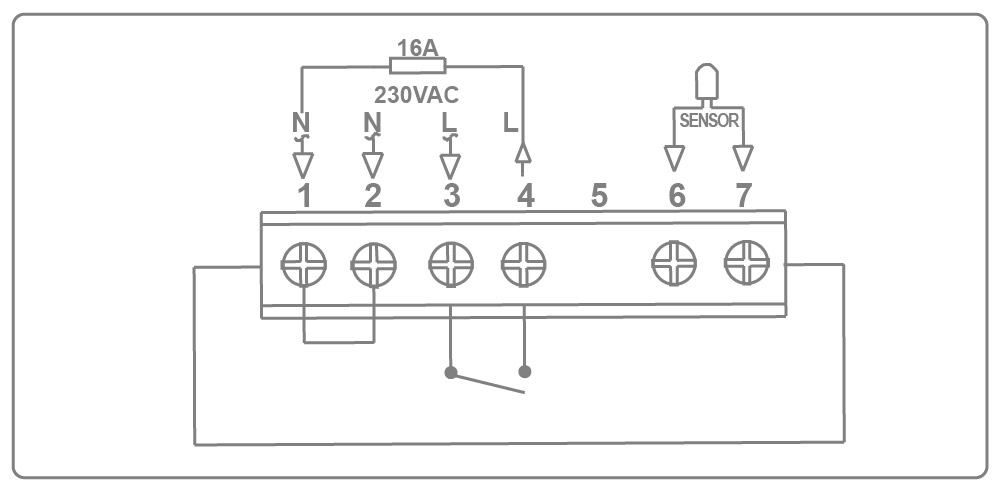

Wiring Diagram:
| Display | LED display |
| Protocol | WIFI or Zigbee |
| Power Supply | 230Vac，50/60Hz |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Backlight | White/Black |
| Sensor | NTC 10K |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | External Sensor |
| Protection Class | IP30 |
| Max Load | 16A |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| Housing | ABS to UL94-5 fire retardant plastic |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
