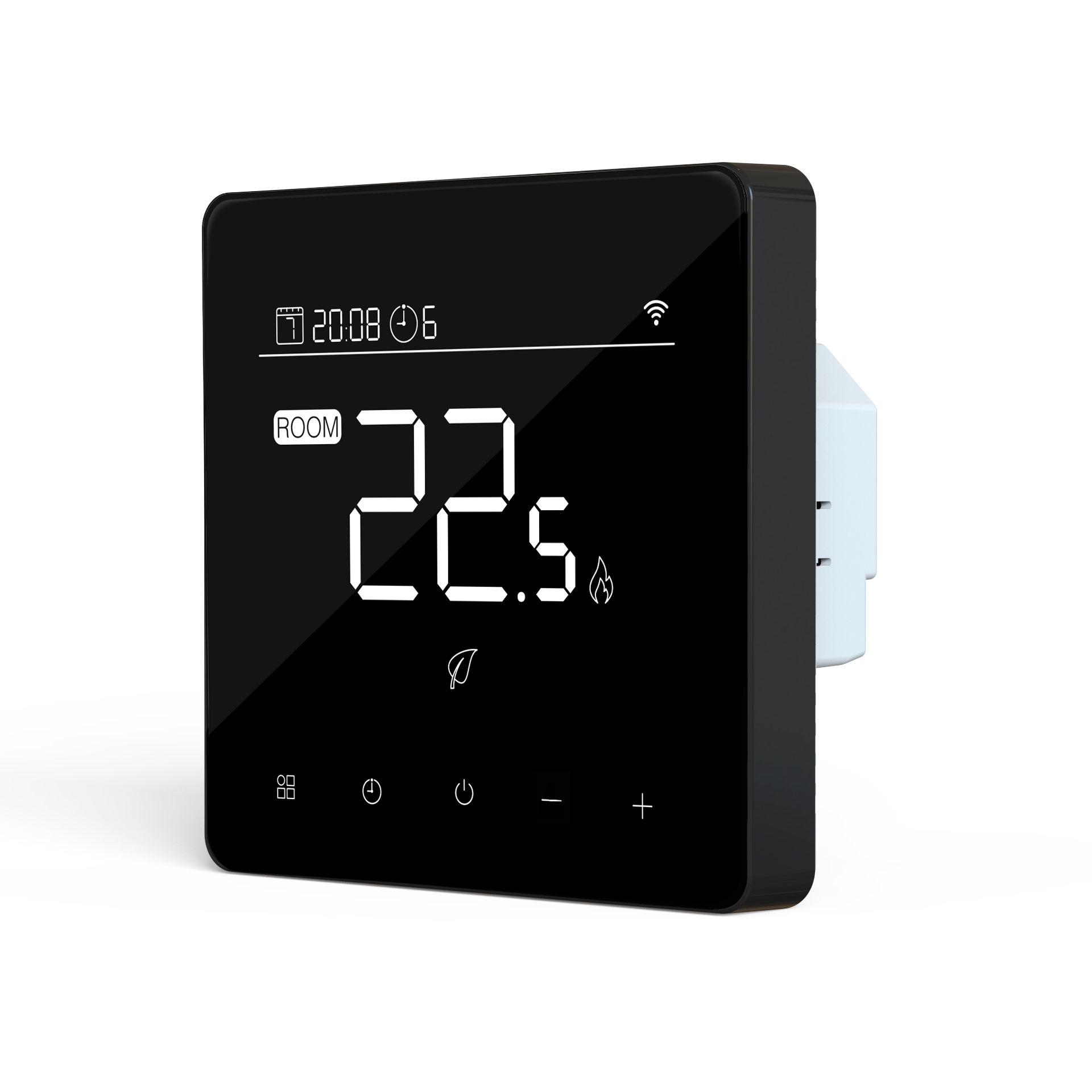

This toch EC fan coil thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
This digital factory wholesale fan coil unit thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications. As a touch Modbus FCU thermostat, it detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature. In the event of a deviation, the heating valve is opened in heating mode, and the cooling valve is opened for cooling mode. At the same time, the connected fan is activated depending on the control deviation and the set configuration. A connectable remote sensor can be used either for detecting the room temperature or as a changeover sensor in 2-pipe system or 4-pipe system.
To better integrate with smart home and building automation systems, this smart FCU thermostat is workable with Tuya WIFI and optional BACnet compatibility (an open international standard for building management). By connecting to a home router or Building Management System (BMS), this intelligent RS485 FCU thermostat enables control anytime, anywhere, while BACnet support facilitates seamless centralized monitoring and integration for large-scale HVAC projects.
Product Display:
| Display | LCD display |
| Protocol | WIFI, Zigbee, Modbus,RS485, Bacnet |
| Power Supply | AC24V or AC85-260V |
| Pipe | 2 Pipes/ 4 Pipes |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | 3 Fan Speeds Select & Auto Fan |
| 0-10V Modulating Control | 0-10V for Valve Control/ Fan Speed Control |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | Clock, Keycard, External Sensor etc. |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X16.8mm |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. E-TOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
This toch EC fan coil thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment. Item No.:FT-66 Valve control via 2-point(on/off output) or 0…10 V output Supports 3-speed fans or fans with EC motor Non-Volatile memory to keep program settings and setpoints during a power outage Modbus/RTU management control (Optional) BACnet management control (Optional) 7 days 4 periods programmable (Optional) Child Lock (Optional) External Sensor (Optional) Keycard (Optional) WIFI Remote Control (Optional)
