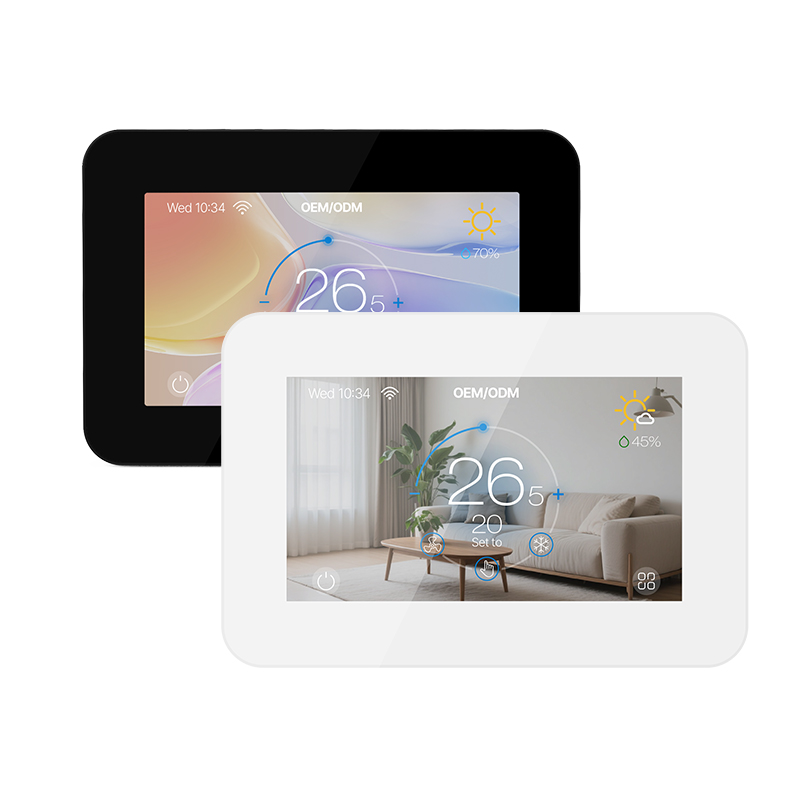

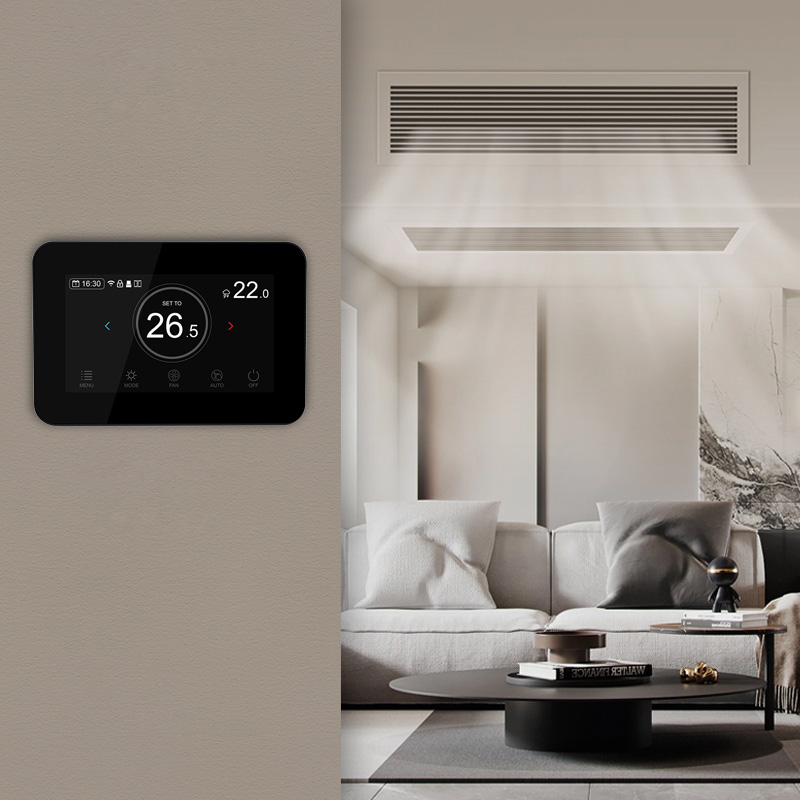

This premium 4.3-inch TFT color touchscreen FCU thermostat (Item No.: FT-CS03) is engineered for precise heating and cooling regulation of fan coil units in modern commercial and residential buildings.
The FT-CS03 is a premium smart WiFi thermostat featuring a high-end 4.3-inch capacitive touchscreen, precisely engineered for fan coil units (FCUs) and air handler heating or cooling applications.
Key Technical Capabilities:
Proportional Modulating Control: In the event of a temperature deviation, the 0-10V proportional output automatically modulates heating or cooling valves while adjusting fan speed (or EC motors) to minimize temperature fluctuations and maximize energy savings.
BMS Integration Ready: Built-in RS485 communication interface supporting standard Modbus RTU and BACnet protocols allows seamless, real-time connection to central Building Management Systems (BMS) in large commercial applications.
Intelligent Climate Sensing: The system detects ambient room temperature via its integrated sensor and cross-references it with the user's setpoint. It also supports connectable remote sensors for multi-zone temperature detection or changeover sensing in 2-pipe HVAC systems.

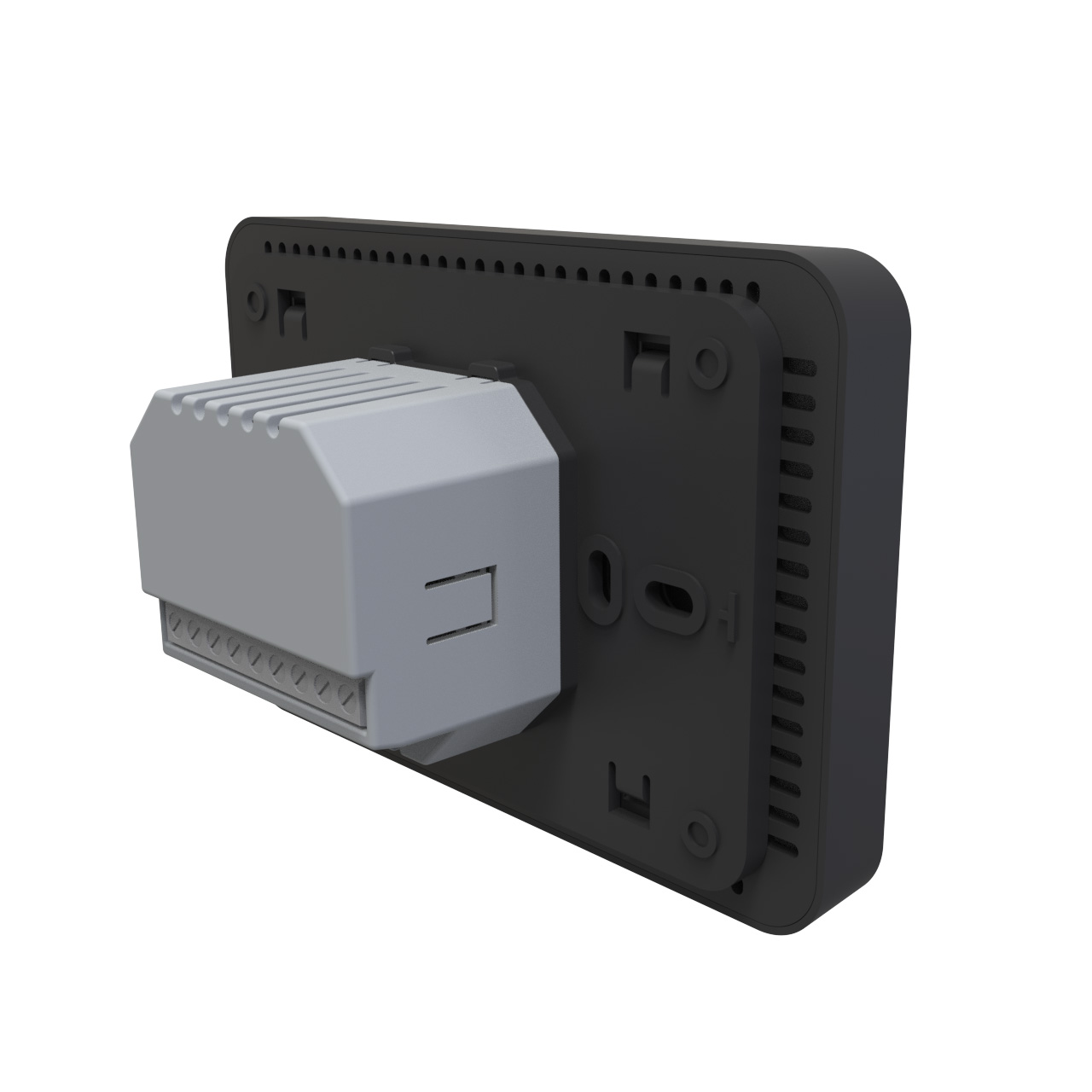

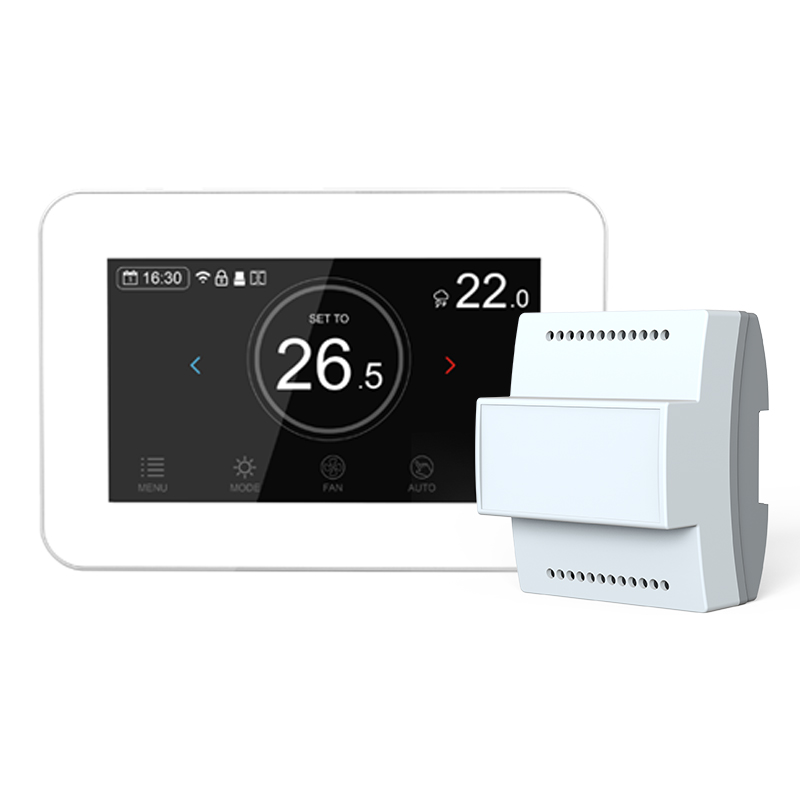

Notes: this FCU thermostat's relay module support max. 9 terminals, not all the functions mentioned above can intergrate into one unit, users can choose wiring accodingly.
| Display | 4.3” TFT Touch Display |
| Protocol | Optional: WiFi, Zigbee, Modbus RTU (RS485), BACnet MS/TP |
| Power Supply | AC24V or AC85-260V |
| Pipe | 2 Pipes/ 4 Pipes |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | 3 Fan Speeds Select & Auto Fan |
| 0-10V Modulating Control | 0-10V for Valve Control/ Fan Speed Control |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | Clock, Keycard, External Sensor etc. |
| Protection Class | IP20 |

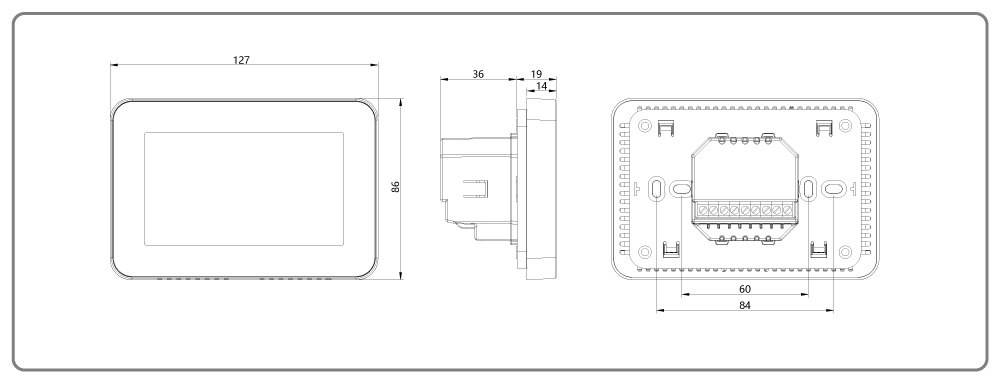

| Thermostat Dimension | 86X86X15.35mm |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE (RED/EMC/LVD), UKCA, FCC, ETL Listed, RoHS, REACH, ISO9001:2015, ISO14001:2015 |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
A: Yes, absolutely. As a professional OEM/ODM thermostat manufacturer since 2003, we don't just print logos. Our in-house R&D team can customize communication protocols (Modbus RTU, BACnet MS/TP, Zigbee 3.0, or custom WiFi/MQTT platforms) and modify hardware layouts to seamlessly integrate with your existing Building Management Systems (BMS) or HVAC equipment.
A: We offer flexible and highly competitive customization terms for global brands and distributors:
Brand Logo on Thermostats: FREE of charge with a minimum order quantity (MOQ) of 500 pcs.
Customized Packaging Box: Fully tailored layout and branding are available with an MOQ of 1,000 pcs.
A: We prioritize efficiency to match your project timelines:
Sample Orders: Dispatched within 3 working days for standard configurations.
Mass Production: Standard lead time is 25 days, backed by our mature supply chain and certified production lines to ensure on-time delivery for large-scale projects.
A: Our smart thermostats feature advanced IoT connectivity. They support stable smart phone app control compatible with both iOS and Android. For modern smart home and commercial automation, the system natively supports voice control via Amazon Alexa, Google Assistant, and can be configured to connect with Tuya or private cloud servers.
A: All E-TOP thermostats come with a 1-year factory warranty. Beyond the hardware warranty, we provide comprehensive B2B technical support, including wiring diagram verification, API/SDK documentation for app developers, and dedicated engineering assistance to ensure your field installation goes smoothly.
