This large touch screen FCU thermostat is desigend for heating and cooling by means of fan coil units in commercial and residential buildings.
FT-CS03 is a colorful 4.3-inch capacitive touch screen wifi thermostat for FCU, it is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications. This modulating HVAC thermostat detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature. In the event of a deviation, the heating valve is opened in heating mode, and the cooling valve is opened for cooling mode. At the same time, the connected fan is activated depending on the control deviation and the set configuration. A connectable remote sensor can be used either for detecting the room temperature or as a changeover sensor in 2-pipe systems. Additionally, it supports BACnet communication protocol, enabling seamless integration with building automation systems (BMS) for centralized monitoring and control of the thermostat.

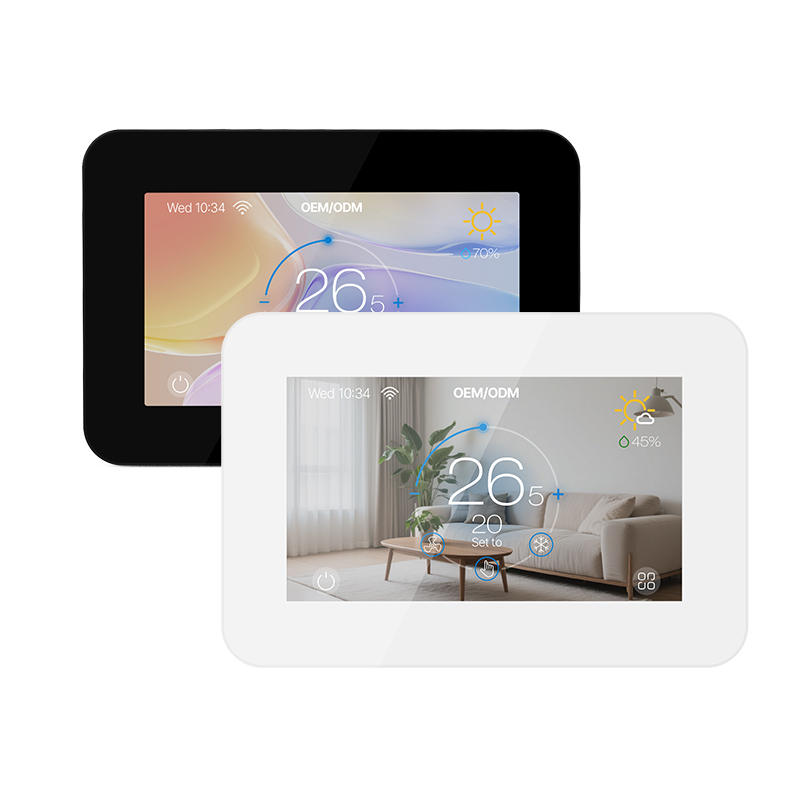

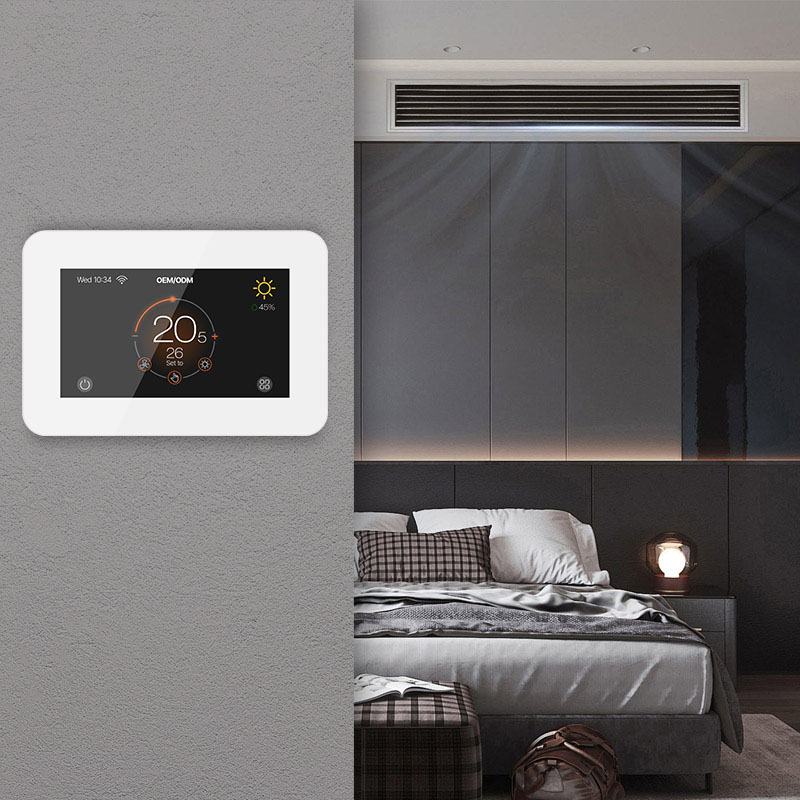

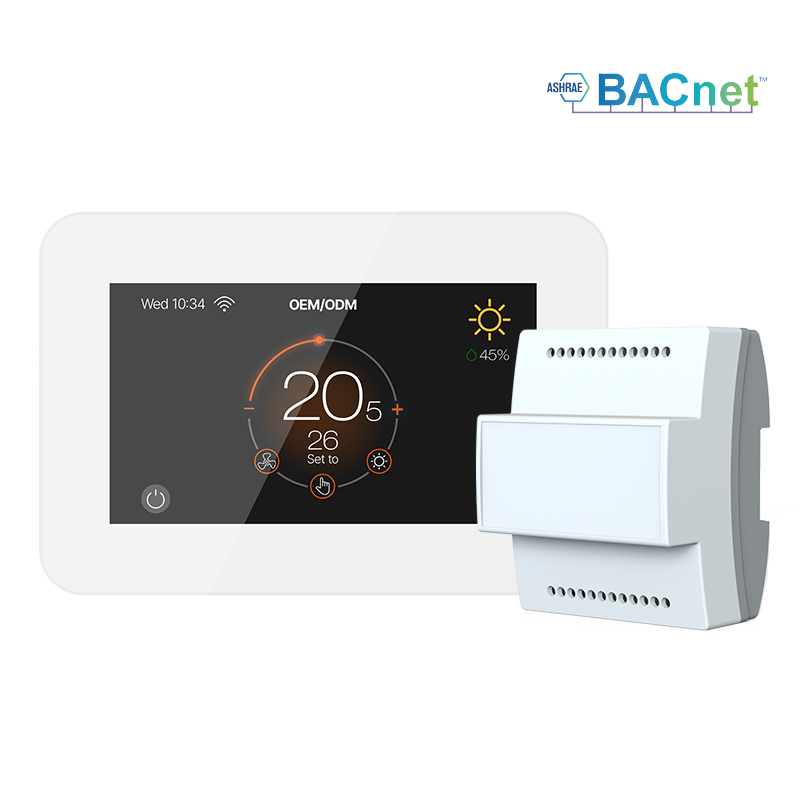

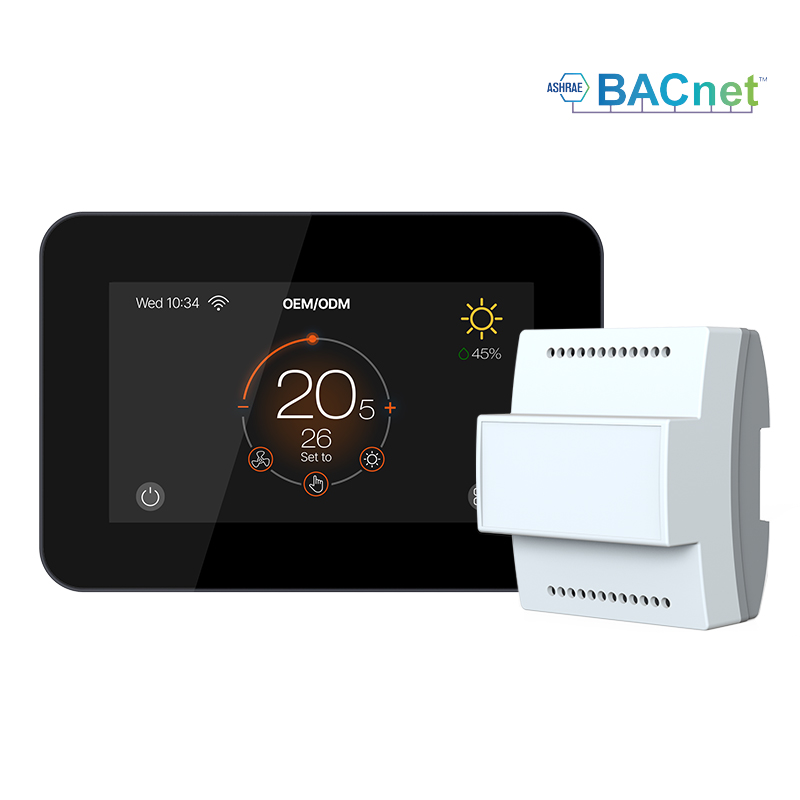

Product Display:
Wiring Diagram:
Notes: this FCU thermostat's relay module support max. 9 terminals, not all the functions mentioned above can intergrate into one unit, users can choose wiring accodingly.
| Display | 4.3” TFT Touch Display |
| Protocol | WIFI, Zigbee, Modbus,RS485, Bacnet |
| Power Supply | AC24V or AC85-260V |
| Pipe | 2 Pipes/ 4 Pipes |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | 3 Fan Speeds Select & Auto Fan |
| 0-10V Modulating Control | 0-10V for Valve Control/ Fan Speed Control |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | Clock, Keycard, External Sensor etc. |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X15.35mm |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
Q: Are you manufacturer?
A:Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
This large touch screen FCU thermostat is desigend for heating and cooling by means of fan coil units in commercial and residential buildings. Item No.: FT-CS03 For 2- or 4-pipe fan coil units Valve control via 2-point or 0…10 V output Supports 3-speed fans or fans with EC motor 7 days 4 perioods programmable Support Modbus/RTU management control BACnet management control (Optional) Non-Volatile memory to keep program settings and setpoints during a power outage Child Lock (Optional) External Sensor (Optional) Occupancy sensor (Optional) WIFI Remote Control (Optional)
