E-top Wired & Wireless underfloor heating wiring centre

An 8-zone floor heating controller is a wiring centre designed to control and manage the operation of an underfloor heating system with multiple zones. It allows for individual control and temperature settings in up to 8 different areas or rooms within a building.

E-Top as room thermostat manufacturer, we provide both wired and wireless underfloor heating wiring centre.

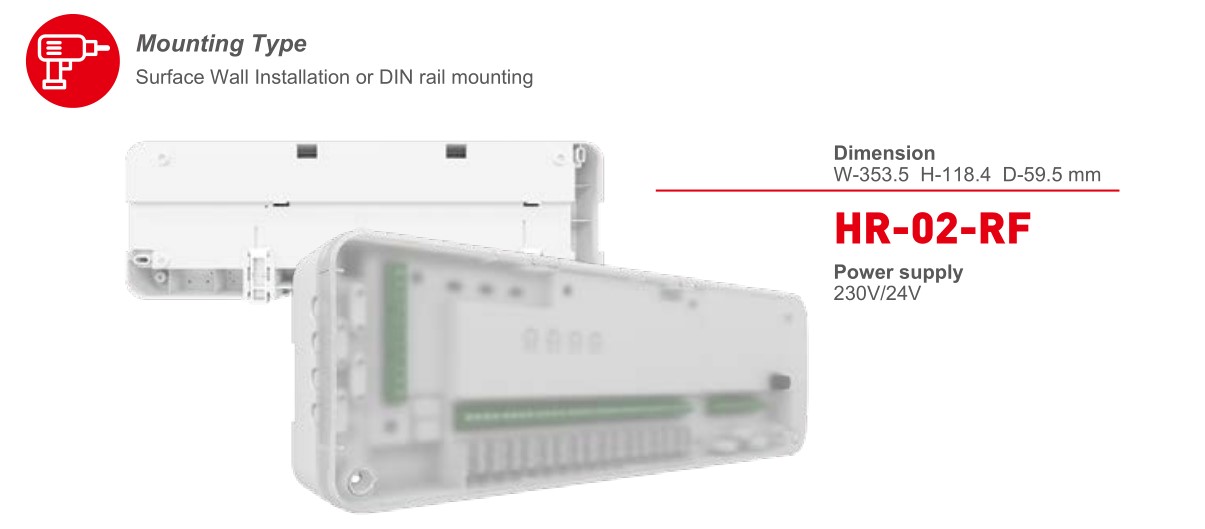

Wireless 8 zone floor heating controller:

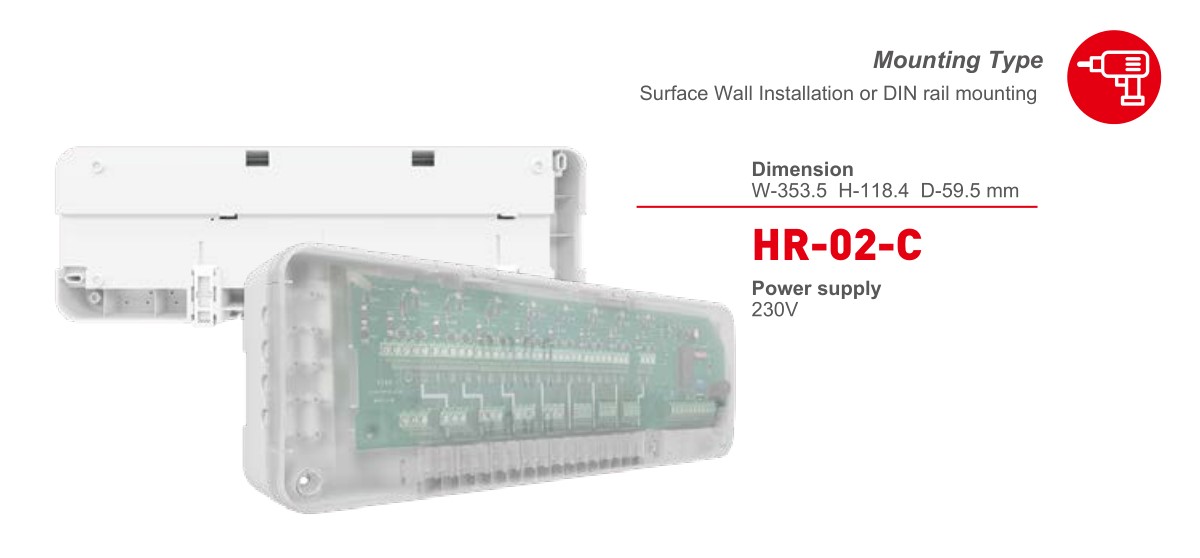

Wired 8 zone floor heating regulator:

Such underfloor heating wiring centre is typically installed in a central location and connected to the underfloor heating system's wiring. It features separate control outputs or relays to connect and control the heating elements in each zone or room.

·       Controlling up to 40 thermoelectric actuators with the use of 8 output. ( each output max.  5 actuators)

·       Can work up to Max 8 room thermostats

·       One 230Vac output for a circulation pump

·       One voltage-free really to control an additional heating device ( gas boiler or heat pump)

·       Convenient wiring and installation

·       DIN rail function

·       Terminals for wiring

·       Mobus ( optional)

Any more information about such wiring centre, please contact us from info@etopcontrols.com
