The HR-02C is an advanced 8-zone wired floor heating controller designed to manage thermal actuators and motorized valves requiring a 230V AC signal. This professional wiring centre enables independent room-by-room temperature regulation while offering a volt-free output to directly control boilers or heat pumps. Up to 5 thermoelectric thermal actuators can be securely connected to each individual zone.
Underfloor heating systems are a highly effective and economical way to heat modern residential and commercial properties. They deliver superior thermal comfort coupled with tangible energy savings. To achieve maximum efficiency, you need a centralized control system that precisely regulates the heat delivered to each individual room. The wired floor heating controller is a specialized, modern device designed to manage temperature independently across multiple zones. Deploying a reliable water underfloor heating thermostat alongside this 8-zone controller saves valuable installation time and guarantees full thermal comfort throughout the entire building.

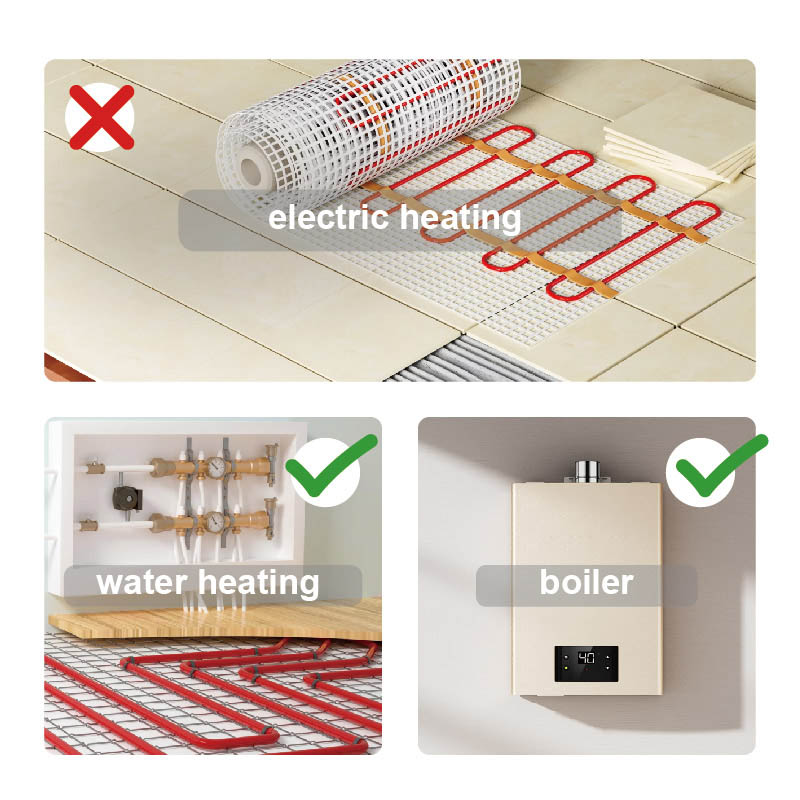

Built specifically for European hydronic heating networks, this multi-zone wiring centre acts as the central nerve system for your underfloor heating setup. It efficiently coordinates room thermostats, thermal actuators, circulator pumps, and boilers.
To accommodate diverse regional installation requirements, our wiring systems support robust configuration options—including 230V standard and 24V options—ensuring complete compliance with local contractor preferences and safety codes.
| Name | Multi-zone Wireless Wiring Centre for Underfloor Heating |
|---|---|
| Power Supply | 230Vac |
| Boiler Output | Voltage-free |
| Pump Output | 230Vac |
| Max. Current | 5(2) A for each output |
| Frequency | 868MHz (Works with RF thermostats) |
| Relative Humidity | Max. 85% |
| Accuracy | ±0.5 ℃ |
| Protection Class | IP20 |
| Dimensions | 353.5mm × 118.4mm × 59.5mm |
| Materials | ABS+PC (RoHS Certified) |
| Certificates |
|
| OEM & Customization |
|
A: Yes. The controller features a dedicated 230Vac output for the main circulation pump and an integrated voltage-free (dry contact) relay output specifically designed to safely trigger secondary heating devices like gas boilers or heat pumps when there is a heating demand.
A: The HR-02C supports up to 8 independent heating zones. Each zone can safely handle a maximum of 5 thermoelectric actuators, allowing you to connect up to 40 actuators in total across the entire wiring system.
A: Absolutely. The device is designed with standard DIN rail mounting capabilities, making it highly convenient for professional electricians and HVAC contractors to securely and neatly install it within standard electrical distribution boxes.
The HR-02C is an advanced 8-zone wired floor heating controller designed to manage thermal actuators and motorized valves requiring a 230V AC signal. This professional wiring centre enables independent room-by-room temperature regulation while offering a volt-free output to directly control boilers or heat pumps. Up to 5 thermoelectric thermal actuators can be securely connected to each individual zone. Technical Specifications & Features: Item Model:HR-02 / HR-02C Zone Capacity:Controls up to 40 thermoelectric actuators across 8 independent channels (max. 5 actuators per output). Thermostat Compatibility:Fully compatible with up to 8 room thermostats. Circulation Pump Output:Dedicated 230Vac output for controlling main circulation pumps. Boiler / Heat Pump Integration:Integrated voltage-free relay output to safely control secondary heating devices (gas boilers or heat pumps). Installation Friendly:Convenient terminal layout designed for fast, clean contractor wiring. Mounting Standard:Supports standard DIN rail mounting for secure electrical cabinet integration.
