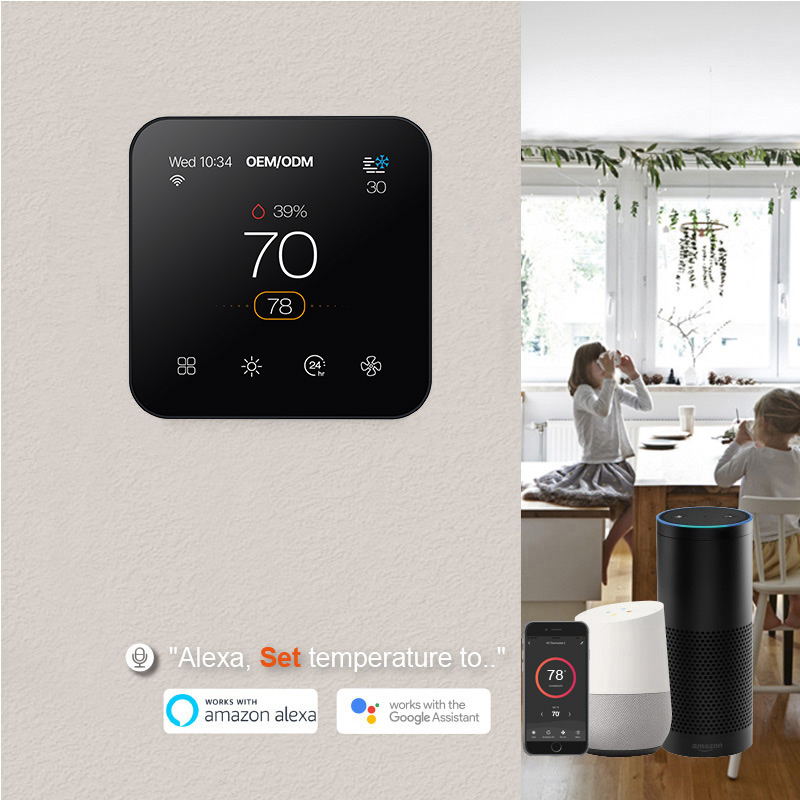

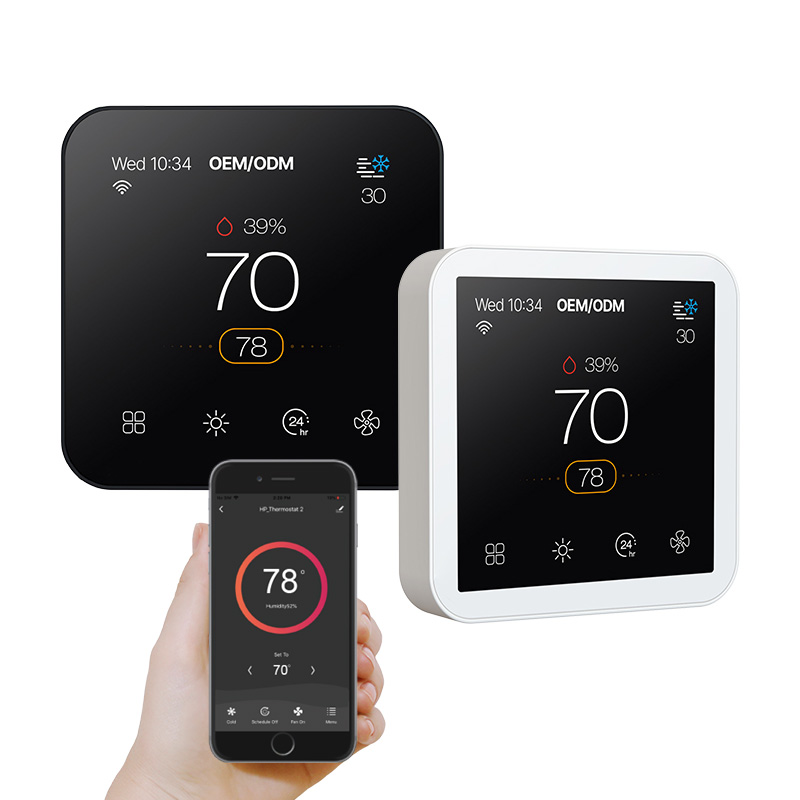

The CH7600 is a professional-grade WiFi Smart Thermostat optimized for multi-stage heat pump systems (up to 3H/2C). Engineered for OEM/ODM clients by E-TOP Controls, it features advanced algorithms to maximize heating efficiency and minimize costly auxiliary heat activation. This TFT touch-screen controller provides a premium, white-label solution for HVAC distributors seeking reliable, high-end climate control technology.
The CH7600 stands out in the HVAC market by combining high-end industrial design with robust multi-protocol connectivity. It is not just a thermostat; it is a central hub for home comfort management.

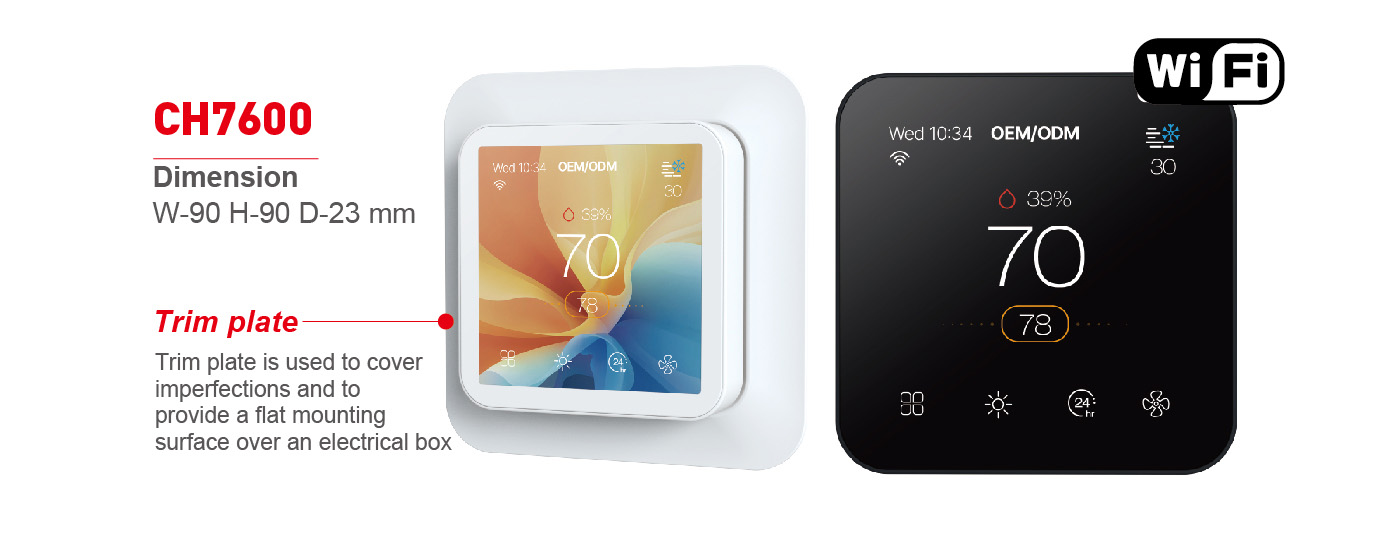

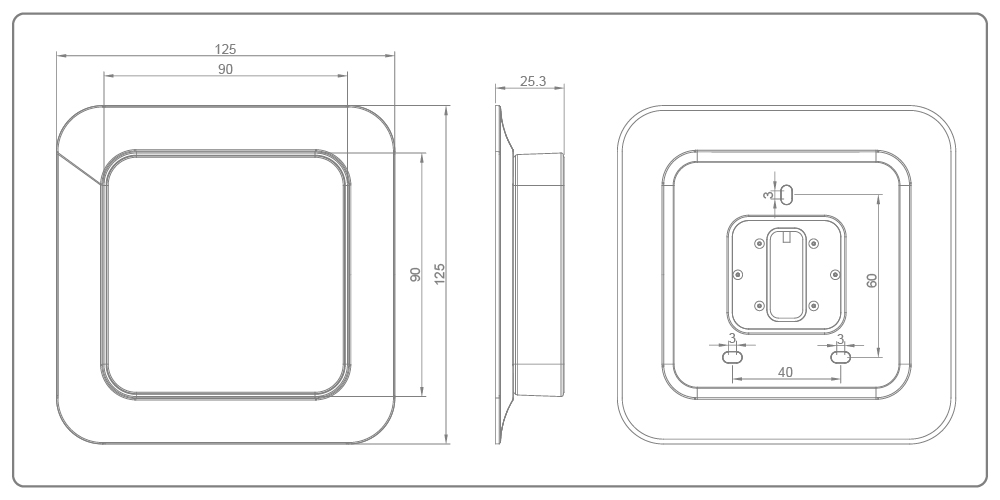

Retrofitting is made simple with our included Trim Plate. Measuring 125x125mm, it is designed to cover imperfections on the wall from old devices and provides a sleek, flat mounting surface over any standard electrical box.
Compatible with Amazon Alexa and Google Assistant, the CH7600 allows users to adjust temperatures with simple voice commands. It seamlessly integrates into the Tuya Smart or Smart Life ecosystem, providing a consistent smart home experience.

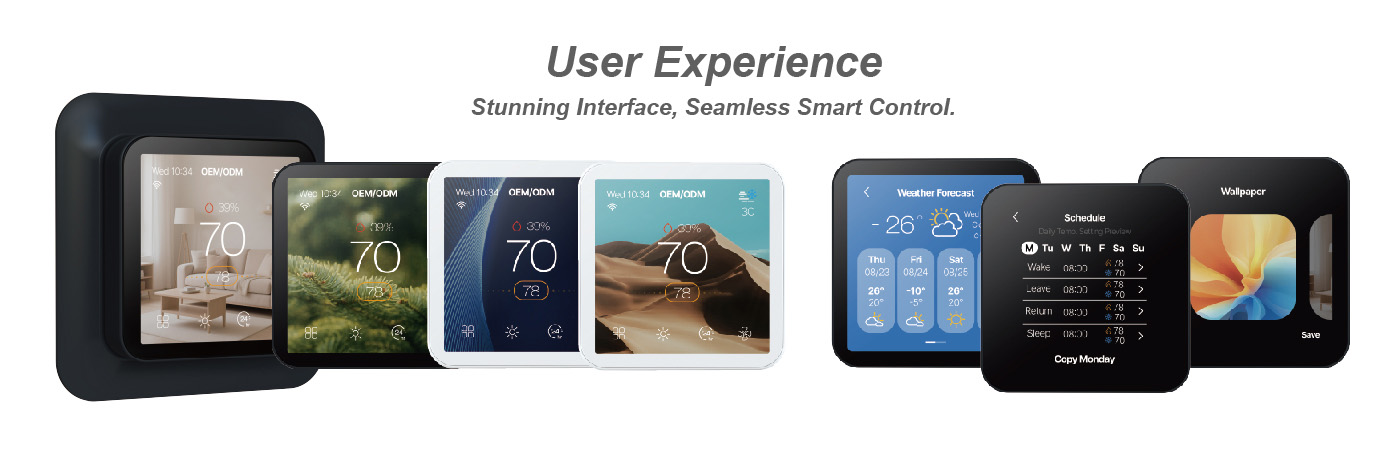

Featuring a high-resolution TFT Capacitive Touchscreen, the CH7600 offers an unparalleled user experience.
Dynamic Interface: Vibrant colors and intuitive icons make scheduling and setting adjustments effortless.
Weather & Humidity Display: Keep track of outdoor conditions directly from your wall controller.

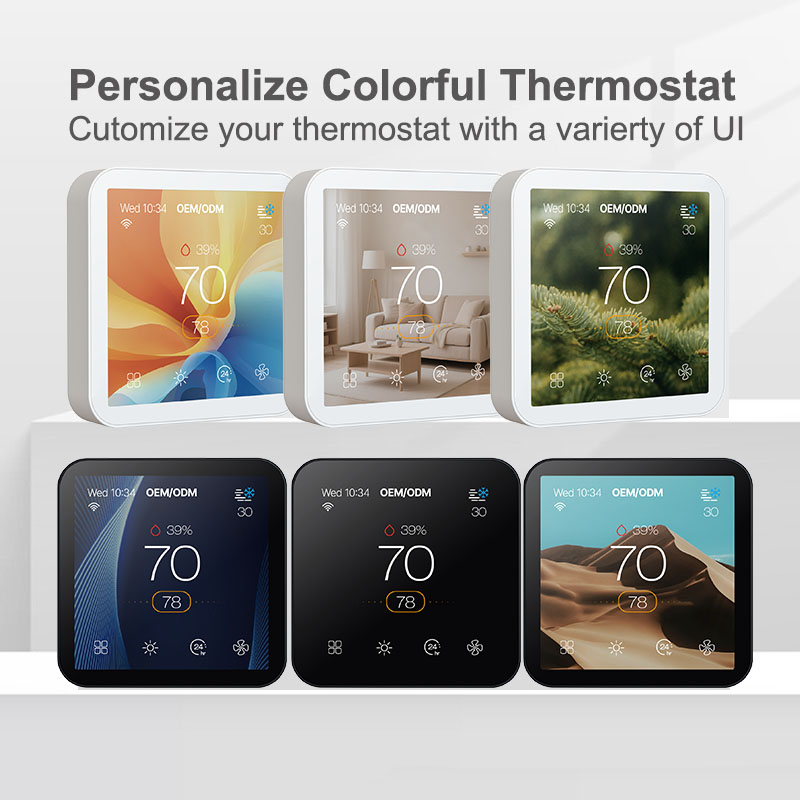

Personalized Themes: Multiple wallpaper options to match your interior design.
System Versatility: Compatible with Heat Pump (3H/2C), Conventional HVAC (2H/2C), and both 2-Pipe & 4-Pipe Fan Coil systems.

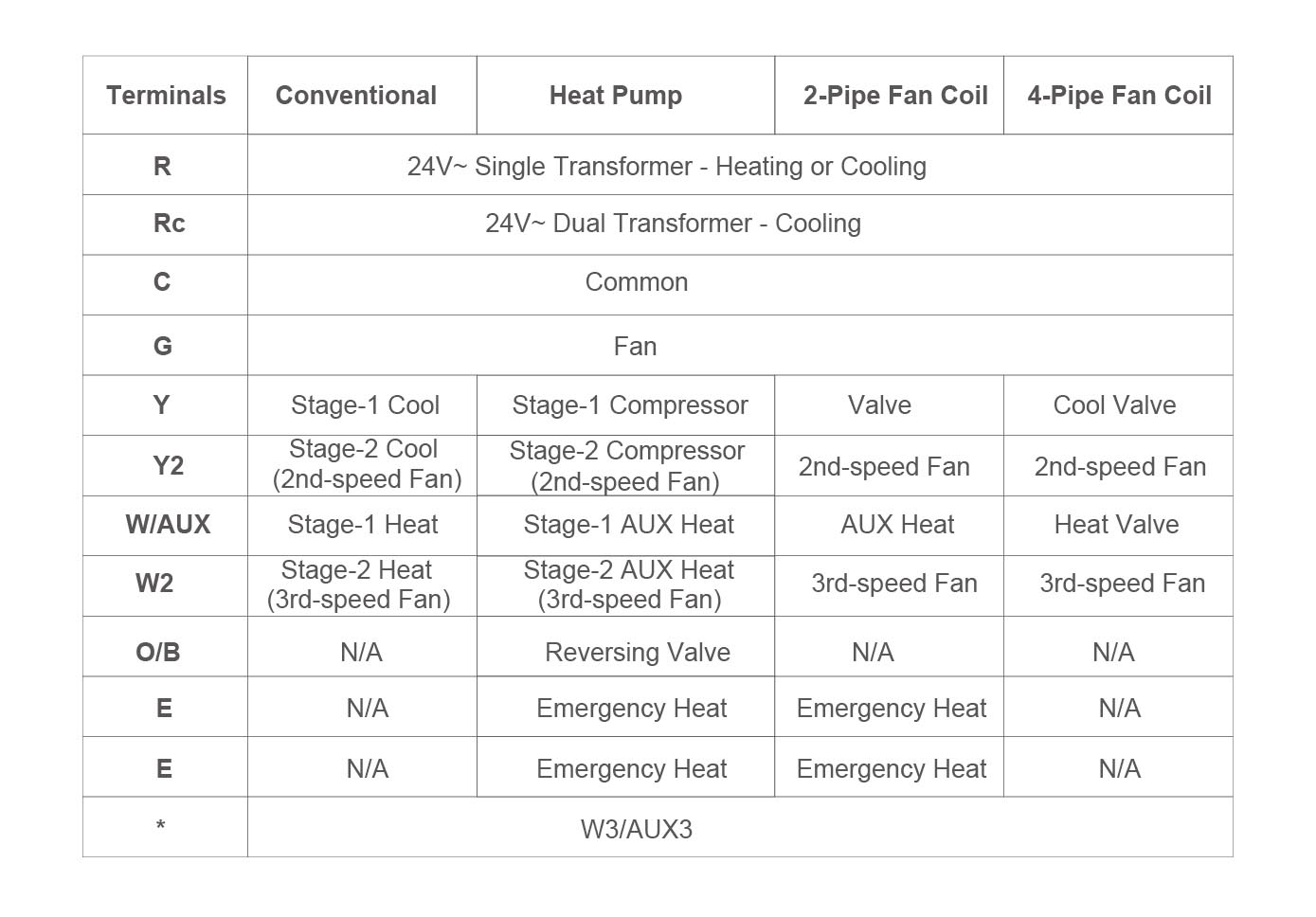

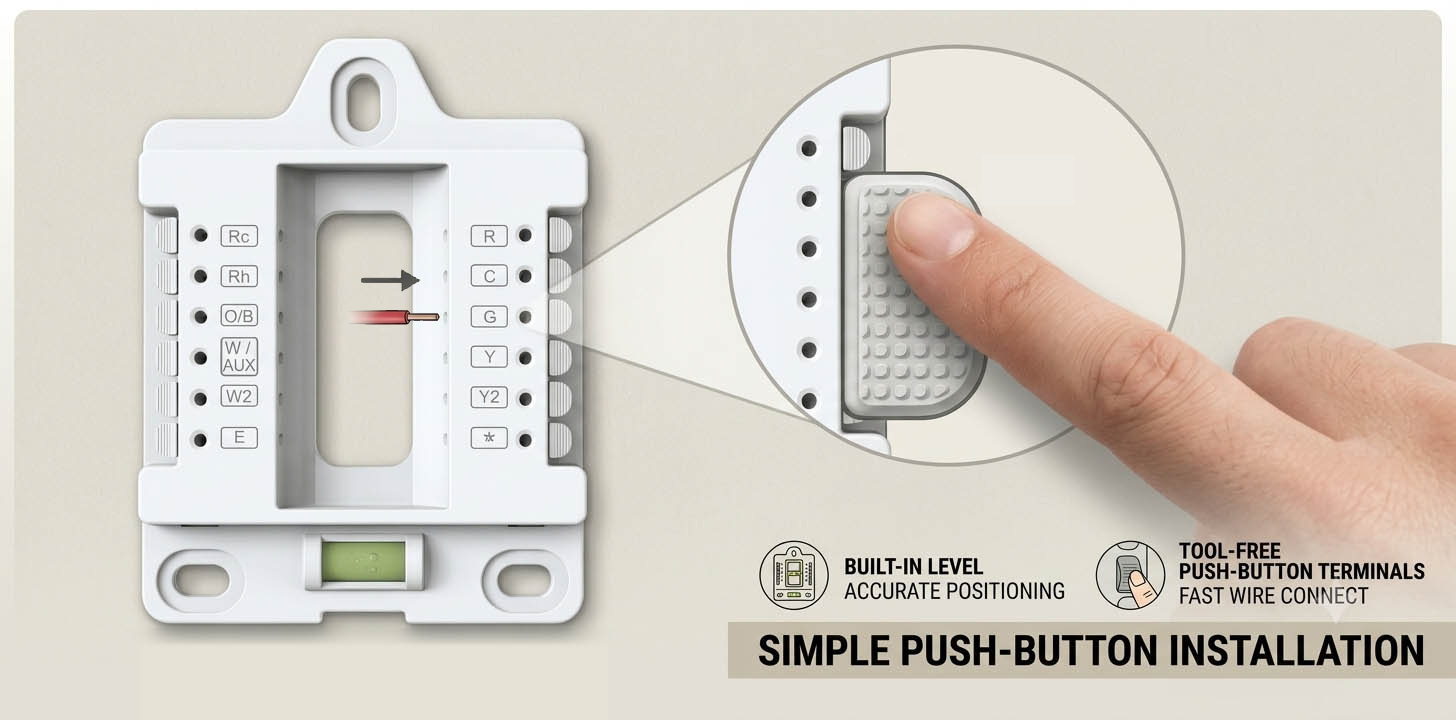

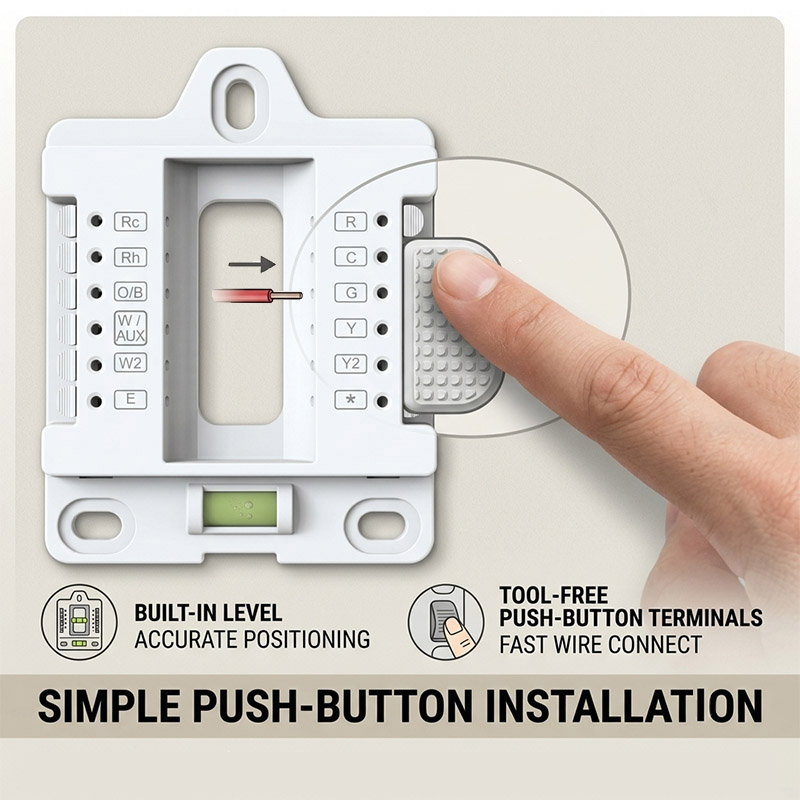

Dedicated Terminals: Includes specialized terminals for Emergency Heat (E) and Auxiliary Heat (W/AUX) to ensure comfort during extreme weather.

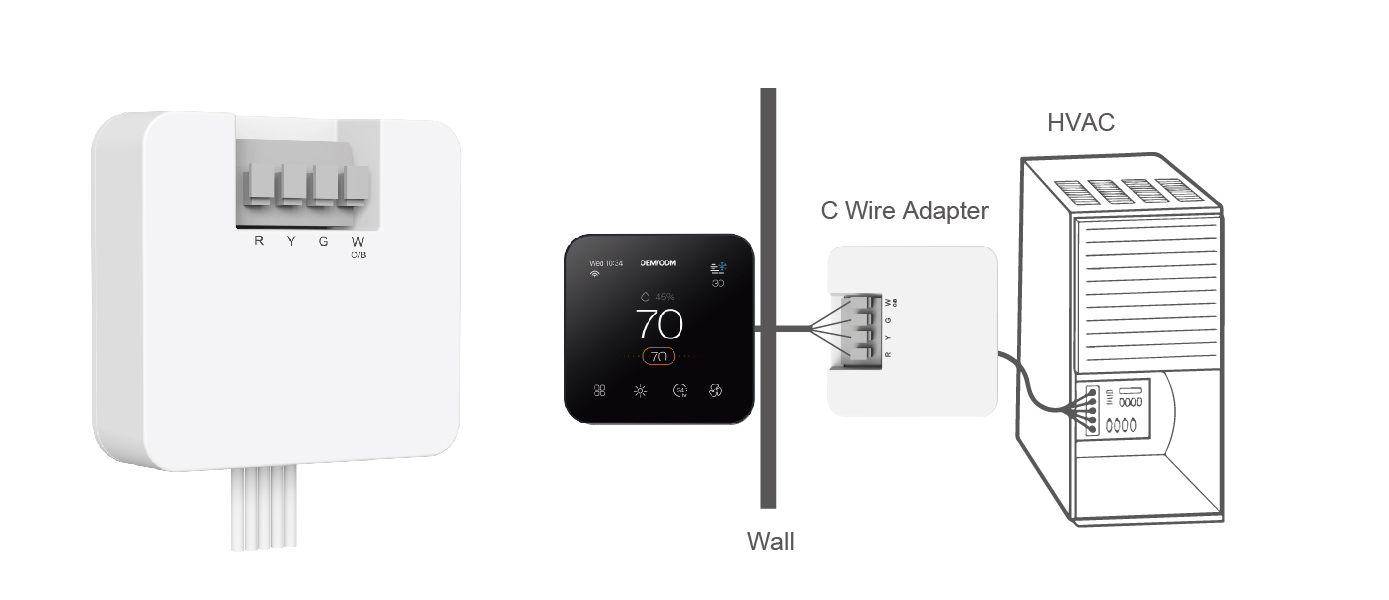

C-Wire Reliability: Requires a 24V Common Wire to ensure a stable, uninterrupted power supply for the high-resolution TFT display.
ISO Certified Production: Every CH7600 unit is manufactured in an ISO 9001:2015 and ISO 14001:2015 certified facility.
Compliance Standards: Fully certified with CE (RED/EMC/LVD), RoHS, and FCC marks for global market access.
OEM Experience: Backed by E-TOP Controls, a professional manufacturer with over 20 years of experience (since 2003) in ODM/OEM services.
| Display |
|
| System Compatibility | Conventional (2H/2C), Heat Pump (3H/2C), 2/4-Pipe Fan Coil |
| Multi-Protocol | WiFi (2.4GHz), Zigbee, Modbus RTU, and Optional BACnet MS/TP |
| Power Supply | 20 to 30 VAC, 50/60 Hz (C-Wire required for constant power) |
| Output Rating | 0.5 A each (Y, Y2, W/AUX, W2, G) |
| Set Temp. Range |
Heat/Cool 41~ 95°F (5~35℃) Auto- Heat 41~91°F (5~33℃) Auto- Cool 45~95°F (7~35℃) |
| Accuracy | ±1°F (±0.5°C) for precise temperature modulation |
| Operation Modes | Cool, Heat, Auto Mode, Fan Mode, Emergency Heat |
| Programmability | 7 Days 4 Periods (Fully customizable via device or App) |
| Modes | Cool/Heat/Heat&Cold/Fan Mode |
| Fan Speed | Fan On/Fan OFF |
| Programmability | 7 days 4 periods ( Customizable) |
| Protection Class | IP20 |
| Thermostat Dimension | 90X90X23mm (Ultra-slim design) |
| Material | Fire-resistance ABS+PC (RoHS & Reach compliant) |
| Certificate | CE (RED/EMC/LVD), RoHS, FCC, ETL |
| Quality Assurance | ISO 9001:2015 Quality Management System certified manufacturing |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
A: Yes. E-TOP Controls is a professional ISO 9001:2015 certified ODM & OEM thermostat manufacturer established in 2003. We provide end-to-end services from R&D to mass production.
A: Yes. We offer free logo printing on hardware for orders meeting a MOQ of 500pcs. This helps you build your brand authority without extra cost.
A: Yes. We provide customized packing boxes (MOQ 1000pcs) and can tailor the User Interface (UI) and control logic to match your specific market needs.
A: We offer fast turnaround: 3 working days for samples and approximately 25 days for mass production orders.
A: Yes. The CH7600 is designed for advanced HVAC systems, supporting 3H/2C configurations. It manages Stage-1 & Stage-2 AUX Heat as well as Emergency Heat (E) to ensure comfort and energy efficiency.
A: Absolutely. In addition to residential WiFi/Zigbee, the CH7600 supports Modbus RTU and BACnet protocols, making it ideal for commercial building automation and project-based sales.
A: Yes, a 24V C-wire (Common Wire) is required. This ensures the high-resolution TFT screen and WiFi module have a stable power supply for 24/7 smart connectivity.
A: Yes. It is fully compatible with Amazon Alexa and Google Assistant for voice commands and supports Tuya Smart / Smart Life app integration.
