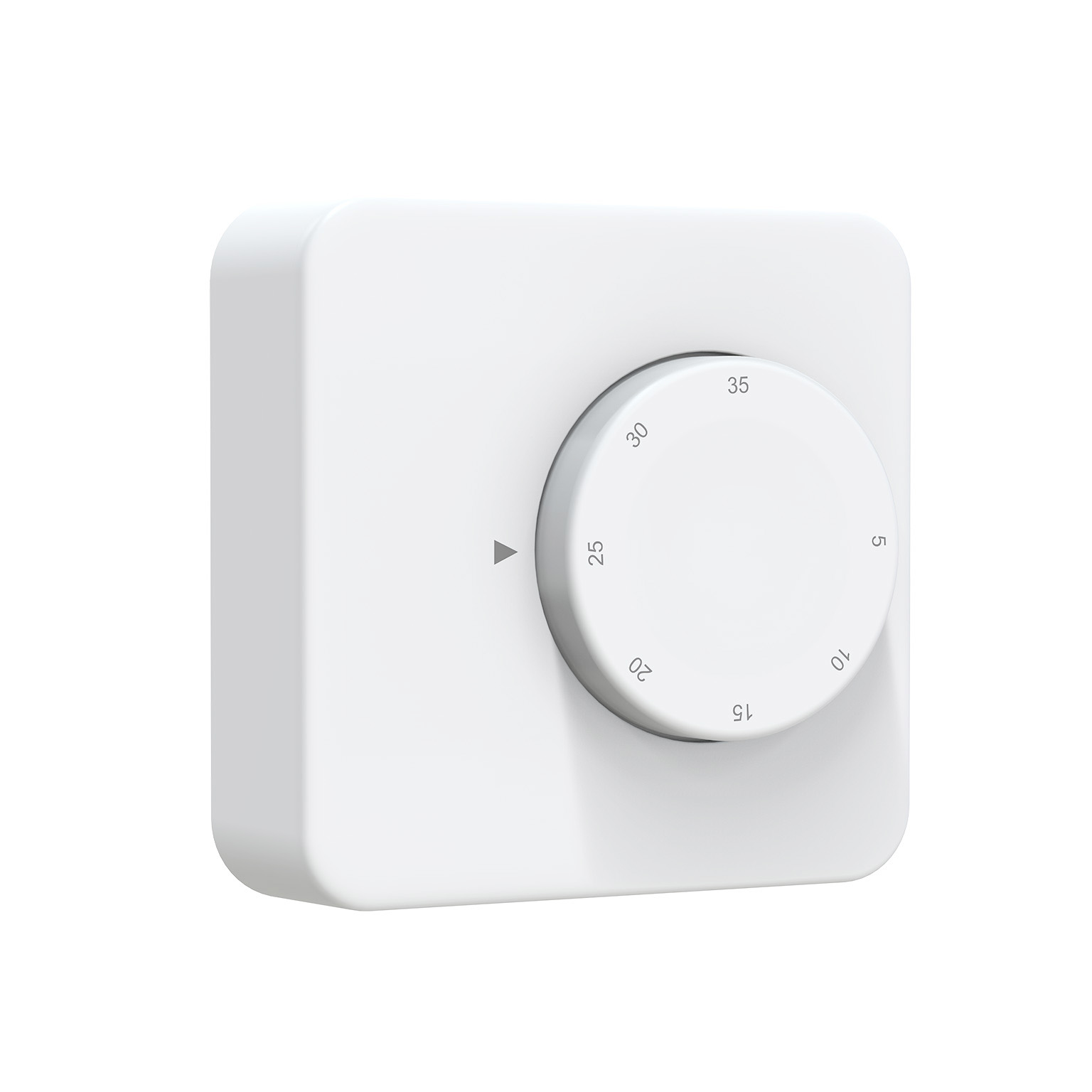

This simple mechanical room thermostat is used in heating only systems to maintain the selected room temperature. If the room temperature falls below the selected setpoint, the heating system will be opened. If the room temperature exceeds the selected setpoint, the heating system will be closed.
Typical use:
• Residential buildings
• Apartments
• Commercial spaces
• Gas boiler or oil buners
• Certificates: CE, ROHS
Mechanical room thermostats are the traditional and standard type of thermostat, typically found mounted to an internal wall.

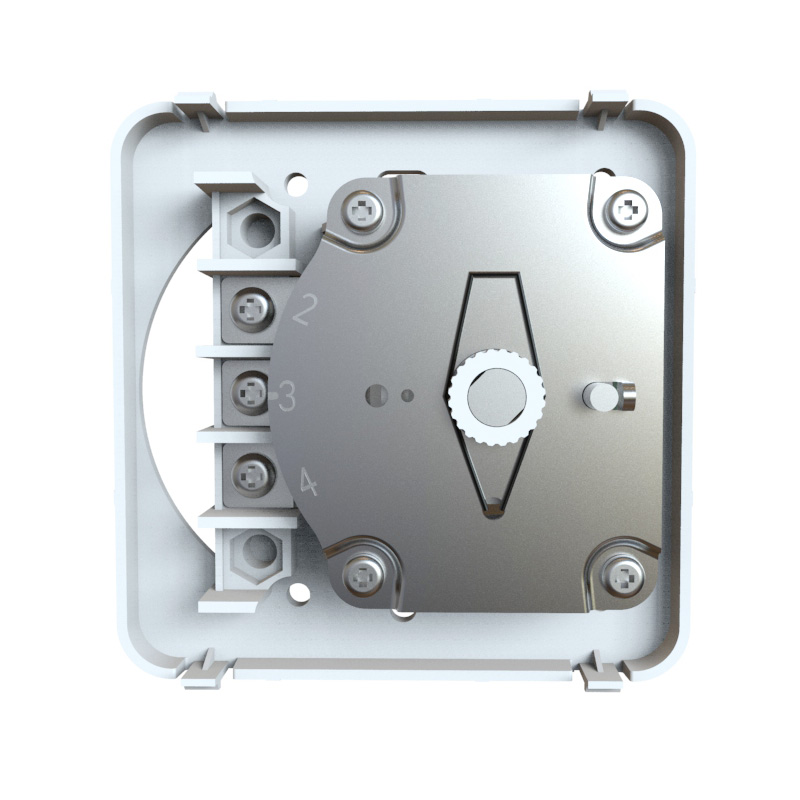

Mechanical gas boiler thermostats help to regulate the temperature using two pieces of different metals laminated together to form a bimetallic strip. The strip is a part of the electrical circuit that switches the heating system on when completed and switches it off when broken.
The two metals forming the strip have different expanding and contracting temperatures. So, at a given temperature, one of the metals will start expanding and the other will not. This slightly bends the strip and breaks the electrical circuit. When this happens, the electricity switches off. There is no more heating, so the room starts to cool down.
As the temperature decreases, the strip cools and returns to its original shape to complete the circuit. This turns the electricity back on along with the heating.
Such mechanical heating thermostat is wiredly used at gas boiler system or combined used with 8 zones wired wiring centre at water floor heating system.
Technical Parameters | |
Switching differential | 0.5C (default) |
Setpoint setting range | 5°C-35 °C |
Ambient | 0-50°C |
Accuracy | ±1 ℃ |
Protection Class | IP30 |
Sensor | R25℃=10KΩ β=3950 |
Rating | 3A, volt-free output |
Power supply | AC230VAC/50,60Hz |
Storage humidity | 50-95% |
CE Conformity | |
Low voltage directive | 2006/95/EC |
Product standard | EN 60730 |
EMC emission standard | AS/NSZ 4251.1:1994 |
Q: Are you manufacturer?
A:Yes. E-TOP is a professional ODM&OEM Thermostat manufacturer since 2003.
Q: Can i put my brand logo on thermostats?
A: Yes. It’s free when MOQ 500pcs.
Q: Can i have custimized packing box?
A: Yes. MOQ 1000pcs.
Q: What’s the delivery time after i place the order?
A: In 3 working days for samples and 25 days for mass production.
Q: What’s the warranty?
A: 1 year.
Q: Is the thermostat wifi control?
A: Yes. It’s smart phone app control, compatible with Android and IOS.
Q: Does the thermostat support Amazon Alexa and Google Assisstant?
A: Yes.
