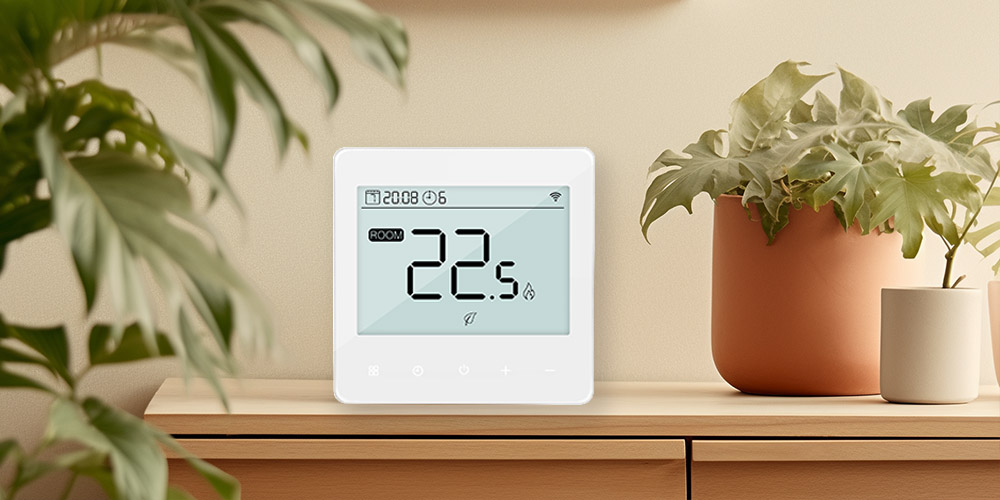

Underfloor & Fan Coil Unit Thermostat

This is a smart programmable room thermostat designed to work with underfloor heating system, floor cooling system and ceiling heat & cool system.  It allows you to control and automate your home’s heating and cooling system remotely using a mobile app. Such intelligent touch heating and cooling thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching on the cooling when the air temperature higher than the thermostat settings.

Functions:

a.    Large LCD display with tempered glass

b.    Intuitive touch button operation

c.     Work for both under floor radiant heating system or ceiling fan coil heating & cooling system

d.    Heating or cooling mode selection; Manual mode or PRG mode switch

e.    Low, meddle, high fan speed and auto fan control

f.      WiFi remote control

g.    Support Alexa or Google home voice control

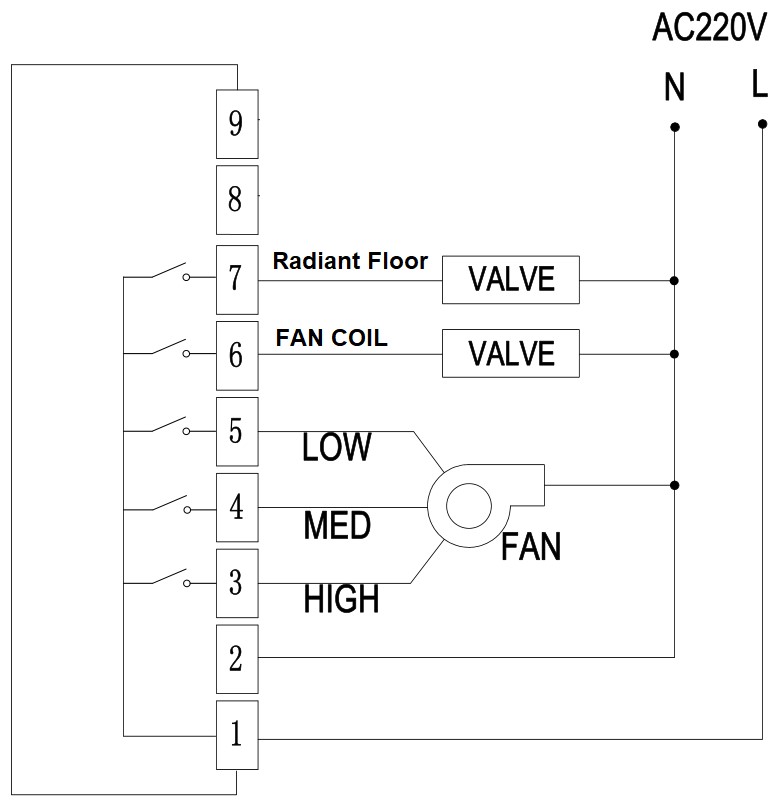

Underfloor System & Ceiling FCU system wiring diagram :

In order to meet the installation and control needs of different users' devices at home, E-Top smart heat pump wifi thermostat has been set as follows Control underfloor heating only

a.    Control underfloor heating :  Water pipe at underfloor runs hot water only.

b.    Control both underfloor heating or cooling: water pipes at underfloor run hot water at winter for heating, run cold water at summer for cooling

c.     Control ceiling fan coil heating or cooling only: Normally water pipe and fan coil units are installed here, it works exactly as a 2 pipe fan coil thermostat

d.    Both control underfloor & ceiling heating or cooling. For such application, the ceiling heating will work as 2 stage heating. Underfloor cooling work as 2 stage cooling.

For more information about such heat pump UFH & Fan coil thermostat, please email info@etopcontrols.com for details.
