How to Troubleshoot Common BACnet MS/TP Communication Failures in HVAC Systems

Sep 04, 2026

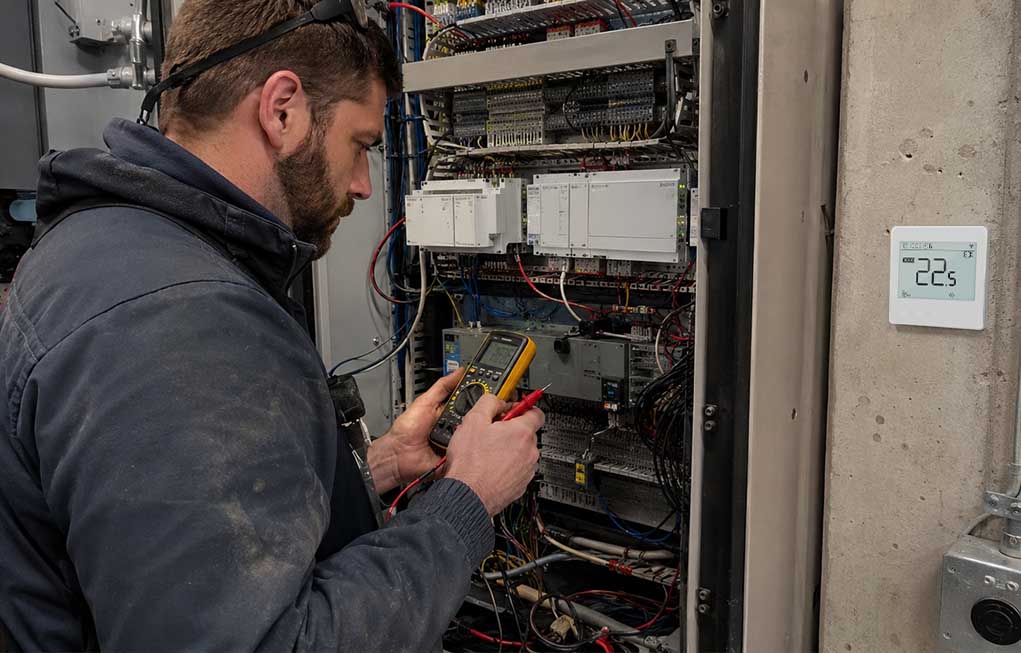

Troubleshooting BACnet MS/TP HVAC Communication Failures

Picture this: you’ve just finished wiring up an entire floor of new thermostats. You boot up the Building Management System (BMS), wait for the network to populate, and... half the devices randomly drop offline. It’s a massive headache. While BACnet remains the undisputed king of commercial HVAC communication, the MS/TP physical layer relies on a traditional RS485 serial bus. That means it is incredibly unforgiving when it comes to field wiring quirks.

If your front-end supervisor is struggling with slow token passing, bad packets, or phantom devices, don't blame the software just yet. The culprit usually hides in the physical layer. The engineering team at E-TOP Controls has put together this field survival guide to help you hunt down and fix the four most notorious network killers when integrating commercial BACnet MS/TP thermostats.

1. The Classic Polarity Flip and Topology Traps

It sounds basic, but physical wiring trips up more technicians than anything else. RS485 pushes differential signals across two main wires (usually marked as A and B, or D+ and D-).

Flipped Wires: If just a single thermostat out of forty has its positive and negative terminals reversed, it acts like an anchor, dragging the entire communication trunk down. Always verify polarity at every single drop.
No T-Taps Allowed: An MS/TP network isn't a free-for-all. It demands a strict daisy-chain layout. Splicing a wire down a side hallway (creating a star or T-tap topology) causes signal echoes that practically destroy data packets.

2. Mismatched Baud Rates (The Token Killer)

On an MS/TP network, devices pass a "token" around to take turns talking. For this to work smoothly, every single controller on that specific wire run must agree on the speed.

If the main trunk runs at 76800 bps, but a technician accidentally leaves a newly installed replacement thermostat at the factory default of 9600 bps, the token passing sequence crashes hard. That’s exactly why modern commercial thermostats (like those from E-TOP) feature simple, intuitive UI menus to quickly lock in and verify baud rates on the fly.

3. MAC Address Clashes

Every node needs a unique identity. On a standard BACnet MS/TP subnet, master devices typically use MAC addresses between 1 and 127. What happens if two units share address "45"? Total chaos. They will both try to grab the token at the exact same millisecond. The BMS will usually display them aggressively bouncing between online and offline states. Keeping a precise commissioning spreadsheet is your best defense here.

4. Forgetting the EOL Resistor on Long Runs

Electricity acts a bit like water in a pipe. If a signal travels down a really long wire (say, pushing past 1,000 feet) and hits a dead end, it splashes back. This reflection scrambles the incoming data. By terminating the chain with a 120-ohm End-of-Line (EOL) resistor at the very first and very last device, you effectively absorb that splash. Just remember: never put a resistor in the middle of the run.

Tired of Unstable Network Hardware?

E-TOP Controls engineers industrial-grade commercial thermostats built for rock-solid RS485 communication. Stop wasting hours troubleshooting cheap hardware and streamline your BMS integrations.

Talk to Our Engineers

Looking for a broader system architecture? If you are designing a complete building automation network, dive into our comprehensive guide on Commercial HVAC Control Solutions to see how BACnet seamlessly ties everything together.

Frequently Asked Questions (Troubleshooting)

+ How do I know if I actually need an End-of-Line (EOL) resistor on my RS485 network?

As a general rule, if your RS485 network spans more than 1,000 feet, or if you're pushing higher baud rates (like 76800 bps) and noticing weird packet losses, you're probably dealing with signal reflections. Slapping 120-ohm resistors at both extreme ends of the wire run will usually stabilize things immediately. Do not install them in the middle of the trunk.

+ Can I run different baud rates on the same MS/TP trunk?

Absolutely not. Every piece of hardware on a specific daisy-chain has to talk at the exact same speed (e.g., all set to 38400 or all set to 76800). Even one mismatched thermostat will completely disrupt the delicate token-passing loop and cause widespread communication failures.

+ What happens when two BACnet devices share the same MAC address?

They collide. Both units will see the token and try to transmit their data over the wire simultaneously. The result is corrupted garbage data, and you'll typically see both devices flickering between "Online" and "Offline" on your BMS dashboard. Every master device must have a unique MAC address between 0 and 127.

+ Is it acceptable to use T-Taps or star wiring for BACnet MS/TP?

No. Using T-taps or star wiring is one of the most common causes of intermittent MS/TP errors. The RS485 standard requires a strict "daisy-chain" topology. Splicing a wire down a side hallway creates signal reflections that bounce back and destroy data packets.

+ Do I really need to connect the signal ground wire in an RS485 network?

Yes. While RS485 is often referred to as a "2-wire" interface (A+ and B-), reliable data transmission always requires a return path for electricity. Failing to connect the signal ground (often a 3rd wire) can lead to unreliable communication, especially over longer distances where common mode voltage builds up.
