In the hospitality and real estate sectors, commercial HVAC control and energy consumption represent one of the largest operational expenses. Surprisingly, a significant portion of this energy is wasted heating or cooling empty rooms. For modern hotel developers and facility managers, integrating smart commercial FCU thermostats with key card switches or PIR occupancy sensors is no longer a luxury—it is an essential strategy for profitability and sustainability.
Industry data reveals that hotel rooms are unoccupied for up to 60% of the day, even when booked. Guests frequently leave their rooms for meetings, sightseeing, or dining, leaving the air conditioning or heating blasting at maximum capacity.
Traditional Fan Coil Unit (FCU) thermostats rely on manual operation. If a guest forgets to turn off the AC, the system runs continuously, accelerating hardware wear and tear and driving up electricity bills. Implementing a full-scale Building Management System (BMS) to monitor every single room can be prohibitively expensive for mid-sized hotels or retrofit projects. The ultimate solution lies in standalone, hardware-level automation.
The magic behind this energy-saving architecture lies in a simple yet powerful electronic component: the Dry Contact (also known as a volt-free contact).

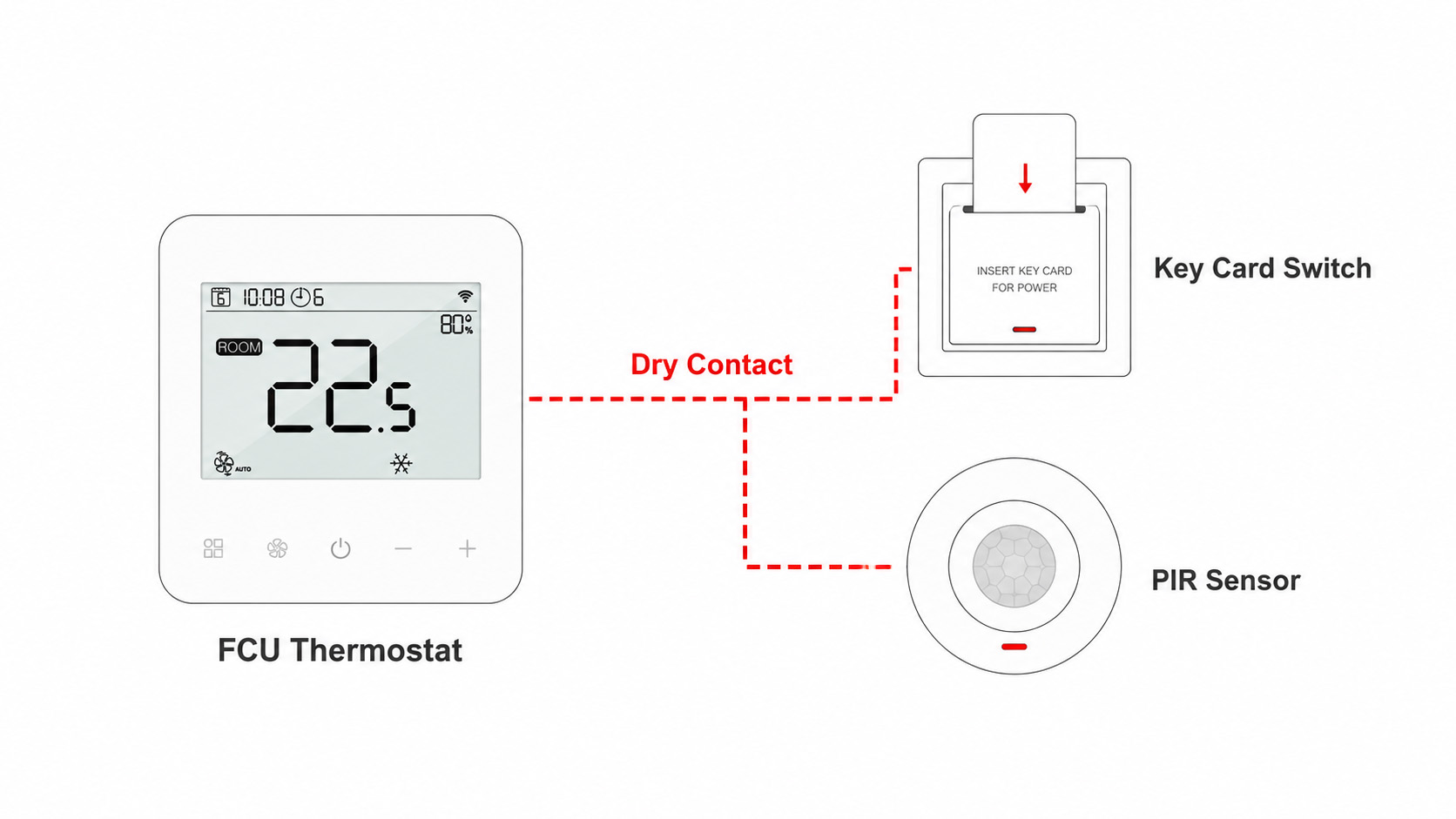

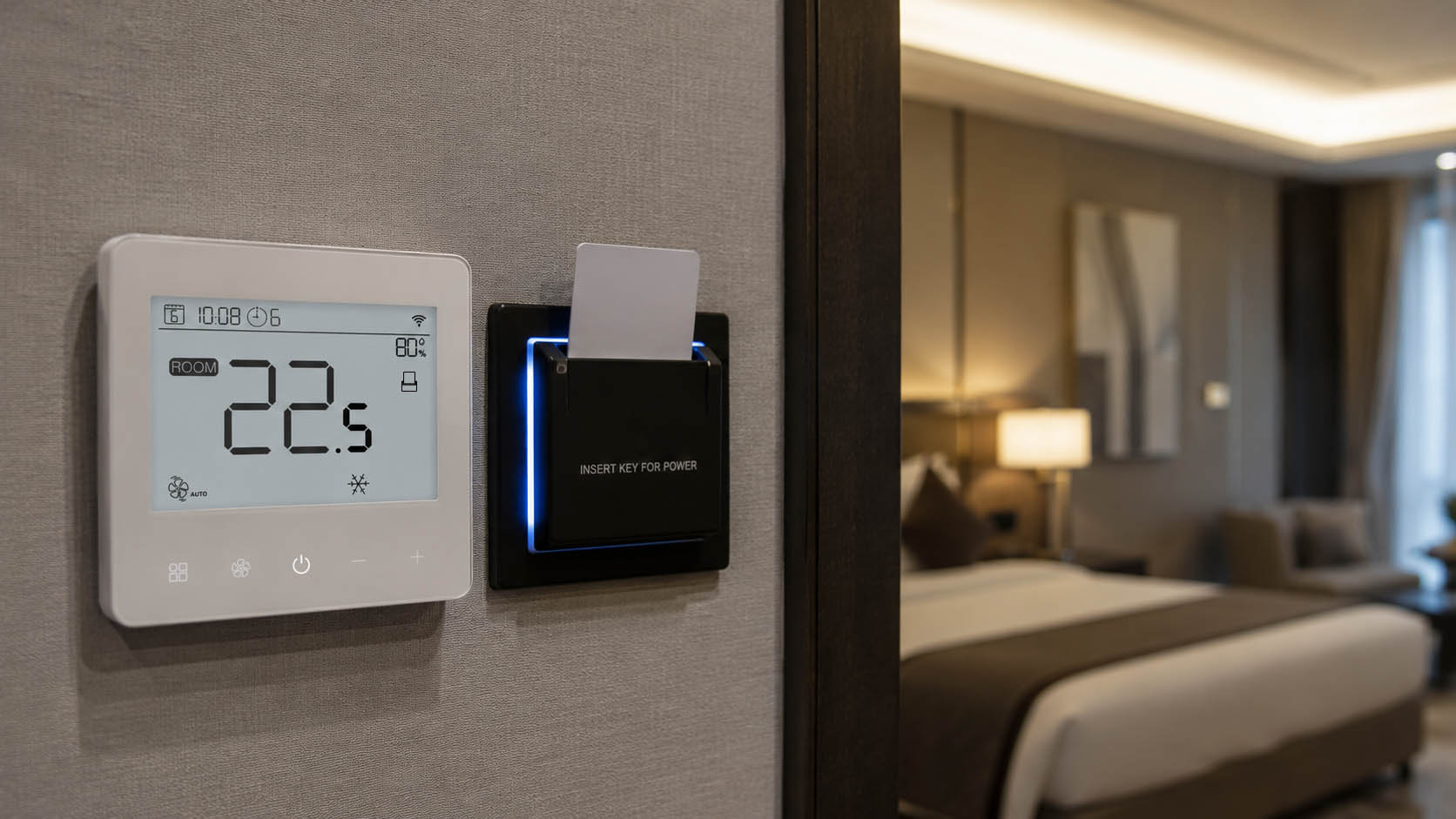

While standard thermostats only control temperature, professional hotel thermostats can be optionally equipped with specialized dry contact terminals tailored to project requirements. These terminals can be wired directly to the room's key card holder or a ceiling-mounted PIR (Passive Infrared) motion sensor. When a guest inserts their key card, the circuit closes, signaling the thermostat that the room is occupied. When the card is removed, the circuit opens, triggering the thermostat's energy-saving protocol.
Instead of aggressively shutting off the HVAC system completely (which leads to a stuffy room and complaints upon the guest's return), modern FCU controllers enter Setback Mode (ECO Mode).
Not all thermostats can handle the rigorous demands of commercial real estate. As an ISO 9001-certified OEM/ODM manufacturer with over 20 years of expertise, E-TOP Controls engineers hardware specifically for commercial resilience.
Our FCU series offers highly customizable options, including optional dry contact inputs, 2-pipe/4-pipe system compatibility, and advanced communication protocols (including BACnet and Modbus) for projects that eventually plan to upgrade to a centralized BMS. We empower HVAC brands and system integrators to deliver high-ROI, energy-efficient solutions to the hospitality industry.
Contact our engineering team to explore custom OEM/ODM solutions, optional dry contact features, private labeling, and sample testing for your next hotel project.
Request a QuoteYes. The beauty of dry contact FCU thermostats is that they operate as standalone units within the room. As long as you specify the dry contact option during ordering and can route a simple low-voltage 2-core wire from the key card holder (or a wireless PIR sensor) to the thermostat, you can achieve automated energy savings without upgrading the entire building's central network.
A key card switch physically requires the guest's card to activate the room's power and HVAC, which is highly reliable but guests sometimes leave spare cards in the slot. A PIR (Passive Infrared) sensor detects actual human motion and body heat. PIR sensors are fully automated and prevent the "spare card loophole," ensuring the HVAC setback mode always activates when the room is truly empty.
According to commercial HVAC case studies, implementing Setback Mode via key cards or occupancy sensors typically yields a 20% to 30% reduction in room HVAC energy consumption. Because cooling and heating account for the majority of a hotel's electricity bill, the Return on Investment (ROI) for these smart thermostats is often realized in less than 12 to 18 months.
