R06(FP) WiFi Receiver for Pilot Wire Heaters

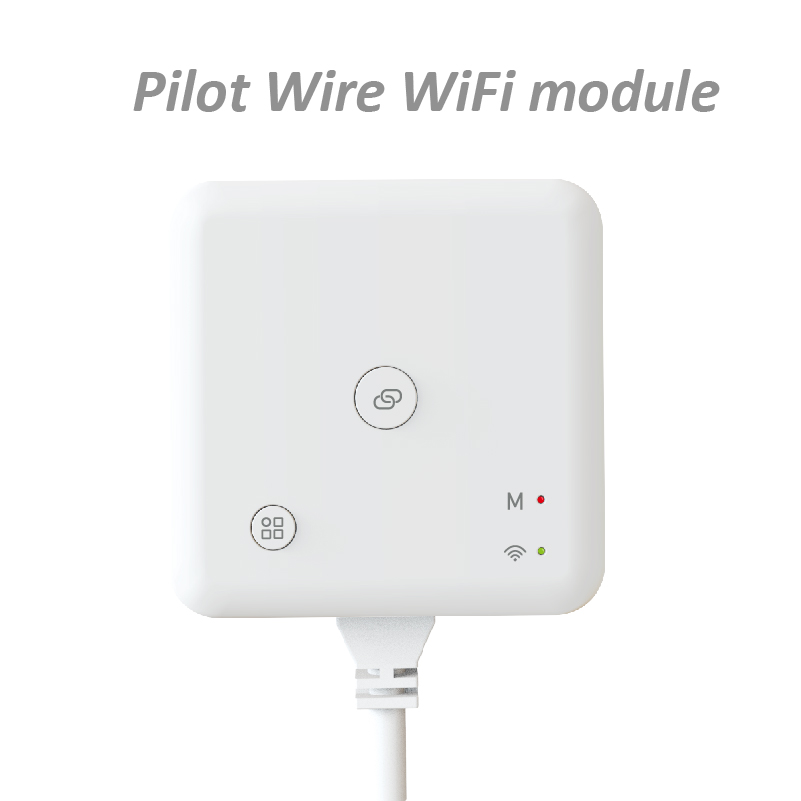

The R06(FP) is a specialized WiFi receiver module that brings smart cloud connectivity to traditional electric radiators. Unlike concealed in-wall modules, the R06(FP) is designed with physical LED indicators and an external NTC temperature sensor, ensuring highly accurate climate control while keeping users informed of the heating status at a glance.

External NTC Sensor & LED Indicators

To provide superior temperature regulation, the R06(FP) utilizes an external NTC probe. This design ensures that the heat emitted by the radiator does not interfere with the thermostat's readings. Additionally, the intuitive LED lights on the device instantly display network status and current heating modes (e.g., Comfort or OFF).

Comprehensive 6-Mode Fil Pilote Support

Fully compliant with French and European "Fil Pilote" standards, this receiver allows users to switch between 6 distinct modes directly from their smartphones:

Comfort: Maintains the standard set temperature.
Comfort -1°C & Comfort -2°C: Slight reductions for balanced energy saving.
Eco Mode: Lowers temperature for extended absences.
Anti-Frost (No Frost): Prevents freezing during winter trips.
Stop/Standby: Safely turns off active heating.

Tuya Smart Ecosystem Integration

Powered by the Tuya cloud platform, the R06(FP) connects directly to 2.4G home WiFi networks. End-users can utilize the TuyaSmart or Smart Life apps for 7-day programming, remote adjustments, and voice commands via Amazon Alexa and Google Assistant.

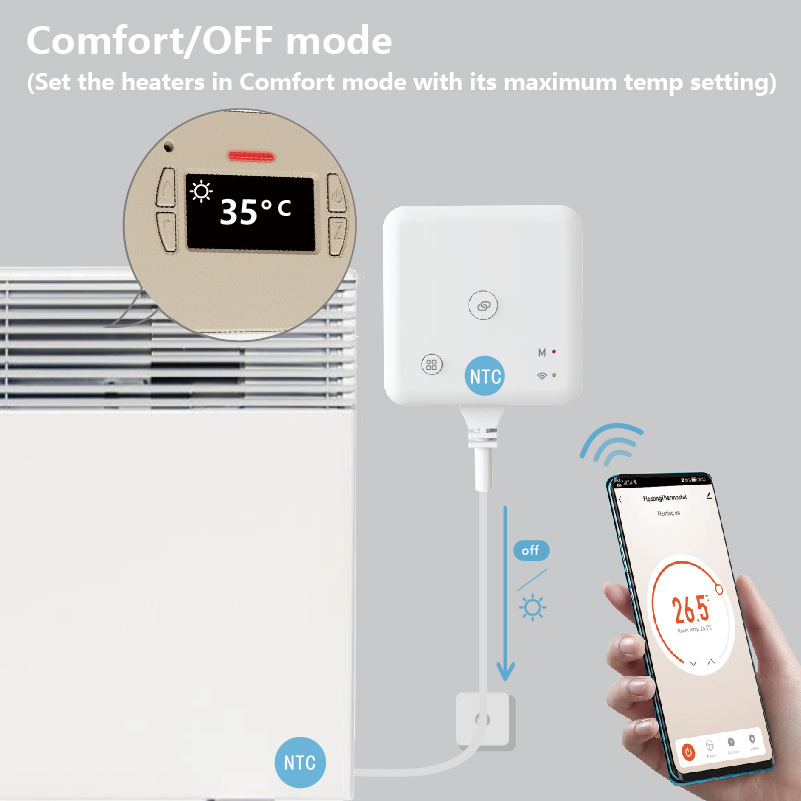

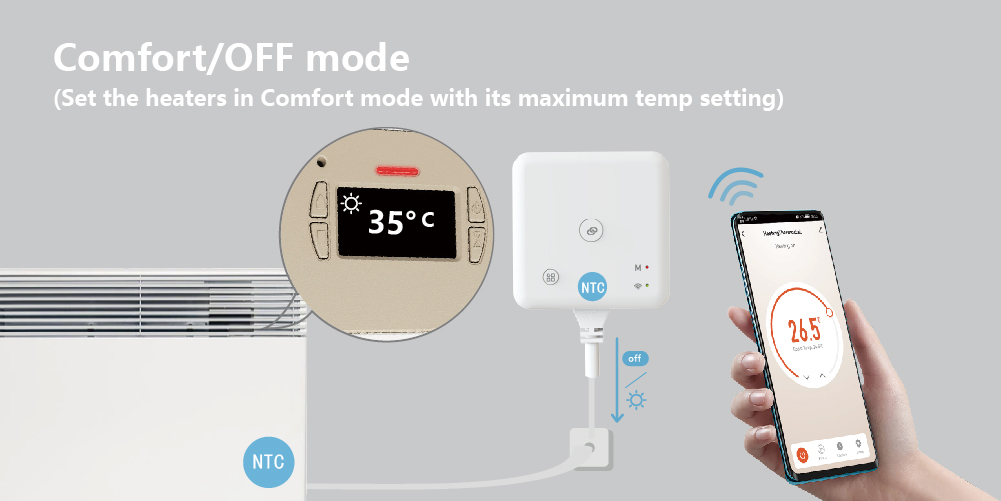

R06(FP) pilot wire wifi receiver showing Comfort mode setting and NTC sensor placement

Certifications & Global Compliance

Our Pilot Wire Receiver is engineered to meet the highest international standards for safety, reliability, and environmental responsibility:

Safety & EMC: Fully compliant with CE (RED/LVD/EMC) standards.
Environmental: Certified by RoHS, ensuring lead-free and eco-friendly manufacturing.
Quality Management: Produced in an ISO 9001:2015 and ISO 14001:2015 certified facility.

Looking for a deeply integrated solution? Discover how we can customize this receiver for your brand by exploring our Thermostat OEM & ODM Solutions.

Technical Specifications

Model	R06(FP)
Device Type	Pilot Wire WiFi Receiver Module
Power Supply	230Vac (50/60Hz)
Output Capacity	16A 230Vac output Standard FP (Fil Pilote) wire interface
Control Modes	Comfort, Comfort -1°C, Comfort -2°C, Eco, No Frost, Stop
Sensors	External NTC Temperature Probe
Communication	2.4GHz WiFi (Tuya Smart / Smart Life App)
User Interface	LED Status Indicators & Physical Button
Protection Class	IP20
Certifications	CE (RED/EMC/LVD), RoHS

Module Dimensions & Compact Design

The ultra-compact design ensures the module can be discreetly hidden within standard wall junction boxes or recessed connection compartments.

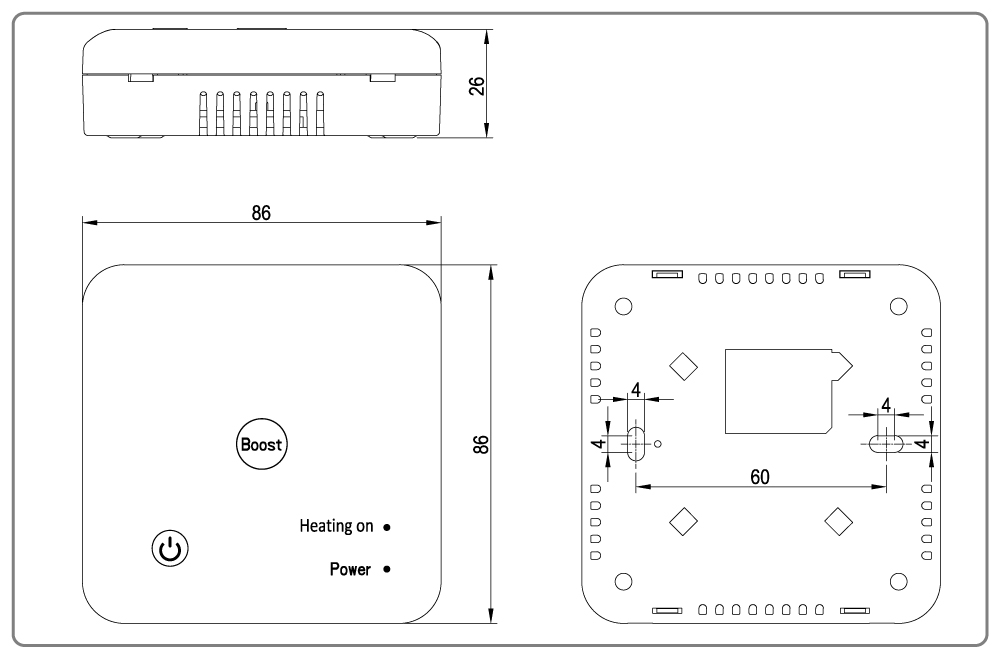

Detailed size drawing of the Fil Pilote wifi module

Frequently Asked Questions (French Market)

Q1: Is the R06(FP) compatible with French "Fil Pilote" standards?

A: Yes, absolutely. The R06(FP) is specifically engineered for the French electric heating market. It fully supports the standard 6-order (6 modes) Pilot Wire protocol used by major European electric radiator brands.

Q2: Why does this receiver use an external NTC sensor?

A: Electric radiators generate significant localized heat. If the sensor were built inside the module, it would read false high temperatures. The external NTC probe can be positioned optimally to measure the true ambient room temperature, ensuring superior comfort and energy efficiency.

Q3: Can the Tuya App be localized for French end-users?

A: Yes. The R06(FP) connects via the global Tuya IoT platform. The TuyaSmart and Smart Life apps automatically adapt to the user's smartphone language, providing a seamless, fully translated French interface for your local customers.

Q4: Does the receiver support 4-mode heaters as well?

A: Yes, the module is backward compatible. While it supports the advanced 6-mode system (Comfort, Comfort-1, Comfort-2, Eco, Anti-Frost, Stop), it functions perfectly with older 4-mode Fil Pilote electric heaters.

Q5: Do you offer OEM/ODM services for European distributors?

A: Yes, E-TOP Controls is a direct manufacturer with ISO 9001 certification. We provide comprehensive OEM/ODM services for the European B2B market, including custom logo printing, bespoke packaging, and specialized firmware adjustments for your brand.
