Multi-Zone Hydronic Heating: Master & Slave Thermostat Solution for Modern HVAC Integration

As global energy regulations become stricter, modern residential and commercial buildings require intelligent, multi-zone heating solutions rather than single-point thermostats. E-Top Controls’ Master + Slave Thermostat Solution, built around the powerful HT-CS03 centralized controller, delivers precise, scalable, and resilient climate control for hydronic underfloor heating, radiators, and fan coil systems.

Engineered for Complex Multi-Zone Hydronic Systems

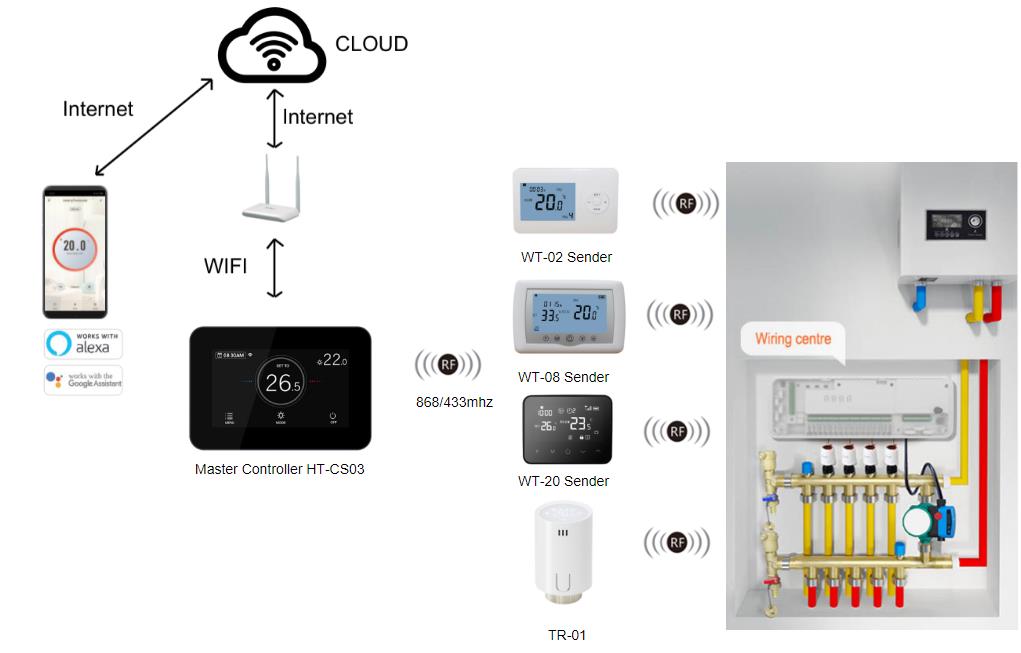

In large properties with multiple heating zones, a robust centralized architecture is essential. The E-Top Master-Slave solution acts as the intelligent core of the building’s HVAC system:

• Centralized Group Management: The elegant 4.3-inch capacitive TFT touchscreen HT-CS03 serves as the master controller, enabling unified monitoring and control of up to 5 independent heating zones.
• Scalable Slave Network: The master unit connects wirelessly to up to 8 slave room thermostats (WT-02, WT-08, WT-20 series) and thermostatic radiator valves via stable Sub-GHz RF communication.
• Precision Scheduling: Customize each zone with individual names (e.g., “Master Bedroom”, “Living Room”) and 7-day 4-period programmable schedules for maximum energy efficiency and comfort.

Unmatched Network Resilience – Local Control First

• The HT-CS03 uses 2.4GHz Wi-Fi for cloud connectivity (Tuya Smart Life / Amazon Alexa / Google Assistant), while all local master-slave communication operates on independent 868MHz or 433MHz Sub-GHz RF.
• Even during complete internet outages or router failures, the system continues to run pre-programmed schedules, maintain zone temperatures, and control wiring centre relays without interruption — protecting properties from frozen pipes and ensuring uninterrupted comfort.

Technical Specifications & Global Compliance

• Smart Features: Geofencing, Tuya Smart Life full integration, voice control (Alexa & Google)
• Network: Local Sub-GHz RF mesh (868/433MHz) + 2.4GHz Wi-Fi cloud bridge
• System Capacity: Supports multi-channel wiring centres, thermal actuators, and volt-free boiler interlocks
• Applications: Ideal for luxury villas, apartments, offices, and light commercial hydronic heating projects

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

Frequently Asked Questions

Q1: How does the master-slave solution improve energy efficiency?

A: By collecting real-time data from multiple room sensors instead of relying on a single thermostat, the system optimizes boiler operation, reduces short-cycling, and prevents over-heating in unused zones — significantly lowering energy consumption while meeting ErP and other energy directives.

Q2: Does the system stop working if Wi-Fi goes offline?

A: No. All core heating functions — including scheduled programs, room temperature control, and wiring centre operation — run locally via Sub-GHz RF communication. Cloud features are only needed for remote app access and voice control.

Q3: Is this system compatible with European and UK boilers and wiring centres?

A: Yes. E-Top’s solutions use universal volt-free relays and standard 230V/24V outputs, ensuring seamless integration with most combi-boilers, system boilers, and underfloor heating manifolds across Europe, the UK, and Middle East markets.
