Multi-Zone Hydronic Heating: Smart Gateway & Slave Thermostat Solution for Modern HVAC Integration

While premium multi-zone touchscreens offer localized control, mass-market residential projects and budget-conscious HVAC property developments often require a more streamlined approach. Eliminating prominent wall-mounted master screens in favor of central app management can significantly lower hardware costs without sacrificing system intelligence.

To address this demand, E-TOP Controls offers a highly efficient wireless gateway thermostat solution as part of our broader Heating Control Solutions. By replacing the traditional master thermostat with the compact EGW-01 WiFi & 868MHz/433MHz Smart Gateway, B2B brands can deploy a cost-effective, decentralized climate network.

Engineered for Budget-Optimized Multi-Zone Projects

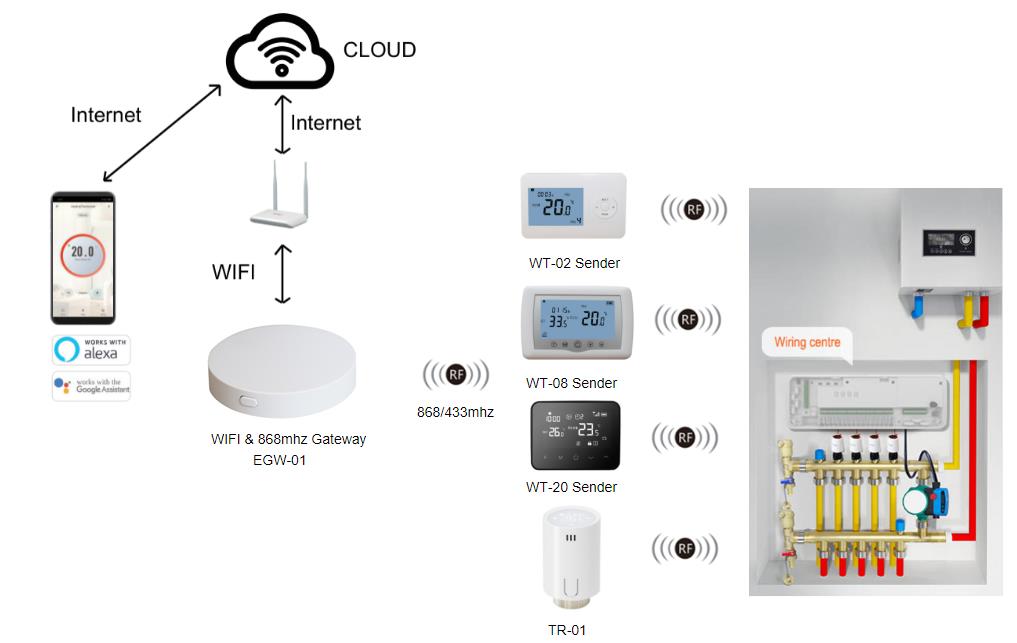

In apartments and multi-family housing, hardware budgets drive decisions. The E-TOP wireless gateway topology shifts the central interface from a fixed wall screen straight to the user’s smartphone:

• Cost-Efficient Centralization: The EGW-01 Gateway serves as the core of this smart thermostat solution, acting as the system's invisible hub, managing communication between multiple rooms and the central heating wiring centre at a fraction of the cost of premium touchscreen systems.
• Flexible Sub-Zone Pairing: The smart gateway pairs effortlessly via RF with up to 8 wireless room thermostats (such as the WT-02, WT-08, and WT-20 series) or smart thermostatic radiator valves (TR-01), creating an incredibly scalable ecosystem.

5 Core Values for Multi-Family & Smart Home Deployments

• App-Centric Remote Control: Fully compatible with Tuya Smart and Smart Life platforms. Users can configure individual room temperatures, adjust parameters, and track status remotely from any mobile device.
• Hands-Free Voice Automation: Seamless integration with Amazon Alexa and Google Assistant for modern, voice-activated climate management.
• Proximity Geofencing Intelligences: Automatically scales back boiler and underfloor loops based on smartphone location data to prevent heating empty properties.
• Custom Multi-Zone Grouping: Allows installers or landlords to group specific rooms (e.g., "Downstairs Loops," "Guest Rooms") within the app for swift, synchronized scheduling.
• 7-Day/4-Period Efficiency Schedules: Enables full weekly programming per zone, cutting down energy waste by restricting heating only to active hours.

Infrastructure Redundancy: Fail-Safe Local RF Network

For B2B sourcing partners evaluating a wireless thermostat solution, network reliability is paramount to avoiding expensive maintenance callbacks. A common concern is: What happens when the local broadband router crashes?

Our smart gateway features a Fail-Safe Offline Architecture. While remote app control requires an internet connection, the underlying RF 868MHz/433MHz mesh network between the EGW-01 gateway, sub-thermostats, and the underfloor wiring centre operates entirely independently. Scheduled programs and temperature controls will continue to run flawlessly offline, ensuring zero downtime and preventing frozen pipes.

Technical Specifications & Global Compliance

• Smart Hub: EGW-01 WiFi & RF Smart Thermostat Gateway (Tuya Ecosystem)
• Network Range: Robust 868MHz / 433MHz wireless local link
• System Capacity: Supports comprehensive wireless zone extensions & thermostatic radiator heads
• Compliance Ready: Full technical verification matching CE and RED directives for European deployment

Frequently Asked Questions (FAQ)

Q1: How does a gateway solution compare to a touchscreen master controller?

A: The wireless gateway solution offers the exact same multi-zone scheduling and app capabilities as a touchscreen master controller, but removes the physical, wall-mounted display. This makes it an ideal option for landlords who want to prevent tenants from tampering with physical controls, or for projects looking to minimize hardware budgets.

Q2: Can the EGW-01 gateway operate without an active internet connection?

A: Yes, for local operation. The sub-thermostats will continue to communicate with the wiring centre via the gateway's localized RF link to maintain set temperatures. However, an internet connection is required to make real-time adjustments via the mobile app or voice control.

Q3: Do you offer OEM casing customization for the gateway?

A: Absolutely. As a direct manufacturer, E-TOP provides comprehensive OEM/ODM services. We can customize the plastic casing colors, print your brand logo on the gateway shell, and create tailor-made retail packaging.
