Why 0-10V Modulating Control is Essential for Modern Fan Coil Units (FCU)

As we move into 2026, "decarbonization" and operational efficiency have shifted from optional goals to mandatory baseline requirements for commercial HVAC consultants. With the implementation of stricter ErP Tier 2 energy standards, traditional On/Off relay control is hitting a performance ceiling. The industry is rapidly migrating toward 0-10V modulating control—a solution that delivers the precise, proportional performance required for today’s high-performance green buildings.

The Limitations of Traditional On/Off Control

Most legacy FCU systems rely on basic binary (On/Off) thermostats. While cost-effective for simple builds, this approach introduces significant technical drawbacks:

• Aggressive Temperature Swings: The system operates at 100% capacity until the setpoint is hit, then cuts out entirely. This creates a "sawtooth" temperature curve with fluctuations often exceeding ±2°C.
• Inefficient Energy Cycles: Frequent full-power start-stop cycles prevent the system from settling into an efficient part-load state, leading to higher electricity bills.
• Mechanical Stress: Valves and fan motors experience constant "inrush current" and mechanical shock, which shortens the Mean Time Between Failures (MTBF).
• Acoustic Disruption: Sudden fan startups create disruptive noise spikes—a major complaint in noise-sensitive environments like luxury hotels and premium office spaces.

The Precision Advantages of 0-10V Modulating Control

Unlike binary systems, 0-10V modulating control (proportional control) sends a continuous, variable DC signal to valve actuators and EC fan motors. This allows the system to operate at any specific capacity from 0% to 100% to perfectly match the actual thermal load.

Key Engineering Benefits:

Dynamic Thermal Stability: By utilizing a PI (Proportional-Integral) loop, our controllers maintain room stability within a tight ±0.5°C tolerance, eliminating cold drafts.

Measurable Energy Savings: Modulating systems typically achieve 15% to 35% lower energy consumption in part-load conditions compared to traditional On/Off logic.

Whisper-Quiet Operation: Gradual ramp-up and ramp-down of fan speeds eliminate sudden noise spikes, making it the gold standard for hospital and hospitality projects.

BMS Ready: These systems integrate natively with BACnet MS/TP and Modbus RTU to provide precise 0-10V modulating outputs for valve and fan control.

E-Top’s 0-10V Modulating FCU Solutions

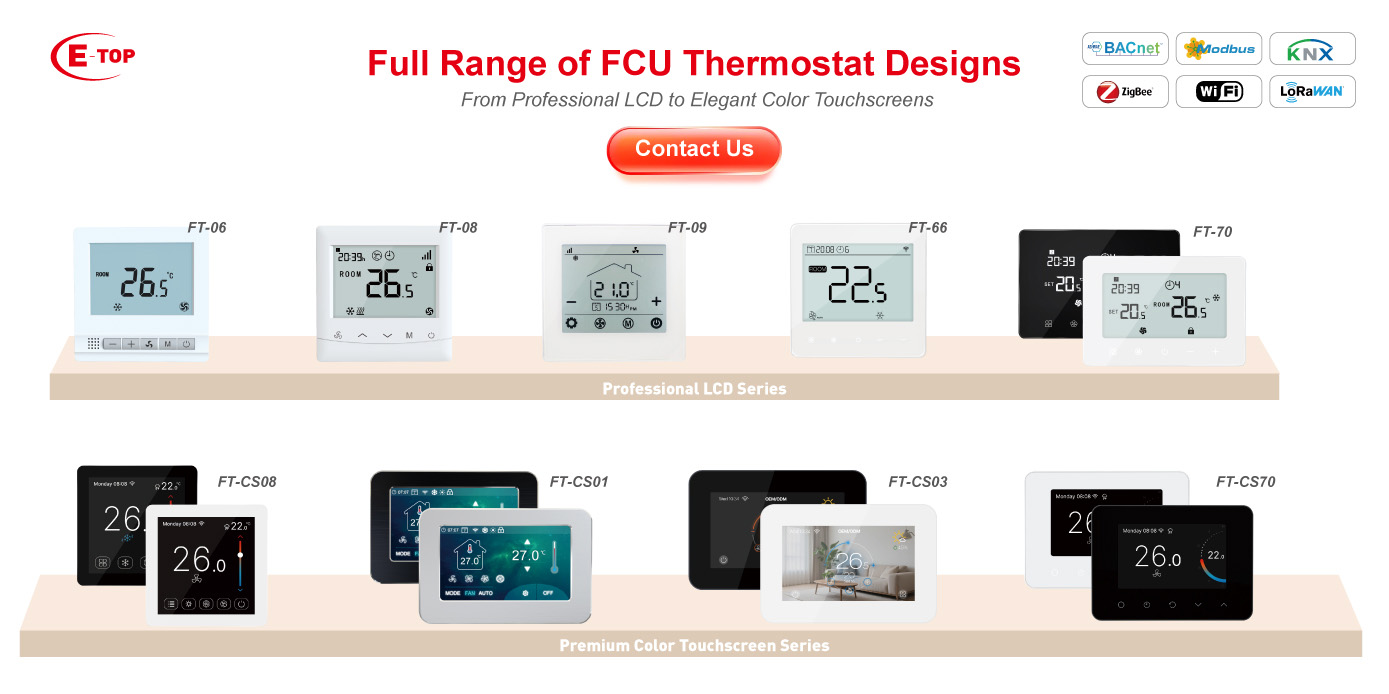

At E-Top Controls, we engineer field-proven 0-10V thermostats designed for high-stakes commercial environments. Our FT-08 Series and advanced Modulating models support:

Versatile Configurations: Full compatibility with 2-pipe and 4-pipe FCU systems.

Independent Dual Outputs: Precise 0-10V signals for both the modulating valve and the EC fan motor.

High Impedance Design: Optimized signal integrity to ensure zero interference over long wiring runs in large-scale retrofits.

Flexible Power: Available in 24V for project safety or 95-240V for direct replacement.

Whether you are retrofitting an aging landmark or designing a LEED-certified complex, E-Top’s 0-10V solutions provide the granular control necessary for 2026 HVAC standards.
